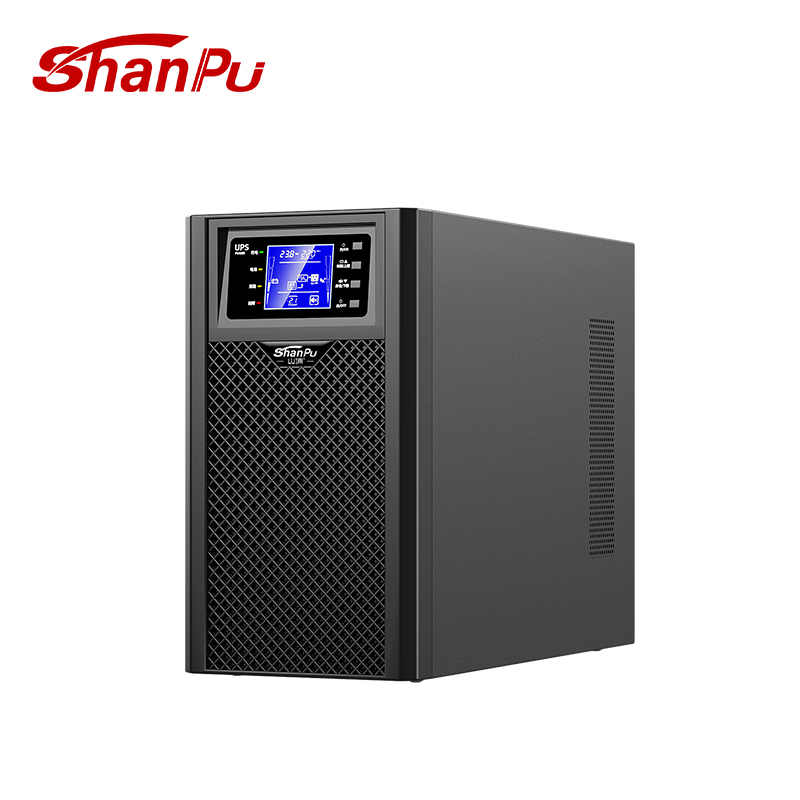

Lithium battery online UPS
FUNCTIONS:
- Real-time Dual Conversion
- Microprocessor control ensures high reliability
- Power factor up to 1.0
- Wide input voltage range(110V-300V)
- Outputsine wave,compatible with generators
- OptionalSNMP card forindependent or seamless monitoring with RS232
- Overview
- Recommended Products

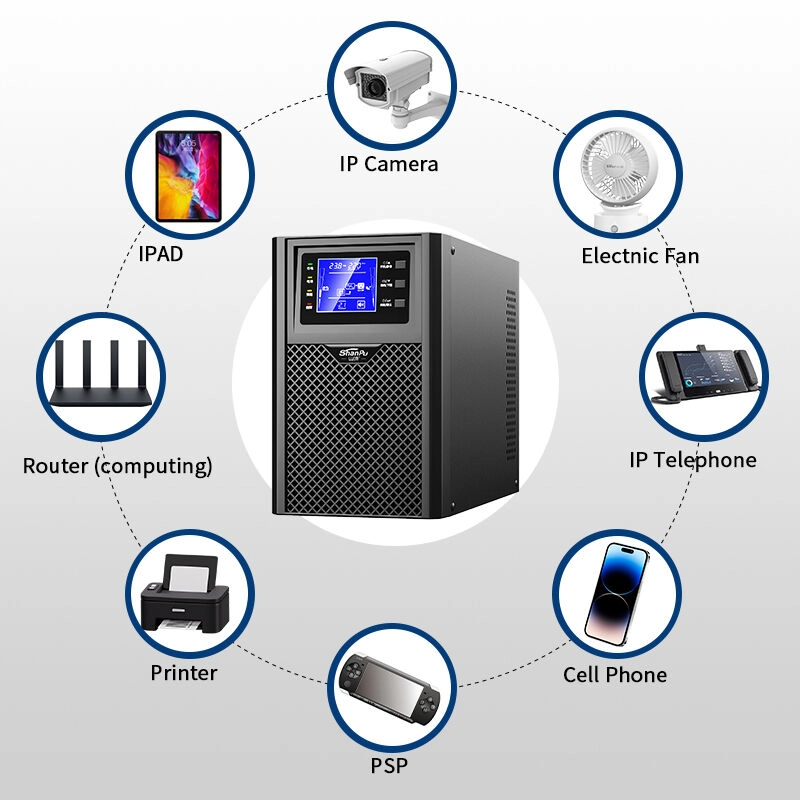

APPLICATIONS FIELDS:
Widely used in network management centers and computers, banks, securitiestaxation, communications, postal services, radio and television, public security,transportation, electric power, medical, industrial control, national defense and otherimportant data fields.`
Products specifications:
| Model | LD1K(S) | |
| Installation method | Tower type UPS | |
| Main topology | L+N+PE | |
| Capacity | 1KVA/1000W | |
| Input | ||
| Input voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| Voltage range | 110-300VAC、110-176VAC、280~300VAC | |
| Input frequency | 44~56Hzor 54~66Hz | |
| Power factor | ≥0.999 | |
| Output | ||
| Main topology | L+N+PE | |
| Output voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| AC voltage regulation | ±1% | |
| Frequency (synchronous range) | 44~56Hzor 54~66Hz | |
| Factor | 0.9/1.0 | |
| Waveform balance | ≤3%THD(Linear load ≤6%THD(Nonlinear load |
|
| Transfer time | 0ms | |
| Output waveform | Pure Sine Wave | |
|
Overlord Capacity |
Line Mode: 30min@102%-110% Load 10min@110%-130% Load 30s@130%~150% Load 200ms@>150% Load |
|
|
Battery Mode: 1min@102%-110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load |
||
| Efficiency | ||
| Mains power mode | 94.5% | |
| Battery mode | 87.5% | |
| Communication and Management | ||
| Communication interface | RS232/USB/AS400/RS485/SNMP | |
| Control panel | Multi functional LCD, status and display console | |
| Standard UPS | ||
|
Standard UPS battery |
Battery type | LiFePO4 |
| Charging current | 1-8A(adjustable) | |
| Battery voltage | 24/36/48VDC | |
| Battery capacity | 500WH | |
| BMS Protective board | >50A | |
| Is the battery pack optional | YES | |
|
Machine data |
Size(MM) | 280*148*220 |
| Weight (KG) | 7.45 | |
| Extemal battery UPS | ||
|
External battery UPS |
Battery type | LiFePO4 |
| Charging current | 1-8A(adjustable) | |
| Battery voltage | 24/36/48VDC | |
|
Machine data |
Size (MM) | 280*148*220 |
| Weight (KG) | 5 | |
| Environment | ||
| Operating humidity | 20%~95%(No condensing) | |
| Relative temperature | -25-55℃C | |
|
Maximum noise level at full load (at 1m) |
<50dBA@1M | |
Products specifications:
| Model | LD2K(S) | |
| Installation method | Tower type UPS | |
| Main topology | L+N+PE | |
| Capacity | 2KVA/2000W | |
| Input | ||
| Input voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| Voltage range | 110-300VAC、110-176VAC、280~300VAC | |
| Input frequency | 44~56Hzor 54~66Hz | |
| Power factor | ≥0.999 | |
| Output | ||
| Main topology | L+N+PE | |
| Output voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| AC voltage regulation | ±1% | |
| Frequency (synchronous range) | 44~56Hzor 54~66Hz | |
| Factor | 0.9/1.0 | |
| Waveform balance | ≤3%THD(Linear load ≤6%THD(Nonlinear load |
|
| Transfer time | 0ms | |
| Output waveform | Pure Sine Wave | |
|
Overlord Capacity |
Line Mode: 30min@102%-110% Load 10min@110%-130% Load 30s@130%~150% Load 200ms@>150% Load |
|
|
Battery Mode: 1min@102%-110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load |
||
| Efficiency | ||
| Mains power mode | 95.5% | |
| Battery mode | 89.5% | |
| Communication and Management | ||
| Communication interface | RS232/USB/AS400/RS485/SNMP | |
| Control panel | Multi functional LCD, status and display console | |
| Standard UPS | ||
|
Standard UPS battery |
Battery type | LiFePO4 |
| Charging current | 1-8A(adjustable) | |
| Battery voltage | 48VDC | |
| Battery capacity | 700WH | |
| BMS Protective board | >50A | |
| Is the battery pack optional | YES | |
|
Machine data |
Size(MM) | 390*148*220 |
| Weight (KG) | 11.3 | |
| Extemal battery UPS | ||
|
External battery UPS |
Battery type | LiFePO4 |
| Charging current | 1-8A(adjustable) | |
| Battery voltage | 48/72VDC | |
|
Machine data |
Size (MM) | 390*148*220 |
| Weight (KG) | 7 | |
| Environment | ||
| Operating humidity | 20%~95%(No condensing) | |
| Relative temperature | -25-55℃C | |
|
Maximum noise level at full load (at 1m) |
<50dBA@1M | |
Products specifications:
| Model | LD3K(S) | |
| Installation method | Tower type UPS | |
| Main topology | L+N+PE | |
| Capacity | 3KVA/3000W | |
| Input | ||
| Input voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| Voltage range | 110-300VAC、110-176VAC、280~300VAC | |
| Input frequency | 44~56Hzor 54~66Hz | |
| Power factor | ≥0.999 | |
| Output | ||
| Main topology | L+N+PE | |
| Output voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| AC voltage regulation | ±1% | |
| Frequency (synchronous range) | 44~56Hzor 54~66Hz | |
| Factor | 0.9/1.0 | |
| Waveform balance | ≤3%THD(Linear load ≤6%THD(Nonlinear load |
|
| Transfer time | 0ms | |
| Output waveform | Pure Sine Wave | |
|
Overlord Capacity |
Line Mode: 30min@102%-110% Load 10min@110%-130% Load 30s@130%~150% Load 200ms@>150% Load |
|
|
Battery Mode: 1min@102%-110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load |
||
| Efficiency | ||
| Mains power mode | 95.5% | |
| Battery mode | 91.5% | |
| Communication and Management | ||
| Communication interface | RS232/USB/AS400/RS485/SNMP | |
| Control panel | Multi functional LCD, status and display console | |
| Standard UPS | ||
|
Standard UPS battery |
Battery type | LiFePO4 |
| Charging current | 1-8A(adjustable) | |
| Battery voltage | 48VDC | |
| Battery capacity | 960WH | |
| BMS Protective board | >60A | |
| Is the battery pack optional | YES | |
|
Machine data |
Size(MM) | 425*192*320 |
| Weight (KG) | 15.5 | |
| Extemal battery UPS | ||
|
External battery UPS |
Battery type | LiFePO4 |
| Charging current | 1-8A(adjustable) | |
| Battery voltage | 48/72/96VDC | |
|
Machine data |
Size (MM) | 425*192*320 |
| Weight (KG) | 11 | |
| Environment | ||
| Operating humidity | 20%~95%(No condensing) | |
| Relative temperature | -25-55℃C | |
|
Maximum noise level at full load (at 1m) |
<50dBA@1M | |
