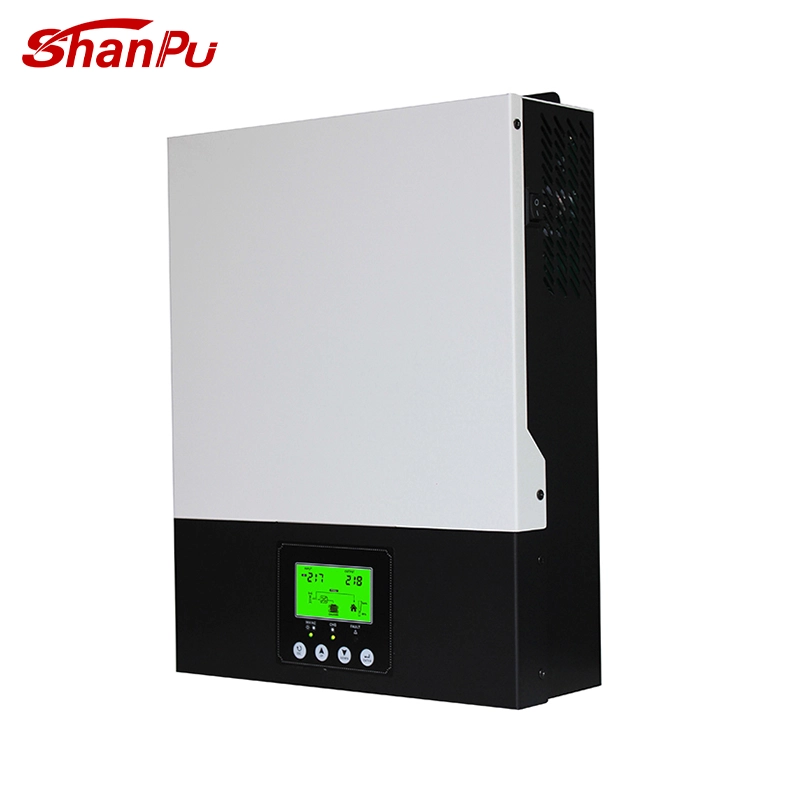

SC-PU 1.5K/3K
Function:
-
Off-grid inverter, support mains and photovoltaic solartwo input
-
DPS digital control technology, double transformonline design, using input PFC technology, inputpower up to 0.99, efficient inverter topology, higheroutput efficiency
-
The battery equalization function optimizes batteryperformance for higher energy storage efficiency.
-
Mains/pv/battery/multimode optimal output
-
Support battery cold start
-
Built-in dust-proof net suite, suitable for badenvironment
- Support for WIFI communication (optional)
- Overview
- Recommended Products
P
Product parameters:
|
Model
|
SC-PU 1.5K |
|
Rated power
|
1500VA
|
|
Ac input
|
|
|
voltage
|
230VAC
|
|
Voltage range
|
170-280Vac(Suitable for personal computers）
90-280Vac(Suitable for household appliances）
|
|
Frequency range
|
50 Hz/60 Hz
|
|
Pv input
|
|
|
Maximum photovoltaic array power
|
2000W
|
|
The largest photovoltaic array open-circuit voltage
|
450VDC
|
|
MPPT @ working voltage range
|
90VDC-430VDC
|
|
The rated voltage
|
240V
|
|
Number of MPPT
|
1 |
|
Output parameters
|
|
|
PV/battery model
|
|
|
voltage
|
230V±5%
|
|
frequency
|
50HZ
|
|
efficiency
|
91%
|
|
Maximum output power
|
1500W
|
|
Conversion time
|
10ms（Typical UPS），20ms（Household appliance）
|
|
harmonic
|
3%
|
|
Overload capacity
|
5s@≥150%load;10s@110%-150%load
|
|
The utility model
|
|
|
voltage
|
230Vac±5%
|
|
frequency
|
50HZ
|
|
efficiency
|
95%
|
|
battery
|
|
|
Battery voltage
|
12V
|
|
Charging mode
|
A three-stage charging
|
|
Maximum charging current (MPPT)
|
60A
|
|
Maximum charging current
|
60A
|
|
Cold start voltagez
|
11.5V
|
|
The battery type
|
Lead acid and lithium electricity
|
|
Protection function
|
Output short circuit overload over
temperature protection, and other functions
|
|
Communication port
|
Rs232
|
|
The work environment
|
|
|
Working temperature
|
-10℃-50℃
|
|
Storage temperature
|
-15℃-60℃
|
|
Relative humidity
|
5%-95%
|
|
physical
|
|
|
Size (D/W/H)
|
95x270x348mm
|
|
Net weight (KG)
|
4
|
Product parameters:
|
Model
|
SC-PU 3K |
|
Rated power
|
3000VA
|
|
Ac input
|
|
|
voltage
|
230VAC
|
|
Voltage range
|
170-280Vac(Suitable for personal computers）
90-280Vac(Suitable for household appliances）
|
|
Frequency range
|
50 Hz/60 Hz
|
|
Pv input
|
|
|
Maximum photovoltaic array power
|
3000W
|
|
The largest photovoltaic array open-circuit voltage
|
450VDC
|
|
MPPT @ working voltage range
|
90VDC-430VDC
|
|
The rated voltage
|
240V
|
|
Number of MPPT
|
1 |
|
Output parameters
|
|
|
PV/battery model
|
|
|
voltage
|
230V±5%
|
|
frequency
|
50HZ
|
|
efficiency
|
91%
|
|
Maximum output power
|
3000W
|
|
Conversion time
|
10ms（Typical UPS），20ms（Household appliance）
|
|
harmonic
|
3%
|
|
Overload capacity
|
5s@≥150%load;10s@110%-150%load
|
|
The utility model
|
|
|
voltage
|
230Vac±5%
|
|
frequency
|
50HZ
|
|
efficiency
|
95%
|
|
battery
|
|
|
Battery voltage
|
24V
|
|
Charging mode
|
A three-stage charging
|
|
Maximum charging current (MPPT)
|
60A
|
|
Maximum charging current
|
60A
|
|
Cold start voltagez
|
23V
|
|
The battery type
|
Lead acid and lithium electricity
|
|
Protection function
|
Output short circuit overload over
temperature protection, and other functions
|
|
Communication port
|
Rs232
|
|
The work environment
|
|
|
Working temperature
|
-10℃-50℃
|
|
Storage temperature
|
-15℃-60℃
|
|
Relative humidity
|
5%-95%
|
|
physical
|
|
|
Size (D/W/H)
|
95x270x348mm
|
|
Net weight (KG)
|
5
|
