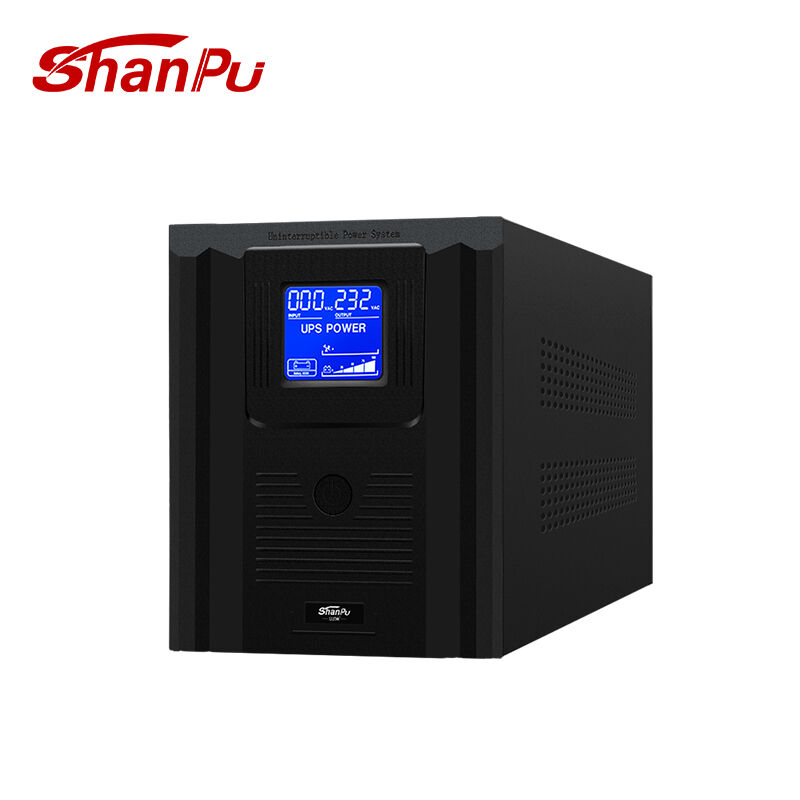

BT500VA-3000VA(LCD) UPS
-
Small and delicate
-
Wide input voltage range
-
Excellent microprocessor ensures operation
-
Automatic voltage regulation
-
Automatic restart function for utility power
- Simulated sine wave
- Overview
- Recommended Products
Application:
The BT500VA 600VA 1000VA 2000VA 3000VA(LCD) series is expertly designed to meet the power requirements of LCD displays, ensuring stable and uninterrupted operations. These power supplies feature advanced voltage regulation technology, delivering consistent power to prevent image distortion and flickering. With built - in over - voltage, over - current, and short - circuit protection, they safeguard LCD equipment from electrical surges and potential damage. Ideal for use in digital signage, office monitors, and large - scale LCD video walls, the BT500VA - 3000VA(LCD) series provides reliable power support for optimal display performance.
Product parameters:
| Model | BT500 | |
| capacity | 500VA/300W | |
| Input | ||
| Input voltage | 1 10/120/200/220/230/240vac | |
| Input voltage range | 140 -280V | |
| Input frequency | 50±HZ | |
| output | ||
| BattEry voltage | 1 10/120/200/220/230/240vac | |
| output voltage range | ±10% | |
| output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Battery | ||
|
Standard UPS |
Battery voltage | |
| Battery model | ||
| Battery quantity | ||
| charging time | 10- 1690% 10 - 16 Hours to 90% full capacity | |
| Model | BT500 | |
| External battery Ups | BattEry voltage | 12V |
| Battery model | External battEry | |
| Battery quantity | ||
| charging time | Depends on the external battery capacity | |
| Display description | ||
| Display status | LCD | |
| protection function | Automatic detection and discharge protection, input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | 4 Beep every 4 seconds | |
| Low battery | Beep every second | |
| overload | Beep every second | |
| Error | continuous Beep | |
| Physical property | ||
|
stardard Ups |
size (MM) | |
| WEight(KG) | ||
|
External battery Ups |
size (MM) | 320*90* 140 |
| weight(KG) | 3.5 | |
|
Usage environment |
||
|
Humidity |
0-90%0-40℃ 0 -90% Humidity and 0-40 ℃ Temperature |
|
|
Noise |
<40db | |
Product parameters:
| Model | BT600 | |
| capacity | 600VA/360W | |
| Input | ||
| Input voltage | 1 10/120/200/220/230/240vac | |
| Input voltage range | 140 -280V | |
| Input frequency | 50±HZ | |
| output | ||
| BattEry voltage | 1 10/120/200/220/230/240vac | |
| output voltage range | ±10% | |
| output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Battery | ||
|
Standard UPS |
Battery voltage | 12V |
| Battery model | 12V/7AH | |
| Battery quantity | ||
| charging time | 10- 1690% 10 - 16 Hours to 90% full capacity | |
| Model | BT600(S) | |
| External battery Ups | BattEry voltage | 12V |
| Battery model | External battEry | |
| Battery quantity | ||
| charging time | Depends on the external battery capacity | |
| Display description | ||
| Display status | LCD | |
| protection function | Automatic detection and discharge protection, input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | 4 Beep every 4 seconds | |
| Low battery | Beep every second | |
| overload | Beep every second | |
| Error | continuous Beep | |
| Physical property | ||
|
stardard Ups |
size (MM) | 320*90* 140 |
| WEight(KG) | 5.1 | |
|
External battery Ups |
size (MM) | |
| weight(KG) | ||
|
Usage environment |
||
|
Humidity |
0-90%0-40℃ 0 -90% Humidity and 0-40 ℃ Temperature |
|
|
Noise |
<40db | |
Product parameters:
| Model | BT1000 | |
| capacity | 1KVA/600W | |
| Input | ||
| Input voltage | 1 10/120/200/220/230/240vac | |
| Input voltage range | 140 -280V | |
| Input frequency | 50±HZ | |
| output | ||
| BattEry voltage | 1 10/120/200/220/230/240vac | |
| output voltage range | ±10% | |
| output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Battery | ||
|
Standard UPS |
Battery voltage | 24V |
| Battery model | 12V/9AH | |
| Battery quantity | ||
| charging time | 10- 1690% 10 - 16 Hours to 90% full capacity | |
| Model | BT1000(S) | |
| External battery Ups | BattEry voltage | 24V |
| Battery model | External battEry | |
| Battery quantity | ||
| charging time | Depends on the external battery capacity | |
| Display description | ||
| Display status | LCD | |
| protection function | Automatic detection and discharge protection, input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | 4 Beep every 4 seconds | |
| Low battery | Beep every second | |
| overload | Beep every second | |
| Error | continuous Beep | |
| Physical property | ||
|
stardard Ups |
size (MM) | 365* 140* 165 |
| WEight(KG) | 5.7 | |
|
External battery Ups |
size (MM) | 365* 140* 165 |
| weight(KG) | 4.2 | |
|
Usage environment |
||
|
Humidity |
0-90%0-40℃ 0 -90% Humidity and 0-40 ℃ Temperature |
|
|
Noise |
<40db | |
Product parameters:
| Model | BT2000 | |
| capacity | 2KVA/1200W | |
| Input | ||
| Input voltage | 1 10/120/200/220/230/240vac | |
| Input voltage range | 140 -280V | |
| Input frequency | 50±HZ | |
| output | ||
| BattEry voltage | 1 10/120/200/220/230/240vac | |
| output voltage range | ±10% | |
| output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Battery | ||
|
Standard UPS |
Battery voltage | 24V |
| Battery model | 12V/9AH | |
| Battery quantity | 2 | |
| charging time | 10- 1690% 10 - 16 Hours to 90% full capacity | |
| Model | BT2000(S) | |
| External battery Ups | BattEry voltage | 24V |
| Battery model | External battEry | |
| Battery quantity | ||
| charging time | Depends on the external battery capacity | |
| Display description | ||
| Display status | LCD | |
| protection function | Automatic detection and discharge protection, input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | 4 Beep every 4 seconds | |
| Low battery | Beep every second | |
| overload | Beep every second | |
| Error | continuous Beep | |
| Physical property | ||
|
stardard Ups |
size (MM) | 365* 140* 1 65 |
| WEight(KG) | 12.6 | |
|
External battery Ups |
size (MM) | 395* 145*21 0 |
| weight(KG) | 10.2 | |
|
Usage environment |
||
|
Humidity |
0-90%0-40℃ 0 -90% Humidity and 0-40 ℃ Temperature |
|
|
Noise |
<40db | |
Product parameters:
| Model | BT3000 | |
| capacity | 3KVA/1800W | |
| Input | ||
| Input voltage | 1 10/120/200/220/230/240vac | |
| Input voltage range | 140 -280V | |
| Input frequency | 50±HZ | |
| output | ||
| BattEry voltage | 1 10/120/200/220/230/240vac | |
| output voltage range | ±10% | |
| output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Battery | ||
|
Standard UPS |
Battery voltage | 24V |
| Battery model | 12V/9AH | |
| Battery quantity | 4 | |
| charging time | 10- 1690% 10 - 16 Hours to 90% full capacity | |
| Model | BT3000(S) | |
| External battery Ups | BattEry voltage | 24V |
| Battery model | External battEry | |
| Battery quantity | ||
| charging time | Depends on the external battery capacity | |
| Display description | ||
| Display status | LCD | |
| protection function | Automatic detection and discharge protection, input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | 4 Beep every 4 seconds | |
| Low battery | Beep every second | |
| overload | Beep every second | |
| Error | continuous Beep | |
| Physical property | ||
|
stardard Ups |
size (MM) | 395* 145*210 |
| WEight(KG) | 21 | |
|
External battery Ups |
size (MM) | 395* 145*21 0 |
| weight(KG) | 13.7 | |
|
Usage environment |
||
|
Humidity |
0-90%0-40℃ 0 -90% Humidity and 0-40 ℃ Temperature |
|
|
Noise |
<40db | |
