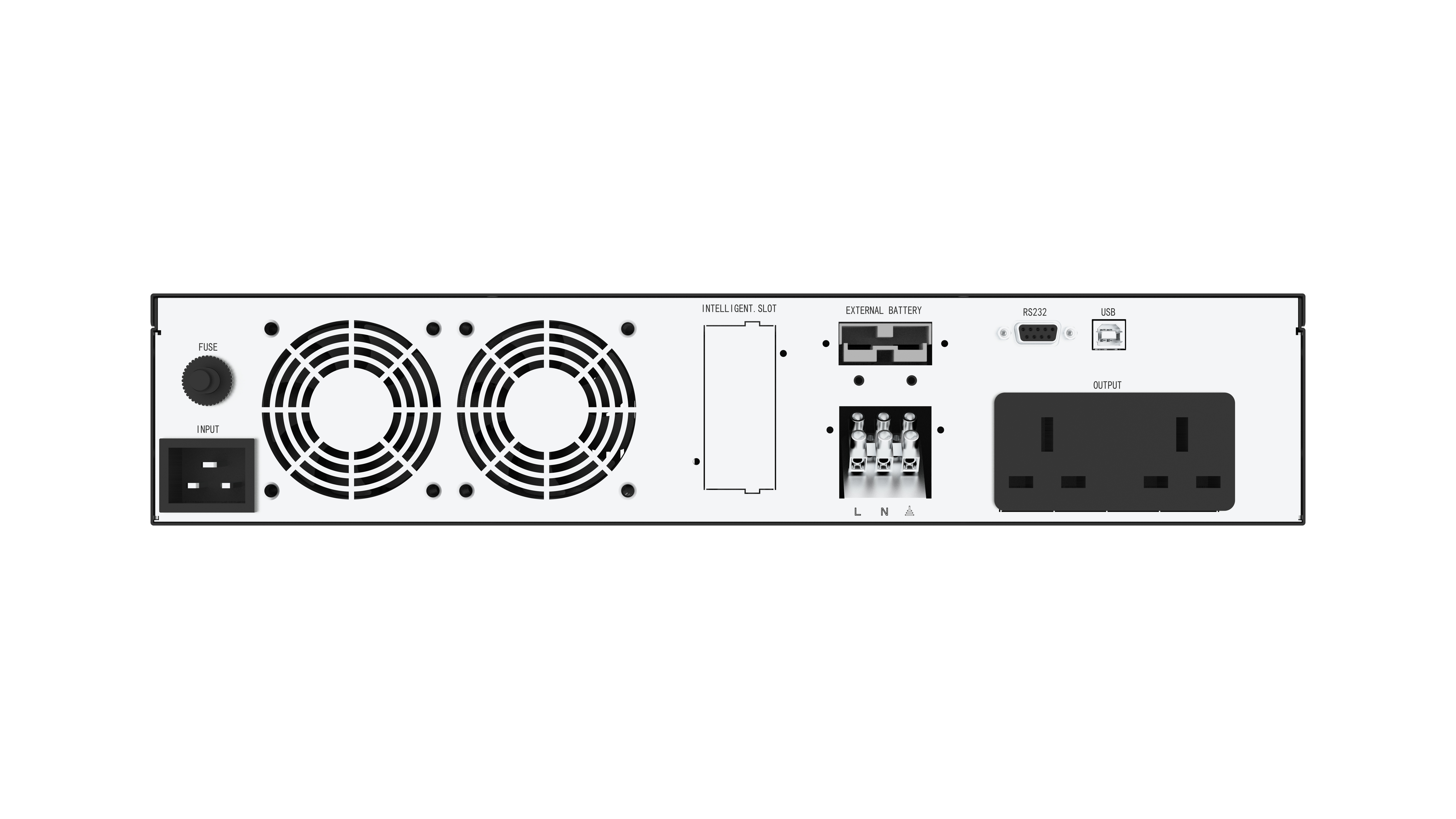

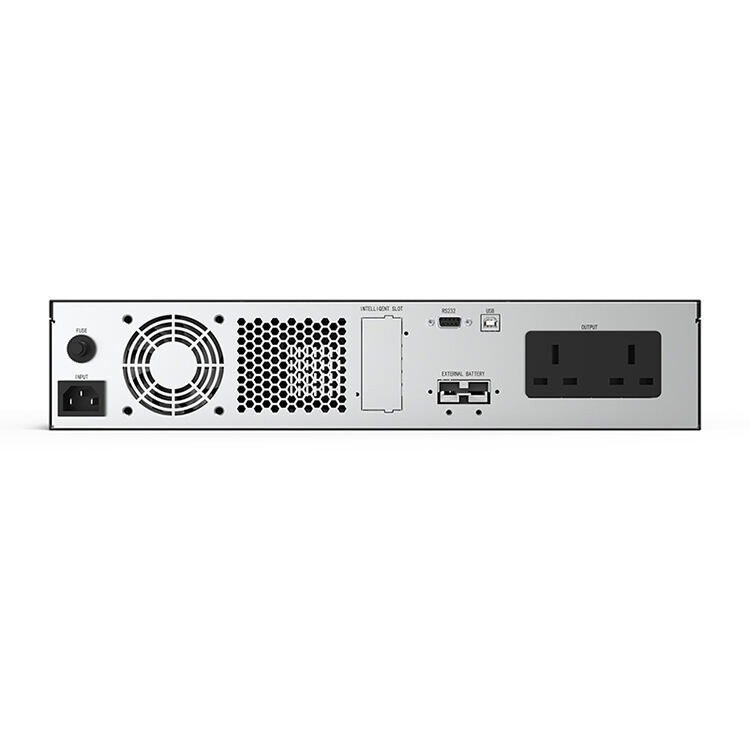

Lithium battery rack mounted UPS
FUNCTIONS:
- Truly achieve online double conversion
- Microprocessorcontrolensures high reliability
- Input power factor correction
- Outputpower factor up to 1.0
- Wide utilityinput range(110V-300V)
- Efficientfrequency conversion mode
- Compatible with generators
- External battery ups charging current up to 6A
- Overview
- Recommended Products
APPLICATIONS:
Introduce our lithium battery rack mounted UPS series, with capacities ranging from 1KVA to 3KVA. These UPS systems are designed specifically for server rooms, data centers, and network cabinets, and can be seamlessly integrated into standard 19 inch racks. With functions such as automatic voltage regulation, surge protection, and long battery operation time, they ensure continuous power supply during power outages, protecting critical equipment and data from unexpected interruptions.
Products specifications:
| Model | LD1KR(S) | |
| Installation method | Rack-mount | |
| Main topology | L+N+PE | |
| Capacity | 1KVA/1000W | |
| Input | ||
| Input voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| Voltage range | 110-300VAC、110-176VAC、280~300VAC | |
| Input frequency | 44~56Hzor 54~66Hz | |
| Power factor | ≥0.999 | |
| Output | ||
| Main topology | L+N+PE | |
| Output voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| Voltage range (battery mode) | ±1% | |
| Frequency (synchronous range) | 44~56Hzor 54~66Hz | |
| Factor | 0.9/1.0 | |
| Waveform balance | ≤3%THD(Linear load ≤6%THD(Nonlinear load |
|
| Transfer time | 0ms | |
| Output waveform | Pure Sine Wave | |
|
Overlord Capacity |
Line Mode: 30min@102%-110% Load 10min@110%-130% Load 30s@130%~150% Load 200ms@>150% Load |
|
|
Battery Mode: 1min@102%-110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load |
||
| Efficiency | ||
| Mains power mode | 94.5% | |
| Battery mode | 87.5% | |
| Communication and Management | ||
| Communication interface | RS232/USB/AS400/RS485/SNMP | |
| Control panel | Multi functional LCD, status and display console | |
| Standard UPS | ||
|
Standard UPS battery |
Battery type | LiFePO4 |
| Charging current | 1-8A(adjustable) | |
| Battery voltage | 24/36/48VDC | |
| Battery capacity | 960WH | |
| BMS Protective board | >50A | |
| Is the battery pack optional | YES | |
|
Machine data |
Size(MM) | 380*438*88[2U] |
| Weight (KG) | 11.2 | |
| Extemal battery UPS | ||
|
External battery UPS |
Battery type | LiFePO4 |
| Charging current | 1-12A(adjustable) | |
| Battery voltage | 24/36/48VDC | |
|
Machine data |
Size (MM) | 380*438*88[2U] |
| Weight (KG) | 5.6 | |
| Environment | ||
| Operating humidity | 20%~95%(No condensing) | |
| Relative temperature | -25-55℃C | |
|
Maximum noise level at full load (at 1m) |
<50dBA@1M | |
Products specifications:
| Model | LD2KR(S) | |
| Installation method | Rack-mount | |
| Main topology | L+N+PE | |
| Capacity | 2KVA/2000W | |
| Input | ||
| Input voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| Voltage range | 110-300VAC、110-176VAC、280~300VAC | |
| Input frequency | 44~56Hzor 54~66Hz | |
| Power factor | ≥0.999 | |
| Output | ||
| Main topology | L+N+PE | |
| Output voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| Voltage range (battery mode) | ±1% | |
| Frequency (synchronous range) | 44~56Hzor 54~66Hz | |
| Factor | 0.9/1.0 | |
| Waveform balance | ≤3%THD(Linear load ≤6%THD(Nonlinear load |
|
| Transfer time | 0ms | |
| Output waveform | Pure Sine Wave | |
|
Overlord Capacity |
Line Mode: 30min@102%-110% Load 10min@110%-130% Load 30s@130%~150% Load 200ms@>150% Load |
|
|
Battery Mode: 1min@102%-110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load |
||
| Efficiency | ||
| Mains power mode | 95.5% | |
| Battery mode | 89.5% | |
| Communication and Management | ||
| Communication interface | RS232/USB/AS400/RS485/SNMP | |
| Control panel | Multi functional LCD, status and display console | |
| Standard UPS | ||
|
Standard UPS battery |
Battery type | LiFePO4 |
| Charging current | 1-8A(adjustable) | |
| Battery voltage | 48VDC | |
| Battery capacity | 960WH | |
| BMS Protective board | >50A | |
| Is the battery pack optional | YES | |
|
Machine data |
Size(MM) | 380*438*88[2U] |
| Weight (KG) | 14.2 | |
| Extemal battery UPS | ||
|
External battery UPS |
Battery type | LiFePO4 |
| Charging current | 1-12A(adjustable) | |
| Battery voltage | 48/72VDC | |
|
Machine data |
Size (MM) | 380*438*88[2U] |
| Weight (KG) | 8.6 | |
| Environment | ||
| Operating humidity | 20%~95%(No condensing) | |
| Relative temperature | -25-55℃C | |
|
Maximum noise level at full load (at 1m) |
<50dBA@1M | |
Products specifications:
| Model | LD3KR(S) | |
| Installation method | Rack-mount | |
| Main topology | L+N+PE | |
| Capacity | 3KVA/3000W | |
| Input | ||
| Input voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| Voltage range | 110-300VAC、110-176VAC、280~300VAC | |
| Input frequency | 44~56Hzor 54~66Hz | |
| Power factor | ≥0.999 | |
| Output | ||
| Main topology | L+N+PE | |
| Output voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |
| Voltage range (battery mode) | ±1% | |
| Frequency (synchronous range) | 44~56Hzor 54~66Hz | |
| Factor | 0.9/1.0 | |
| Waveform balance | ≤3%THD(Linear load ≤6%THD(Nonlinear load |
|
| Transfer time | 0ms | |
| Output waveform | Pure Sine Wave | |
|
Overlord Capacity |
Line Mode: 30min@102%-110% Load 10min@110%-130% Load 30s@130%~150% Load 200ms@>150% Load |
|
|
Battery Mode: 1min@102%-110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load |
||
| Efficiency | ||
| Mains power mode | 95.5% | |
| Battery mode | 91.5% | |
| Communication and Management | ||
| Communication interface | RS232/USB/AS400/RS485/SNMP | |
| Control panel | Multi functional LCD, status and display console | |
| Standard UPS | ||
|
Standard UPS battery |
Battery type | LiFePO4 |
| Charging current | 1-8A(adjustable) | |
| Battery voltage | 48VDC | |
| Battery capacity | 960WH | |
| BMS Protective board | >60A | |
| Is the battery pack optional | YES | |
|
Machine data |
Size(MM) | 380*438*88[2U] |
| Weight (KG) | 14.5 | |
| Extemal battery UPS | ||
|
External battery UPS |
Battery type | LiFePO4 |
| Charging current | 1-12A(adjustable) | |
| Battery voltage | 48/72/96VDC | |
|
Machine data |
Size (MM) | 380*438*88[2U] |
| Weight (KG) | 8.9 | |
| Environment | ||
| Operating humidity | 20%~95%(No condensing) | |
| Relative temperature | -25-55℃C | |
|
Maximum noise level at full load (at 1m) |
<50dBA@1M | |
