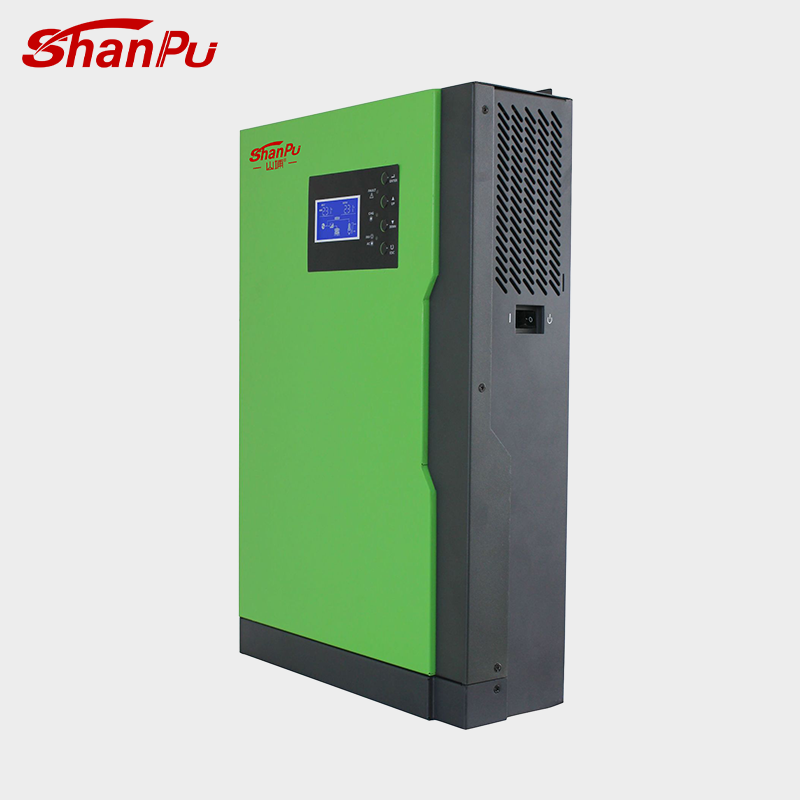

SC-PU 3.5K/5.5K
Product Features:
- Off-grid inverter, support mains and photovoltaic solar two input.
- DPS digital control technology, double transform online design, using input PFC technology, input power up to 0.99, efficient inverter topology, higher output efficiency
- The battery equalization function optimizes battery performance for higher energy storage efficiency
- Mains/pv/battery/multimode optimal output
- Support battery cold start
- Support external WIFI module, can use mobile APP remote monitoring (optional)
- Built-in dust-proof net suite, suitable for bad environment
- Overview
- Recommended Products
Product parameters:
| Model | SC-PU 3.5K |
| Rated power | 3500VA |
| Ac input | |
| Voltage | 230VAC |
| Voltage range |
170-280Vac(Suitable for personal computers） 90-280Vac(Suitable for household appliances） |
| Frequency range | 50 Hz/60 Hz |
| Pv input | |
| Maximum photovoltaic array power | 5000W |
| The largest photovoltaic array open-circuit voltage | 500VDC |
| MPPT @ working voltage range | 120VDC-450VDC |
| The rated voltage | 240V |
| Number of MPPT | 1 |
| Output parameters | |
| PV/battery model | |
| Voltage | 230V±5% |
| Frequency | 50/60HZ |
| Efficiency | 93% |
| Maximum output power | 3500W |
| Conversion time | 10ms（Typical UPS），20ms（Household appliance） |
| Harmonic | 3% |
| Overload capacity | 5s@≥150%load;10s@110%-150%load |
| The utility model | |
| Voltage | 230Vac±5% |
| Frequency | 50HZ |
| Efficiency | 95% |
| Battery | |
| Battery voltage | 24V |
| Charging mode | A three-stage charging |
| Maximum charging current (MPPT) | 80A |
| Maximum charging current | 80A |
| Maximum charging current | 100A |
| Cold start voltagez | 23V |
| The battery type | Lead acid and lithium electricity |
| Protection function | Output short circuit overload over temperature protection, and other functions |
| Communication port | RS232,USB |
| The work environment |
|
| Working temperature | -10℃-50℃ |
| Storage temperature | -15℃-60℃ |
| Relative humidity | 5%-95% |
| Physical |
|
| Size (D/W/H) | 465x305x110mm |
| Net weight (KG) | 9.5 |
Product parameters:
| Model | SC-PU 5.5K |
| Rated power | 5500VA |
| Ac input | |
| Voltage | 230VAC |
| Voltage range | 170-280Vac(Suitable for personal computers） 90-280Vac(Suitable for household appliances） |
| Frequency range | 50 Hz/60 Hz |
| Pv input | |
| Maximum photovoltaic array power | 5500W |
| The largest photovoltaic array open-circuit voltage | 500VDC |
| MPPT @ working voltage range | 120VDC-450VDC |
| The rated voltage | 360V |
| Number of MPPT | 1 |
| Output parameters | |
| PV/battery model | |
| Voltage | 230V±5% |
| Frequency | 50/60HZ |
| Efficiency | 93% |
| Maximum output power | 5500W |
| Conversion time | 10ms（Typical UPS），20ms（Household appliance） |
| Harmonic | 3% |
| Overload capacity | 5s@≥150%load;10s@110%-150%load |
| The utility model | |
| Voltage | 230Vac±5% |
| Frequency | 50HZ |
| Efficiency | 95% |
| Battery | |
| Battery voltage | 48V |
| Charging mode | A three-stage charging |
| Maximum charging current (MPPT) | 80A |
| Maximum charging current | 80A |
| Maximum charging current | 100A |
| Cold start voltagez | 46V |
| The battery type | Lead acid and lithium electricity |
| Protection function | Output short circuit overload over temperature protection, and other functions |
| Communication port | RS232,USB |
| The work environment |
|
| Working temperature | -10℃-50℃ |
| Storage temperature | -15℃-60℃ |
| Relative humidity | 5%-95% |
| Physical |
|
| Size (D/W/H) | 465x305x110mm |
| Net weight (KG) | 10.5 |
