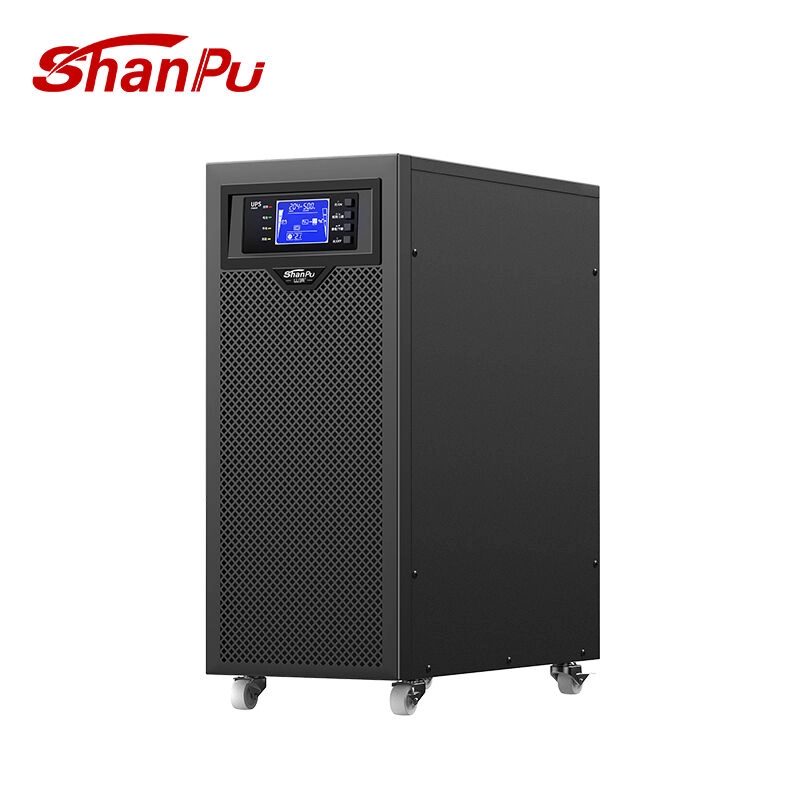

C6KVA-30KVA UPS

FUNCTIONS:

Real-time Dual Conversion
Microprocessor control ensures high reliability
Power factor up to 0.9
Wide input voltage range(110V-300V)
Output sine wave,compatible with generators
Optional SNMP card for independent or seamless monitoring with RS232

Get a quote

Get the Product Catalog

Product Detail

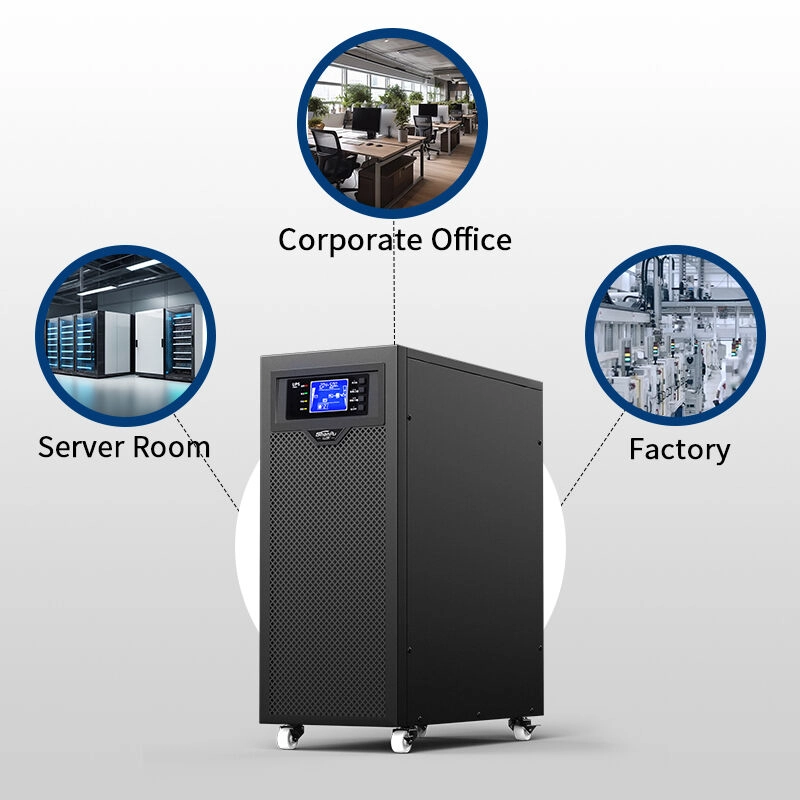

APPLICATIONS FIELDS

Widely used in network management centers and computers, banks, securities, taxation, communications, postal services, radio and television, public security, transportation, electric power, medical, industrial control, national defense and other important data fields.

Products specifications:

Model		C6K(S)
Phase		Single-input single-output
Capacity		6KVA 5400W
Input
Input Voltage		208/220/230/240VAC
Voltage range		110-300VAC @ 50% load 176-300VAC @ 100% load
Input Frequency		46~54Hz or 56~64Hz
Power Factor		≥0.99@100% load
Output
Output Voltage		208/220/230/240VCA
AC voltage regulation		±1%
Frequency (Synchronous correction range)		46-54Hz/56-64Hz
Frequency Range (Battery Mode)		50Hz/60Hz ±0.1 Hz
Surge Rating		3:1(max)
Waveform balance		≤3% THD (Linear Load ) ≤5% THD (Non-linear Load)
Transfer Time		0ms
Output Waveform		Pure Sine Wave
Efficiencies
Mains Mode		93%
Battery Mode		90%
Battery
Stardard UPS	Battery Model	12V/7AH
	Battery quantity	16
	Charging time	9 hours to 90% full capacity
	Max Charging Current	Preset1A , 1A/2A 4A adjustable
	Charging voltage	218.4VDC ±1%/273 VDC ±1%
External battery UPS	Battery Model	Depends on the applicant
	Battery quantity	16-20 adjustable
	Max charging current	1A/2A/4A/6A adjustable
	Charging voltage	218.4VDC ±1% , 273VDC ±1%
Display Instructions
LCD		Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Physical performance
Stardard UPS	Size (MM)	500248616
	Weight (KG)	57
External battery UPS	Size (MM)	500248460
	Weight (KG)	18
Usage environment
Humidity		20-95%RH@0-45 ℃ ( No condensation)
Noise		<60dbA@1M
Control Management
Smart RS-232/USB		Be in favor of Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC
Optional SNMP		Power management supports SNMP management and network management

Products specifications:

Model		C10K(S)
Phase		Single-input single-output
Capacity		10KVA 9000W
Input
Input Voltage		208/220/230/240VAC
Voltage range		110-300VAC @ 50% load 176-300VAC @ 100% load
Input Frequency		46~54Hz or 56~64Hz
Power Factor		≥0.99@100% load
Output
Output Voltage		208/220/230/240VCA
AC voltage regulation		±1%
Frequency (Synchronous correction range)		46-54Hz/56-64Hz
Frequency Range (Battery Mode)		50Hz/60Hz ±0.1 Hz
Surge Rating		3:1(max)
Waveform balance		≤3% THD (Linear Load ) ≤5% THD (Non-linear Load)
Transfer Time		0ms
Output Waveform		Pure Sine Wave
Efficiencies
Mains Mode		94%
Battery Mode		91%
Battery
Stardard UPS	Battery Model	12V/7AH
	Battery quantity	16
	Charging time	9 hours to 90% full capacity
	Max Charging Current	Preset1A , 1A/2A 4A adjustable
	Charging voltage	218.4VDC ±1%/273 VDC ±1%
External battery UPS	Battery Model	Depends on the applicant
	Battery quantity	16-20 adjustable
	Max charging current	1A/2A/4A/6A adjustable
	Charging voltage	218.4VDC ±1% , 273VDC ±1%
Display Instructions
LCD		Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Physical performance
Stardard UPS	Size (MM)	500248616
	Weight (KG)	68
External battery UPS	Size (MM)	500248460
	Weight (KG)	20
Usage environment
Humidity		20-95%RH@0-45 ℃ ( No condensation)
Noise		<60dbA@1M
Control Management
Smart RS-232/USB		Be in favor of Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC
Optional SNMP		Power management supports SNMP management and network management

Products specifications:

Model		3C 10K(S)
Phase		Three-input single-output
Capacity		10KVA 8000W
Input
Input Voltage		380/400VAC/415VAC (3ph + N)
Voltage range		190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load
Input Frequency		46~54Hz or 56~64Hz
Power Factor		≥0.8@100% load
Output
Output Voltage		208/220/230/240VCA
AC voltage regulation		±1%
Frequency (Synchronous correction range)		46-54Hz/56-64Hz
Frequency Range (Battery Mode)		50Hz/60Hz ±0.2 Hz
Surge Rating		3:1(max)
Waveform balance		≤3% THD (Linear Load ) ≤5% THD (Non-linear Load)
Transfer Time		0ms
Output Waveform		Pure Sine Wave
Efficiencies
Mains Mode		91%
Battery Mode		91%
Battery
Stardard UPS	Battery Model	12V/7AH
	Battery quantity	16/20
	Charging time	9 hours to 90% full capacity
	Max Charging Current	Preset1A , 1A/2A 4A adjustable
	Charging voltage	218.4VDC ±1%/273 VDC ±1%
External battery UPS	Battery Model	Depends on the applicant
	Battery quantity	16-20 adjustable
	Max charging current	1A/2A/4A adjustable
	Charging voltage	218.4VDC ±1% , 273VDC ±1%
Display Instructions
LCD		Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Physical performance
Stardard UPS	Size (MM)	500248620
	Weight (KG)
External battery UPS	Size (MM)	575248620
	Weight (KG)	27
Usage environment
Humidity		20-95%RH@0-45 ℃ ( No condensation)
Noise		<60dbA@1M
Control Management
Smart RS-232/USB		Be in favor of Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC
Optional SNMP		Power management supports SNMP management and network management

Products specifications:

Model		3C 15K(S)
Phase		Three-input single-output
Capacity		15KVA 12000W
Input
Input Voltage		380/400VAC/415VAC (3ph + N)
Voltage range		190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load
Input Frequency		46~54Hz or 56~64Hz
Power Factor		≥0.8@100% load
Output
Output Voltage		208/220/230/240VCA
AC voltage regulation		±1%
Frequency (Synchronous correction range)		46-54Hz/56-64Hz
Frequency Range (Battery Mode)		50Hz/60Hz ±0.2 Hz
Surge Rating		3:1(max)
Waveform balance		≤3% THD (Linear Load ) ≤5% THD (Non-linear Load)
Transfer Time		0ms
Output Waveform		Pure Sine Wave
Efficiencies
Mains Mode		91%
Battery Mode		91%
Battery
Stardard UPS	Battery Model	12V/7AH
	Battery quantity	16/20
	Charging time	9 hours to 90% full capacity
	Max Charging Current	Preset1A , 1A/2A 4A adjustable
	Charging voltage	218.4VDC ±1%/273 VDC ±1%
External battery UPS	Battery Model	Depends on the applicant
	Battery quantity	16-20 adjustable
	Max charging current	1A/2A/4A adjustable
	Charging voltage	218.4VDC ±1% , 273VDC ±1%
Display Instructions
LCD		Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Physical performance
Stardard UPS	Size (MM)	500248620
	Weight (KG)
External battery UPS	Size (MM)	575248620
	Weight (KG)	35
Usage environment
Humidity		20-95%RH@0-45 ℃ ( No condensation)
Noise		<60dbA@1M
Control Management
Smart RS-232/USB		Be in favor of Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC
Optional SNMP		Power management supports SNMP management and network management

Products specifications:

Model		3C 20K(S)
Phase		Three-input single-output
Capacity		20KVA 16000W
Input
Input Voltage		380/400VAC/415VAC (3ph + N)
Voltage range		190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load
Input Frequency		46~54Hz or 56~64Hz
Power Factor		≥0.8@100% load
Output
Output Voltage		208/220/230/240VCA
AC voltage regulation		±1%
Frequency (Synchronous correction range)		46-54Hz/56-64Hz
Frequency Range (Battery Mode)		50Hz/60Hz ±0.2 Hz
Surge Rating		3:1(max)
Waveform balance		≤3% THD (Linear Load ) ≤5% THD (Non-linear Load)
Transfer Time		0ms
Output Waveform		Pure Sine Wave
Efficiencies
Mains Mode		93%
Battery Mode		92%
Battery
Stardard UPS	Battery Model	12V/7AH
	Battery quantity	16/20
	Charging time	9 hours to 90% full capacity
	Max Charging Current	Preset1A , 1A/2A 4A adjustable
	Charging voltage	218.4VDC ±1%/273 VDC ±1%
External battery UPS	Battery Model	Depends on the applicant
	Battery quantity	16-20 adjustable
	Max charging current	1A/2A/4A adjustable
	Charging voltage	218.4VDC ±1% , 273VDC ±1%
Display Instructions
LCD		Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Physical performance
Stardard UPS	Size (MM)	500248620
	Weight (KG)
External battery UPS	Size (MM)	575248620
	Weight (KG)	35
Usage environment
Humidity		20-95%RH@0-45 ℃ ( No condensation)
Noise		<60dbA@1M
Control Management
Smart RS-232/USB		Be in favor of Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC
Optional SNMP		Power management supports SNMP management and network management

Products specifications:

Model		3C 30K(S)
Phase		Three-input single-output
Capacity		30KVA 24000W
Input
Input Voltage		380/400VAC/415VAC (3ph + N)
Voltage range		190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load
Input Frequency		46~54Hz or 56~64Hz
Power Factor		≥0.8@100% load
Output
Output Voltage		208/220/230/240VCA
AC voltage regulation		±1%
Frequency (Synchronous correction range)		46-54Hz/56-64Hz
Frequency Range (Battery Mode)		50Hz/60Hz ±0.2 Hz
Surge Rating		3:1(max)
Waveform balance		≤3% THD (Linear Load ) ≤5% THD (Non-linear Load)
Transfer Time		0ms
Output Waveform		Pure Sine Wave
Efficiencies
Mains Mode		91%
Battery Mode		90%
Battery
Stardard UPS	Battery Model
	Battery quantity
	Charging time	9 hours to 90% full capacity
	Max Charging Current	Preset1A , 1A/2A 4A adjustable
	Charging voltage	218.4VDC ±1%/273 VDC ±1%
External battery UPS	Battery Model	Depends on the applicant
	Battery quantity	16-20 adjustable
	Max charging current	1A/2A/4A adjustable
	Charging voltage	218.4VDC ±1% , 273VDC ±1%
Display Instructions
LCD		Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Physical performance
Stardard UPS	Size (MM)
	Weight (KG)
External battery UPS	Size (MM)	815250826
	Weight (KG)	64
Usage environment
Humidity		20-95%RH@0-45 ℃ ( No condensation)
Noise		<60dbA@1M
Control Management
Smart RS-232/USB		Be in favor of Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC
Optional SNMP		Power management supports SNMP management and network management

You may also like

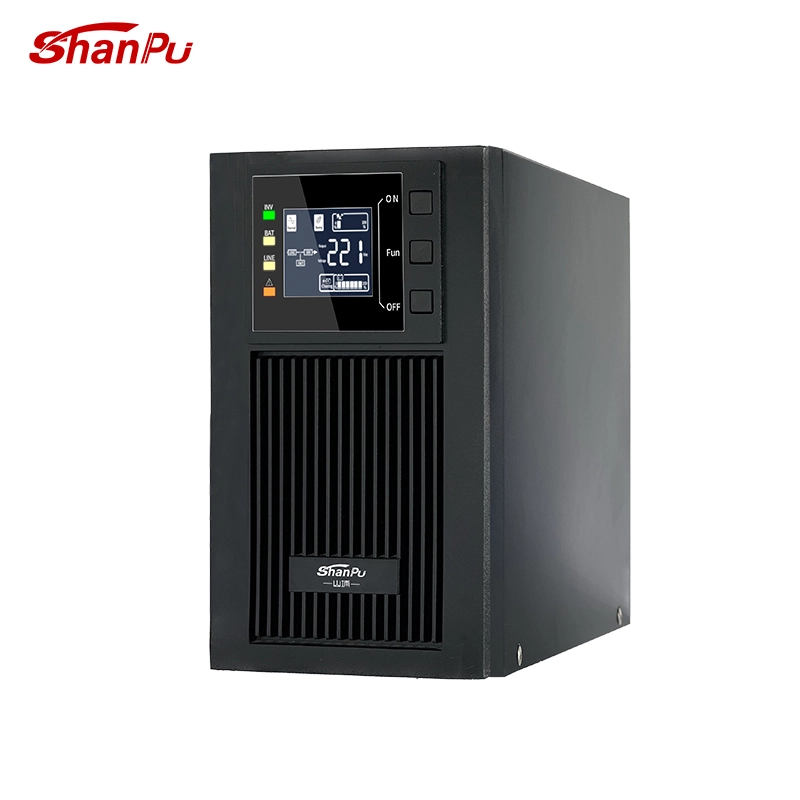

Online UPS 1kVA-10kVA Tower Type

FUNCTIONS:

· Pure sine wave zero conversion time
· Customizable sockets and voltages for different countries
· Built in long-lasting maintenance free lead-acid battery
· Equipped with VAR voltage regulator
· Short circuit and overload protection
· Offering LED and LCD panels for selection
· Optional USB, RS232/RJ45/SNMP communication port

Online UPS 1kVA-10kVA Tower Type

1KVA–3KVA Online UPS for Small and Medium Power Backup

The C1KVA–3KVA UPS series is designed for stable and continuous power protection in small and medium-sized power environments. With online double-conversion technology, pure sine wave output, and 0ms transfer time, it helps protect sensitive equipment from power interruptions, voltage fluctuations, and unstable grid conditions.

Available in 1KVA, 2KVA, and 3KVA models, this UPS series is suitable for offices, network rooms, servers, banking terminals, medical equipment, security systems, and industrial control applications. Standard battery and external battery versions are available to meet different backup time requirements.

1KVA–3KVA Online UPS for Small and Medium Power Backup

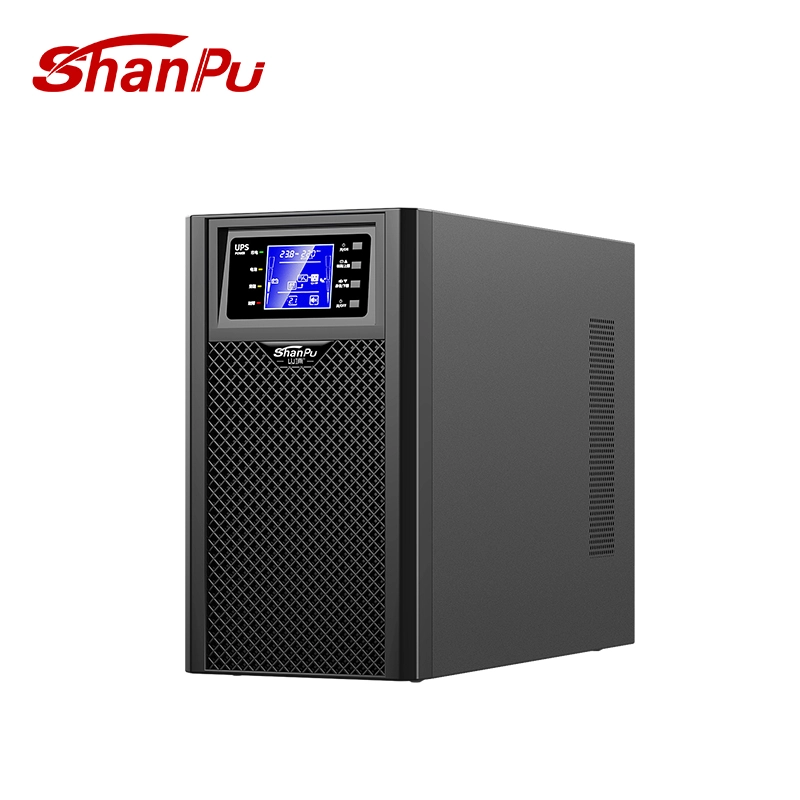

Lithium Battery Online UPS 1kVA–3kVA

SHANPU lithium battery online UPS is designed for critical power protection in servers, network rooms, data centers, communication systems, medical equipment and industrial control applications. Available in 1kVA, 2kVA and 3kVA models, it adopts online double-conversion technology to provide stable pure sine wave output and 0ms transfer time.

Compared with traditional lead-acid battery UPS systems, the built-in LiFePO4 battery offers longer cycle life, lighter weight, higher safety and more stable backup performance. With adjustable charging current, LCD display, RS232/USB/AS400/RS485/SNMP communication options and optional external battery configuration, this UPS is suitable for professional IT and industrial backup power applications.

Lithium Battery Online UPS 1kVA–3kVA

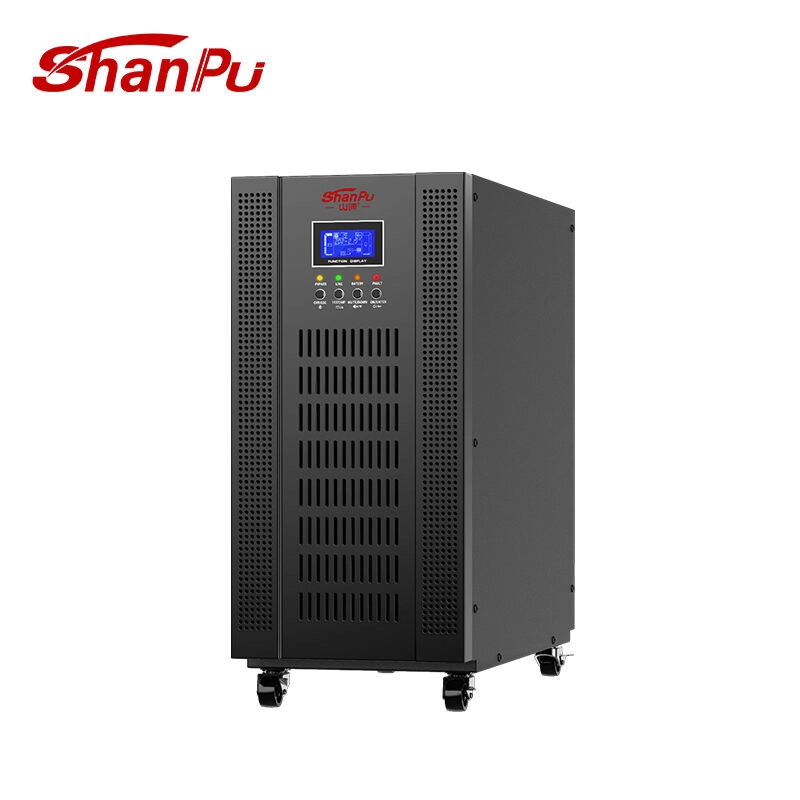

Three Phase Double Conversion Online UPS 10kVA–200kVA
