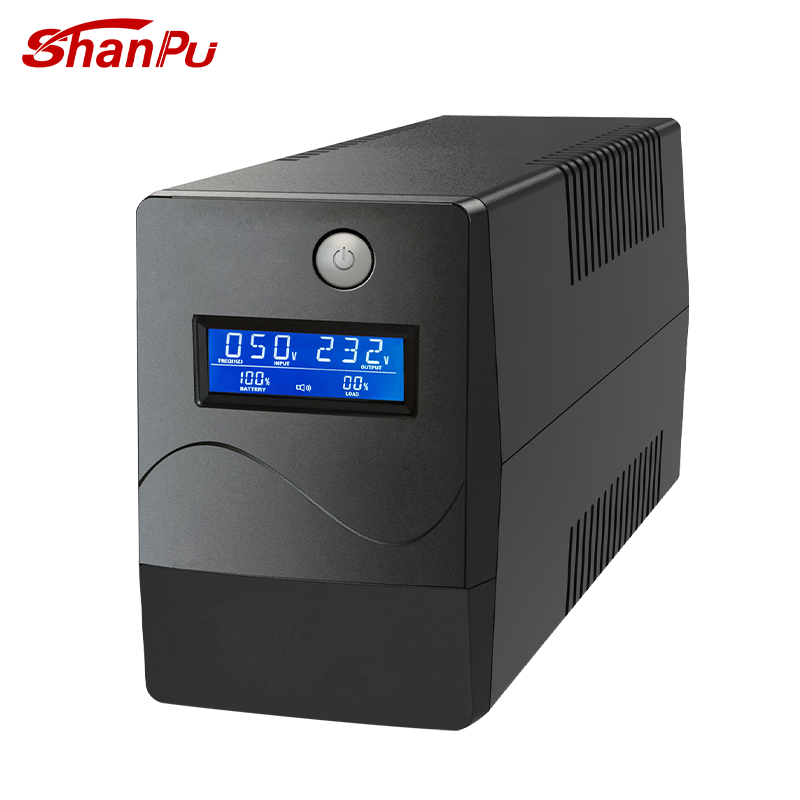

MTC450VA-2000VA UPS
Features
·Advanced DSP control technology makes the Ups performance more stable andthe quality more superior.
· Built-in smart charger to shorten charging time.
· AVR automatic voltage regulation function.
· Simulated sine wave output.
· With the function of automatic start upon incoming call.
· Generator compatible.
· RS232/USB communication interface and RJ11/RJ45 protector (optional)
- Overview
- Recommended Products
APPLICATIONS:
The MTC450VA - 2000VA is a high - performance power supply designed to meet the diverse power needs of various applications. With a capacity of 2000VA, it offers a stable and reliable power output. This power supply is engineered for efficiency, ensuring minimal energy loss during operation. It features advanced protection mechanisms to safeguard against over - voltage, under - voltage, over - current, and short - circuit conditions, enhancing the safety and longevity of the connected devices. Whether used in industrial settings, commercial equipment, or critical power systems, the MTC450VA - 2000VA provides a consistent and dependable power source, enabling smooth operation and reducing downtime.
Main technical parameters
| Model | MT500 | |
| Capacity | 500VA/300W | |
| Input | ||
| Input voltage | 110/120/200/220/230/240Vac | |
| Input voltage range | 140-280V | |
| Input frequency | 50±HZ | |
| Output | ||
| Battery voltage | 110/120/200/220/230/240Vac | |
| Output voltage range | ±10% | |
| Output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Lead acid UPS | ||
| Lead acid battery | Battery voltage | 12V |
| Battery model | 12V/7AH | |
| Battery number | 1 | |
| Charging time | 10-16 Hours to 90% full capacity | |
| Machine data | Size (MM) | 280*100*140 |
| Weight (KG) | 3.725KG | |
| Packing data | Size(MM) | 335*300*460 |
| Weight (KG) | 15.5KG | |
| UPS Number | 4 | |
| Lithium battery UPS | ||
| Lithimn batteny | Battery capacity/quantity | - |
| Float charge voltage | 13.7VDC | |
| Rechargeable in AC mode | Yes | |
| Charging time | 4-6 hours to 90% capacity | |
| Machine data | Size(MM) | 280*100*140 |
| Weight (KG) | - | |
| Packing data | Size (MM) | 335*300*460 |
| Weight (KG) | - | |
| UPS Number | 4 | |
| Display description | ||
| Display status | LCD | |
| Protection function | Automatic detection and discharge protection.input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | Beep every 4 seconds | |
| Low battery | Beep every second | |
| Overload | Beep every second | |
| Error | Continuous Beep | |
| Usage environment | ||
| Humidity | 0-90% Humidity and 0-40 ℃ Temperature | |
| Noise | <40db | |
Main technical parameters
| Model | MT650 | |
| Capacity | 650VA/390W | |
| Input | ||
| Input voltage | 110/120/200/220/230/240Vac | |
| Input voltage range | 140-280V | |
| Input frequency | 50±HZ | |
| Output | ||
| Battery voltage | 110/120/200/220/230/240Vac | |
| Output voltage range | ±10% | |
| Output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Lead acid UPS | ||
| Lead acid battery | Battery voltage | 12V |
| Battery model | 12V/7AH | |
| Battery number | 1 | |
| Charging time | 10-16 Hours to 90% full capacity | |
| Machine data | Size (MM) | 280*100*140 |
| Weight (KG) | 4.25KG | |
| Packing data | Size(MM) | 335*300*460 |
| Weight (KG) | 18.4KG | |
| UPS Number | 4 | |
| Lithium battery UPS | ||
| Lithimn batteny | Battery capacity/quantity | 84WH |
| Float charge voltage | 13.7VDC | |
| Rechargeable in AC mode | Yes | |
| Charging time | 4-6 hours to 90% capacity | |
| Machine data | Size(MM) | 280*100*140 |
| Weight (KG) | 2.25KG | |
| Packing data | Size (MM) | 335*300*460 |
| Weight (KG) | 16.4KG | |
| UPS Number | 4 | |
| Display description | ||
| Display status | LCD | |
| Protection function | Automatic detection and discharge protection.input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | Beep every 4 seconds | |
| Low battery | Beep every second | |
| Overload | Beep every second | |
| Error | Continuous Beep | |
| Usage environment | ||
| Humidity | 0-90% Humidity and 0-40 ℃ Temperature | |
| Noise | <40db | |
Main technical parameters
| Model | MT850 | |
| Capacity | 850VA/480W | |
| Input | ||
| Input voltage | 110/120/200/220/230/240Vac | |
| Input voltage range | 140-280V | |
| Input frequency | 50±HZ | |
| Output | ||
| Battery voltage | 110/120/200/220/230/240Vac | |
| Output voltage range | ±10% | |
| Output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Lead acid UPS | ||
| Lead acid battery | Battery voltage | 12V |
| Battery model | 12V/7AH | |
| Battery number | 1 | |
| Charging time | 10-16 Hours to 90% full capacity | |
| Machine data | Size (MM) | 280*100*140 |
| Weight (KG) | 4.9KG | |
| Packing data | Size(MM) | 335*300*460 |
| Weight (KG) | 20.6KG | |
| UPS Number | 4 | |
| Lithium battery UPS | ||
| Lithimn batteny | Battery capacity/quantity | 84WH |
| Float charge voltage | 13.7VDC | |
| Rechargeable in AC mode | Yes | |
| Charging time | 4-6 hours to 90% capacity | |
| Machine data | Size(MM) | 280*100*140 |
| Weight (KG) | 3.7KG | |
| Packing data | Size (MM) | 335*300*460 |
| Weight (KG) | 19.4KG | |
| UPS Number | 4 | |
| Display description | ||
| Display status | LCD | |
| Protection function | Automatic detection and discharge protection.input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | Beep every 4 seconds | |
| Low battery | Beep every second | |
| Overload | Beep every second | |
| Error | Continuous Beep | |
| Usage environment | ||
| Humidity | 0-90% Humidity and 0-40 ℃ Temperature | |
| Noise | <40db | |
