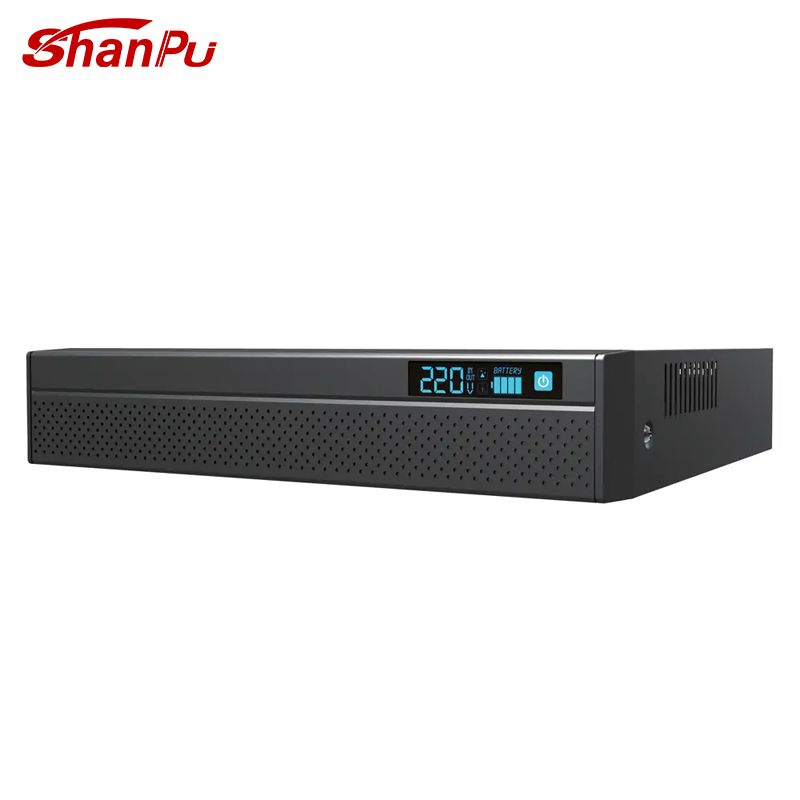

DC UPS-100W/120W
Features:
1:High capacity lithium batteries, provides long backup to the loads
2: High compatibility, suitable for most digital products in the market.
3: Power Over Ethernet(POE) can transmit the data and power at the same time to simipllifyvire set.
4: Intelligent circuit design with over-charging, over-discharging and short circuit protections
5:Built-in adapter allows wide AC voltage range (85-265Vac)
- Overview
- Recommended Products
PRODUCT SPECIFICATION:
| Product Name | DC UPS-100W |
| Type | CCTV UPS, CCTV UPS Power Supply, DC UPS, UPS CCTV, 12V DC UPS, UPS For Camera |
| Model No.: | FS10A |
| input Voltage | 100-240Vac150~60HZ |
| Output Power | 110W max(150~275Vac) |
| DC Output | 9/12Vdc *1pcs 3.0A/36W+ 12Vdc*10pcs 8.0A/100W |
| POE Output | 15V(1.0A 15W)/24V(1.0A 24W)selectable,+4,5pins-7.8pins |
| Battery | 5200mAH*4pcs LifePO4 battery |
| Charging Time | Around 5 hours if full load |
| Color | Black |
| Housing Material | Metal |
| Product Size | 258*225.5*49(mm) |
| Weight | 1.79kg |
| Package | Color Box |
| Packing Details | 6pcs/ctn G.W: 14.6kg/ctn Carton size:583*365*315mm |
| Application | Small DC communication equipment,networkperipherals Such as: Modem, Routers, Nanostation. CCTV etc |
PRODUCT SPECIFICATION:
| Product Name | DC UPS-120W |
| Type | CCTV UPS, CCTV UPS Power Supply, DC UPS, UPS CCTV, 12V DC UPS, UPS For Camera |
| Model No.: | FS10A |
| input Voltage | 100-240Vac150~60HZ |
| Output Power | 110W max(150~275Vac) |
| DC Output | 9/12Vdc *1pcs 3.0A/36W+ 12Vdc*10pcs 8.0A/100W |
| POE Output | 15V(1.0A 15W)/24V(1.0A 24W)selectable,+4,5pins-7.8pins |
| Battery | 5200mAH*4pcs LifePO4 battery |
| Charging Time | Around 5 hours if full load |
| Color | Black |
| Housing Material | Metal |
| Product Size | 258*225.5*49(mm) |
| Weight | 1.79kg |
| Package | Color Box |
| Packing Details | 6pcs/ctn G.W: 14.6kg/ctn Carton size:583*365*315mm |
| Application | Small DC communication equipment,networkperipherals Such as: Modem, Routers, Nanostation. CCTV etc |
