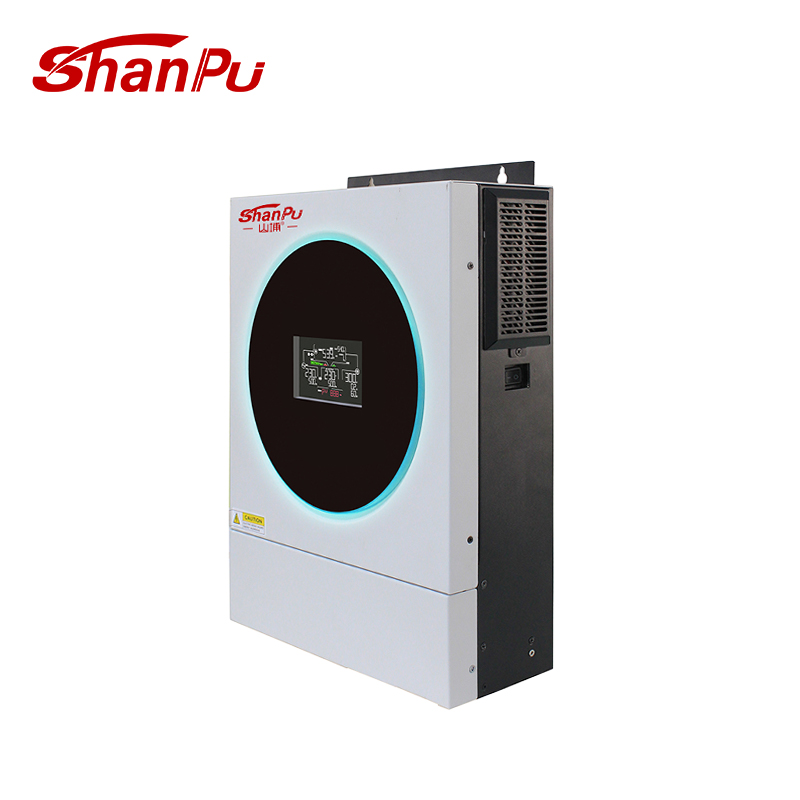

SC-PU-4K/6K
- Hybrid solar inverter(on/off grid inverter)Supporting Pv, utility and battery access.
- Optional priority of utility , photovoltaic , battery mode
- Colorul RGB light ring ,touchscreens display
- Built-in WiFi modue, support APP remote monitoring
- Battery equalization function to optimize battery, extended battery life
- BMS communicaton interhace: CAN-BUS, RS485 Or RS232.
- Bult-in dust-proof mesh kit for harsh environmentse
- Paralleling function , up to 9 units in parallel
- Overview
- Recommended Products
Product characteristics
·Off grid inverter, dustproofkit design
· Maximum photovoltaicinput current 27A
· Dualoutput,intelligentload management
· MPPTinputvoltage range 60~450V
· 4.3inch touch screen, RGB color barstatus display
· Built-in Wi-Fi monitoring module (Android/iOS App)
· Off gridinverter,support photovoltaic, mains,battery access
· BMS communicationinterface(RS485,CAN,RS232)
· Intelligent charger design, balance function to extendbattery life
Product parameters:
| Model number Rated power | SC-PU-4KW 4000VA/4000W |
| AC input | |
| Input voltage voltage range |
230VaC |
| Exports | |
| Output Voltage Range | 230VAC+5% |
| Breakout power | 8000VA |
| Efficiency | 93% |
| Conversion Time | 10ms(Computers);20ms(set) |
| Waveform | Pure Sine Wave |
| DC Voltage | 12VDC+ 5% 100W |
| Batteries | |
| Battery Voltage | 24v |
| Float Charge Voltage | 27V |
| Overcharge Protection | 33VDC |
| Exports | |
| Photovoltaic charging type | MPPT |
| Maximum PV array power | 5000W |
| MPPT Operating Voltage Range | 60~450 VDC |
| Maximum PV array opencircuit voltage | 500 VDC |
| Rated Voltage | 240V |
| Maximum PV input current | 27A |
| Maximum Py charging current | 120A |
| Maximum AC charging current | 120A |
| Maximum charging current | 120A |
| Physiotherapy | |
| D*W*H (mm) | 119x313.6 x457.5 |
| Net weight (kgs) | 10 |
| Communication Interface | USB/RS232/RS48S/WiFi/Dry Contact |
| Working Environment | |
| Temp | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°c to 50°C |
| Storage temperature | -15°c to 60°C |
Product parameters:
| Model number Rated power | SC-PU-6KW 6000VA/6000W |
| AC input | |
| Input voltage voltage range | 230VaC 170-280Vac(For personal computers)90-280Vac(applicable to houschold appliances) |
| Exports | |
| Output Voltage Range | 230VAC+5% |
| Breakout power | 12000VA |
| Efficiency | 93% |
| Conversion Time | 10ms(Computers);20ms(set) |
| Waveform | Pure Sine Wave |
| DC Voltage | 12VDC+ 5% 100W |
| Batteries | |
| Battery Voltage | 48V |
| Float Charge Voltage | 54V |
| Overcharge Protection | 63VDC |
| Exports | |
| Photovoltaic charging type | MPPT |
| Maximum PV array power | 6000W |
| MPPT Operating Voltage Range | 60~450 VDC |
| Maximum PV array opencircuit voltage | 500 VDC |
| Rated Voltage | 360V |
| Maximum PV input current | 27A |
| Maximum Py charging current | 120A |
| Maximum AC charging current | 120A |
| Maximum charging current | 120A |
| Physiotherapy | |
| D*W*H (mm) | 119x313.6 x457.5 |
| Net weight (kgs) | 20 |
| Communication Interface | USB/RS232/RS48S/WiFi/Dry Contact |
| Working Environment | |
| Temp | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°c to 50°C |
| Storage temperature | -15°c to 60°C |
