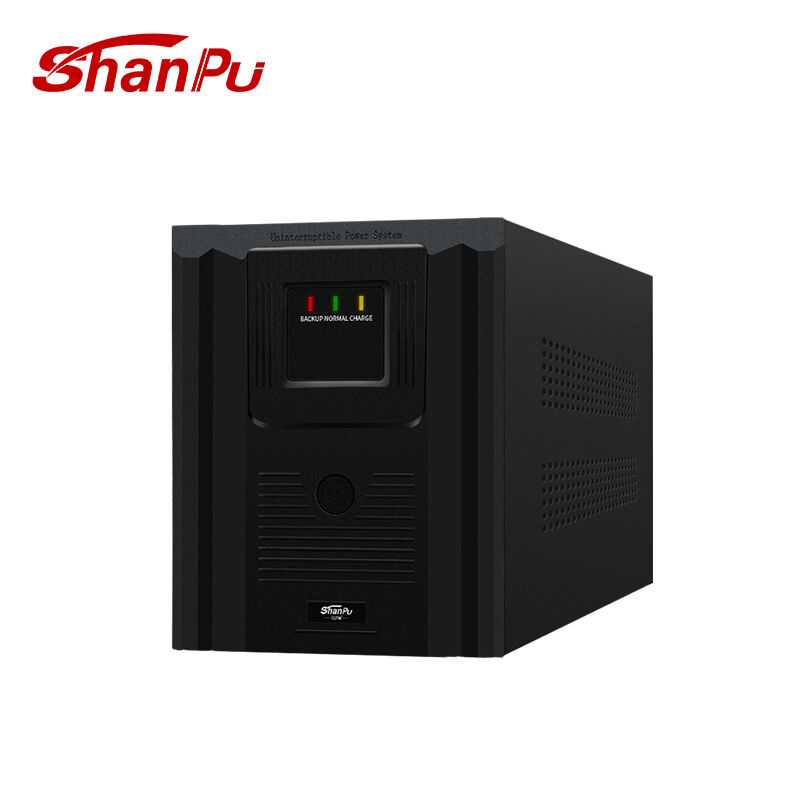

BT500VA-3000VA(LED) UPS
- Small and delicate
- Wide input voltage range
- Excellent microprocessor ensures operation
- Automatic voltage regulation
- Automatic restart function for utility power
- Simulated sine wave
- Overview
- Recommended Products
APPLICATIONS:
The BT500VA 600VA 1000VA 2000VA 3000VA(LED) series is specifically engineered to provide stable and efficient power for LED lighting systems. With advanced power regulation technology, these units ensure consistent voltage output, preventing flickering and extending the lifespan of LED fixtures. Built - in surge protection, over - current protection, and automatic voltage regulation safeguard the LED equipment from electrical disturbances. Ideal for commercial buildings, industrial facilities, and large - scale LED display projects, the BT600VA - 3000VA(LED) offers reliable power support to maintain optimal performance of LED lighting setups.
Product parameters:
| Model | BT500 | |
| capacity | 500VA/300W | |
| Input | ||
| Input voltage | 1 10/120/200/220/230/240vac | |
| Input voltage range | 140 -280V | |
| Input frequency | 50±HZ | |
| output | ||
| BattEry voltage | 1 10/120/200/220/230/240vac | |
| output voltage range | ±10% | |
| output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Battery | ||
|
Standard UPS |
Battery voltage | |
| Battery model | ||
| Battery quantity | ||
| charging time | 10- 1690% 10 - 16 Hours to 90% full capacity | |
| Model | BT500 | |
| External battery Ups | BattEry voltage | 12V |
| Battery model | External battEry | |
| Battery quantity | ||
| charging time | Depends on the external battery capacity | |
| Display description | ||
| Display status | LED | |
| protection function | Automatic detection and discharge protection, input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | 4 Beep every 4 seconds | |
| Low battery | Beep every second | |
| overload | Beep every second | |
| Error | continuous Beep | |
| Physical property | ||
|
stardard Ups |
size (MM) | |
| WEight(KG) | ||
|
External battery Ups |
size (MM) | 320*90* 140 |
| weight(KG) | 3.5 | |
|
Usage environment |
||
|
Humidity |
0-90%0-40℃ 0 -90% Humidity and 0-40 ℃ Temperature |
|
|
Noise |
<40db | |
Product parameters:
| Model | BT600 | |
| capacity | 600VA/360W | |
| Input | ||
| Input voltage | 1 10/120/200/220/230/240vac | |
| Input voltage range | 140 -280V | |
| Input frequency | 50±HZ | |
| output | ||
| BattEry voltage | 1 10/120/200/220/230/240vac | |
| output voltage range | ±10% | |
| output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Battery | ||
|
Standard UPS |
Battery voltage | 12V |
| Battery model | 12V/7AH | |
| Battery quantity | ||
| charging time | 10- 1690% 10 - 16 Hours to 90% full capacity | |
| Model | BT600(S) | |
| External battery Ups | BattEry voltage | 12V |
| Battery model | External battEry | |
| Battery quantity | ||
| charging time | Depends on the external battery capacity | |
| Display description | ||
| Display status | LED | |
| protection function | Automatic detection and discharge protection, input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | 4 Beep every 4 seconds | |
| Low battery | Beep every second | |
| overload | Beep every second | |
| Error | continuous Beep | |
| Physical property | ||
|
stardard Ups |
size (MM) | 320*90* 140 |
| WEight(KG) | 5.1 | |
|
External battery Ups |
size (MM) | |
| weight(KG) | ||
|
Usage environment |
||
|
Humidity |
0-90%0-40℃ 0 -90% Humidity and 0-40 ℃ Temperature |
|
|
Noise |
<40db | |
Product parameters:
| Model | BT1000 | |
| capacity | 1KVA/600W | |
| Input | ||
| Input voltage | 1 10/120/200/220/230/240vac | |
| Input voltage range | 140 -280V | |
| Input frequency | 50±HZ | |
| output | ||
| BattEry voltage | 1 10/120/200/220/230/240vac | |
| output voltage range | ±10% | |
| output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Battery | ||
|
Standard UPS |
Battery voltage | 24V |
| Battery model | 12V/9AH | |
| Battery quantity | ||
| charging time | 10- 1690% 10 - 16 Hours to 90% full capacity | |
| Model | BT1000(S) | |
| External battery Ups | BattEry voltage | 24V |
| Battery model | External battEry | |
| Battery quantity | ||
| charging time | Depends on the external battery capacity | |
| Display description | ||
| Display status | LED | |
| protection function | Automatic detection and discharge protection, input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | 4 Beep every 4 seconds | |
| Low battery | Beep every second | |
| overload | Beep every second | |
| Error | continuous Beep | |
| Physical property | ||
|
stardard Ups |
size (MM) | 365* 140* 165 |
| WEight(KG) | 5.7 | |
|
External battery Ups |
size (MM) | 365* 140* 165 |
| weight(KG) | 4.2 | |
|
Usage environment |
||
|
Humidity |
0-90%0-40℃ 0 -90% Humidity and 0-40 ℃ Temperature |
|
|
Noise |
<40db | |
Product parameters:
| Model | BT2000 | |
| capacity | 2KVA/1200W | |
| Input | ||
| Input voltage | 1 10/120/200/220/230/240vac | |
| Input voltage range | 140 -280V | |
| Input frequency | 50±HZ | |
| output | ||
| BattEry voltage | 1 10/120/200/220/230/240vac | |
| output voltage range | ±10% | |
| output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Battery | ||
|
Standard UPS |
Battery voltage | 24V |
| Battery model | 12V/9AH | |
| Battery quantity | 2 | |
| charging time | 10- 1690% 10 - 16 Hours to 90% full capacity | |
| Model | BT2000(S) | |
| External battery Ups | BattEry voltage | 24V |
| Battery model | External battEry | |
| Battery quantity | ||
| charging time | Depends on the external battery capacity | |
| Display description | ||
| Display status | LED | |
| protection function | Automatic detection and discharge protection, input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | 4 Beep every 4 seconds | |
| Low battery | Beep every second | |
| overload | Beep every second | |
| Error | continuous Beep | |
| Physical property | ||
|
stardard Ups |
size (MM) | 365* 140* 1 65 |
| WEight(KG) | 12.6 | |
|
External battery Ups |
size (MM) | 395* 145*21 0 |
| weight(KG) | 10.2 | |
|
Usage environment |
||
|
Humidity |
0-90%0-40℃ 0 -90% Humidity and 0-40 ℃ Temperature |
|
|
Noise |
<40db | |
Product parameters:
| Model | BT3000 | |
| capacity | 3KVA/1800W | |
| Input | ||
| Input voltage | 1 10/120/200/220/230/240vac | |
| Input voltage range | 140 -280V | |
| Input frequency | 50±HZ | |
| output | ||
| BattEry voltage | 1 10/120/200/220/230/240vac | |
| output voltage range | ±10% | |
| output frequency | 50±HZ | |
| Transfer time | ≤6ms | |
| Battery | ||
|
Standard UPS |
Battery voltage | 24V |
| Battery model | 12V/9AH | |
| Battery quantity | 4 | |
| charging time | 10- 1690% 10 - 16 Hours to 90% full capacity | |
| Model | BT3000(S) | |
| External battery Ups | BattEry voltage | 24V |
| Battery model | External battEry | |
| Battery quantity | ||
| charging time | Depends on the external battery capacity | |
| Display description | ||
| Display status | LED | |
| protection function | Automatic detection and discharge protection, input short circuit protection, overload protection | |
| Warning sound | ||
| Battery mode | 4 Beep every 4 seconds | |
| Low battery | Beep every second | |
| overload | Beep every second | |
| Error | continuous Beep | |
| Physical property | ||
|
stardard Ups |
size (MM) | 395* 145*210 |
| WEight(KG) | 21 | |
|
External battery Ups |
size (MM) | 395* 145*21 0 |
| weight(KG) | 13.7 | |
|
Usage environment |
||
|
Humidity |
0-90%0-40℃ 0 -90% Humidity and 0-40 ℃ Temperature |
|
|
Noise |
<40db | |
