Online UPS Systems: A Comprehensive Guide to Their Features

What is an Online UPS System?

An Online UPS system, or Uninterruptible Power Supply, is designed to provide continuous power to critical devices by converting incoming AC power to DC, and then back to AC through a double-conversion process. This sophisticated technology ensures a seamless supply of clean and stable power, safeguarding essential operations from disruptions. It’s crucial in environments such as data centers and hospitals, where even a slight power interruption could lead to catastrophic consequences.

The double-conversion process is central to the function of an Online UPS. It involves taking the AC power supplied by utilities, converting it into DC power, and then reconverting it back to AC power. This continuous energy transformation effectively isolates connected equipment from voltage fluctuations, surges, power sags, or outright blackouts. The result is a reliable power backup system that delivers a consistently stable voltage output, protecting sensitive electronics from damages caused by irregular power supply.

Understanding the differences between online and offline UPS systems is vital for proper application. While an offline UPS only activates when it detects a power loss, providing backup power when the main source fails, an Online UPS continuously provides power without interruption. This constant power supply ensures that no transitional delay occurs, making the Online UPS ideal for critical applications requiring a high degree of power stability and quality. This distinction aids businesses and institutions in selecting the appropriate UPS power supply for their specific needs, balancing cost with operational requirements.

Key Features of Online UPS Systems

Zero Transfer Time

One of the most significant features of an Online UPS system is its zero transfer time, which ensures a continuous power supply without any delay. This is crucial during power outages, as the system remains operational, safeguarding sensitive equipment from interruptions. Zero transfer time is especially vital for applications that can't tolerate even a microsecond of power interruption, like financial transaction systems or intricate server operations. These systems demand unbroken continuity to function correctly, making zero transfer time a critical feature.

Continuous Power Supply

Online UPS systems deliver a continuous power supply by filtering out electrical noise and stabilizing voltage levels regardless of utility power quality. This capability makes them indispensable in sectors like hospitals and data centers where equipment performance and reliability are paramount. In these environments, maintaining a stable power supply is essential to prevent data loss and ensure operational efficiency and safety. By providing clean and sustained power, online UPS units help avoid potential disruptions caused by power irregularities.

Advanced Battery Management

Advanced battery management is another vital feature of Online UPS systems, focusing on prolonging battery life and optimizing performance. These systems continuously monitor battery health, charge levels, and temperature, ensuring efficient operation. Features such as smart charging and predictive maintenance further enhance reliability by providing alerts for necessary replacements, aligning with proactive management strategies. This foresight minimizes downtime and contributes to a systematic approach to power backup management.

Benefits of Using Online UPS Systems

Protection Against Power Disturbances

Online UPS systems provide robust protection against various power disturbances, including surges, sags, and complete outages. This ensures sensitive equipment operates without sustaining damage. Businesses encounter significant losses due to power disturbances, which justify the investment in these systems. By continuously conditioning and managing the power supply, Online UPS units effectively mitigate these risks, safeguarding equipment functionality and business operations.

Improved Power Quality

By continuously regulating voltage and frequency, Online UPS systems substantially improve overall power quality. This enhanced power quality is essential, especially for sensitive applications that rely heavily on clean and reliable power sources. Research indicates that poor power quality can lead to frequent equipment failures, increased energy costs, and substantial operational inefficiencies. Therefore, adopting an Online UPS can lead to more stable operations and lower unexpected technical interruptions.

Enhanced Equipment Longevity

Using an Online UPS system not only shields against power interruptions but also significantly enhances the longevity of connected equipment. This is achieved by preventing wear and tear often caused by electrical backlashes or fluctuations. The prolonged life of equipment results in reduced operating costs and minimizes the frequency of replacements. Consequently, this aids in bolstering overall operational efficiency over time, making Online UPS systems a prudent long-term investment.

Exploring Eaton Online UPS Systems

Eaton 9PX Series

The Eaton 9PX series is an exemplary choice for IT environments, providing robust power protection with an impressive efficiency rating of up to 98%. This series is particularly suited for small to mid-sized applications, ensuring reliable power management. Key features include advanced energy metering and scalable runtime options, which allow businesses to tailor power solutions to their specific needs. The 9PX series not only ensures uninterrupted power supply but also integrates smoothly into existing infrastructures, making it an indispensable component of modern power backup strategies.

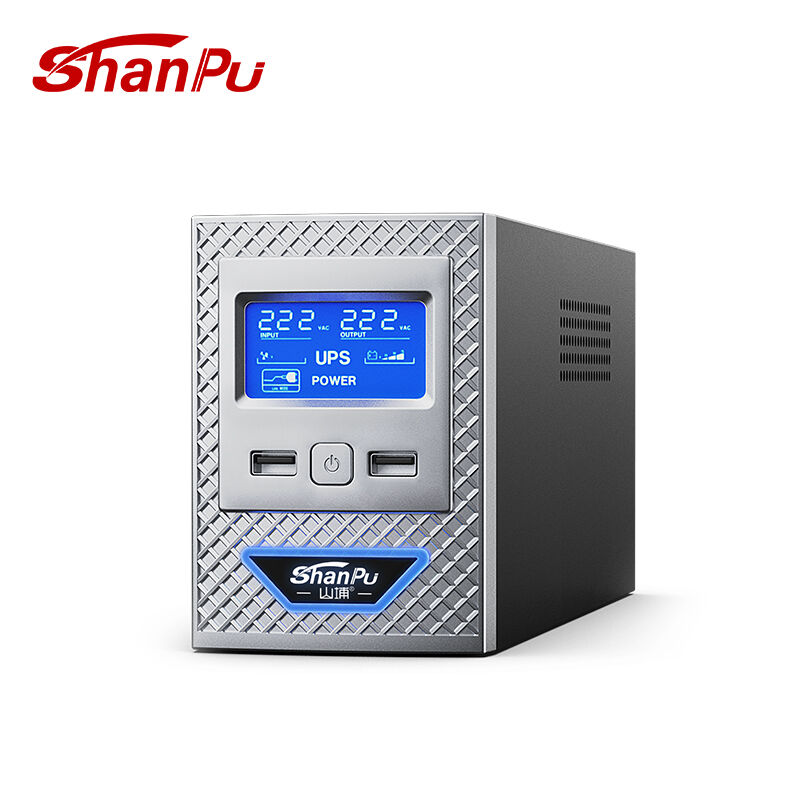

BT600VA-3000VA(LED)

Ideal for an array of devices including personal computers, printers, and POS terminals, this model ranges in capacity up to 3KVA/1800W and provides comprehensive voltage protection and efficiency.

Eaton 93E Series

Tailored for mission-critical applications, the Eaton 93E series delivers high performance within a compact footprint. Its cutting-edge high-efficiency technology not only minimizes operational costs but also ensures reliable power supply for essential systems. This series excels in integrating superior diagnostic and preventive maintenance features, which are crucial for maintaining continuous system uptime. For businesses looking to safeguard crucial infrastructure from unexpected power interruptions, the 93E series offers one of the most effective online UPS solutions available.

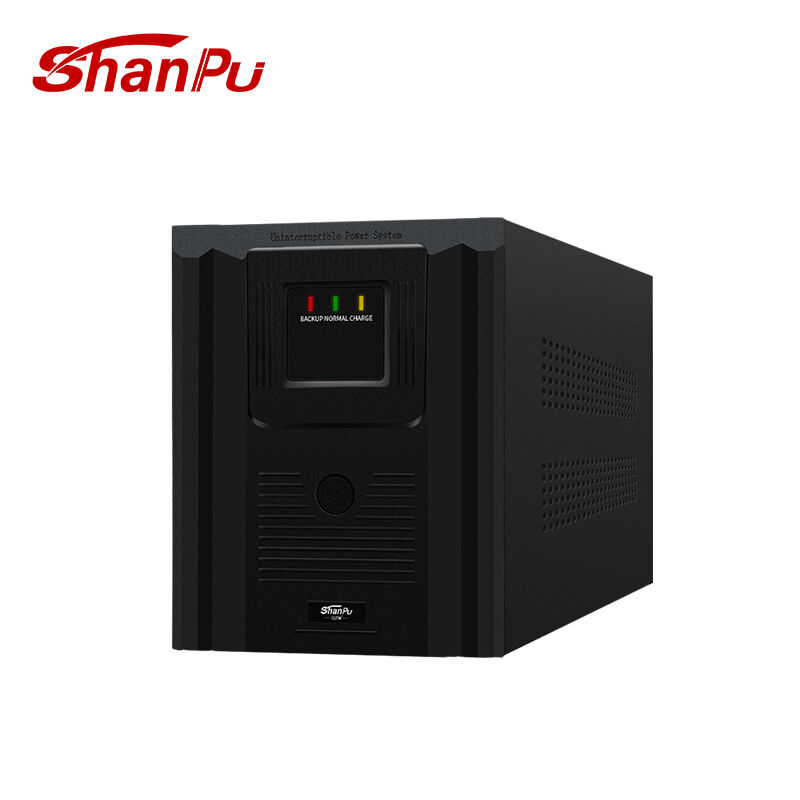

MT500VA-3000VA

Designed for operations involving personal computers, printers, and more, this model offers versatility with capacities reaching up to 3KVA/1800W, providing essential protection and durability.

Eaton 9SX Series

The Eaton 9SX series is a cost-effective solution for businesses needing reliable power protection without compromising on performance. Its adaptability, offered through both line-interactive and online modes, makes it suitable for various load requirements across different industries. This series stands out for providing advanced protection, ensuring that operations remain unaffected by potential power disturbances. The Eaton 9SX series is an ideal choice for companies seeking dependable and scalable UPS power supply systems that enhance operational resilience.

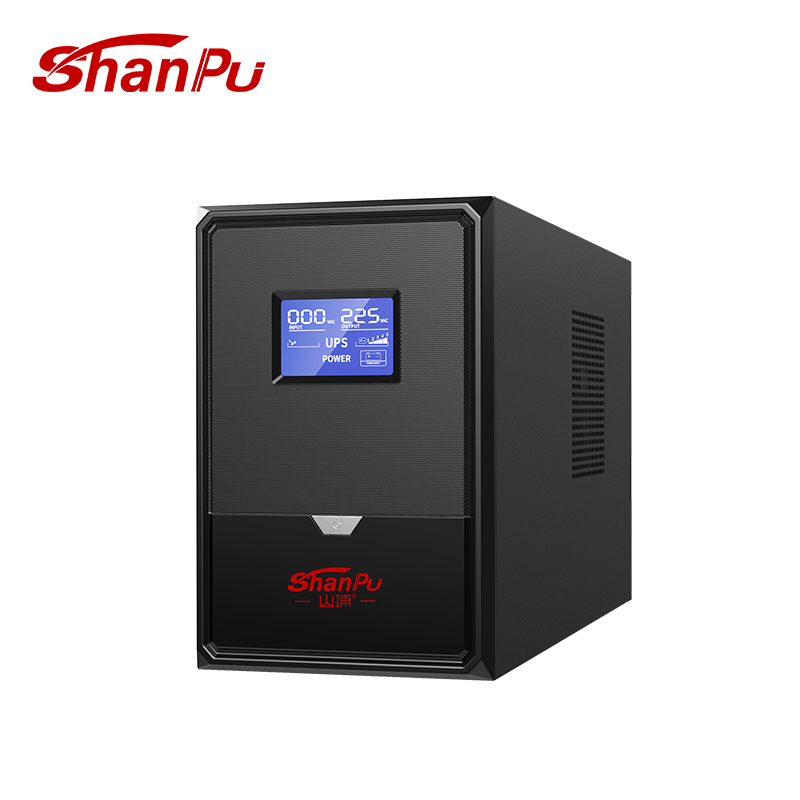

SP650VA-3000VA

From handling personal computers to routers, this model with up to 3KVA/1800W capacity provides effective power backup, ensuring stability and reliability for critical operations.

Applications of Online UPS Systems

Data Centers and IT Infrastructure

Online UPS systems are critical in safeguarding data centers and IT infrastructure from unexpected power failures. These systems ensure continuous power supply, protecting servers, network equipment, and critical data from outages that could lead to significant operational disruptions. The necessity of these solutions is underscored by data indicating that the average cost of data center downtime can soar to $7,900 per minute. Thus, integrating a UPS power backup is essential for maintaining operational continuity and minimizing financial losses, justifying its integral role in IT environments.

Healthcare Facilities

Healthcare facilities rely on Online UPS systems to guarantee uninterrupted power for critical medical equipment, especially during surgeries and other vital health procedures. Without a steady power supply, medical devices could fail, leading to severe repercussions, including risks to patient safety and potential non-compliance with health regulations. Research has demonstrated that equipment failure in hospitals can have dire consequences, making the uninterruptible power supply indispensable in maintaining a reliable healthcare environment.

Industrial Automation

In the realm of industrial automation, Online UPS systems prove indispensable by providing continuous operational power, a crucial factor in maintaining smooth workflows and preventing costly production downtimes. Industries that incorporate these systems report significantly reduced productivity losses, underscoring the value of integrating a reliable UPS power supply within their power strategy. By ensuring a stable power environment, businesses in various sectors can operate efficiently, minimizing disruptions and safeguarding their profits.

Choosing the Right Online UPS System

Assessing Power Requirements

Understanding your power requirements is crucial when selecting an Online UPS system. This process involves calculating the total wattage of all connected devices to determine the UPS capacity needed. Businesses can efficiently assess their needs by using a power calculator, ensuring they select a UPS with the appropriate capacity. This ensures optimal performance and prevents overloading the UPS system, ultimately safeguarding the connected equipment.

Understanding Runtime Needs

Evaluating runtime needs is essential for ensuring that an Online UPS system can provide adequate power during outages. The runtime varies based on the load and application type; hence, it’s imperative to assess how long crucial equipment must operate during a power loss. Additionally, understanding the frequency of power outages in your area helps in determining the appropriate UPS specifications to meet operational time requirements.

Scalability and Future Expansion

Selecting a scalable Online UPS system is vital for accommodating future business growth. A scalable system allows your power solution to support increased loads as needed. By considering future expansion plans, businesses can choose UPS systems with modular designs or expandable runtimes. This ensures that the power supply can adapt to ongoing operational demands, thereby future-proofing the investment.

Maintenance and Troubleshooting Tips

Regular Battery Checks

Conducting regular battery checks is essential for maintaining the health of an Online UPS. This involves inspecting the charge levels, physical conditions, and expiry dates of the batteries. According to research from UPS manufacturers, routine maintenance can significantly prolong battery life, which ultimately results in more cost-effective power solutions. By routinely monitoring these aspects, businesses can ensure the longevity of their UPS systems and avoid unexpected downtime due to battery failure.

Monitoring System Performance

Monitoring system performance using specialized tools and software can alert you to potential issues before they become critical, thus ensuring optimal UPS operation. Key performance metrics such as output voltage, frequency stability, and load percentages should be actively tracked. By keeping an eye on these metrics, businesses can maintain effective operation and avoid system disruptions, ensuring seamless functionality of their critical equipment during power disturbances.

Common Issues and Solutions

Understanding common issues like battery failure and overheating, and knowing how to troubleshoot them, can prevent system failures and extend the longevity of your UPS. It is important to provide a baseline for issue resolution; for instance, an overheating UPS may be addressed by ensuring proper ventilation. By familiarizing yourself with typical problems and their solutions, such as verifying battery connections or clearing vents, organizations can maintain system reliability and prevent costly disruptions.
