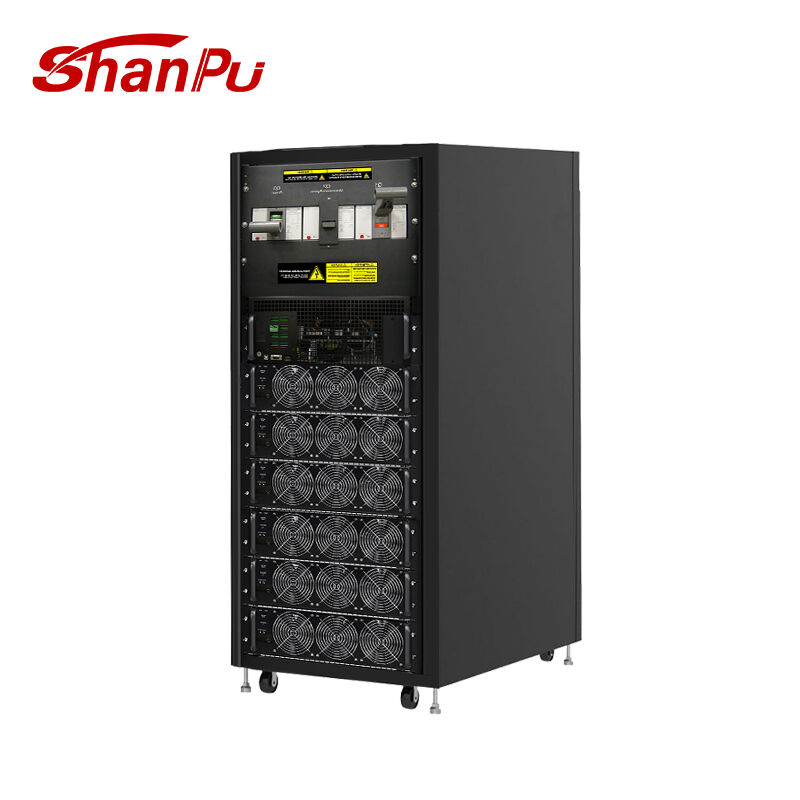

SKRM 90KVA-600KVA
-
Double conversion online UPS, up to 96% efficiency
-
DSP modules parallel control design , Improve machine performance and capacity extensibility
-
Output factor 1
-
Power modules, STS modules and batteries
-
Module modular design for easy updating
-
N+1 or N+R parallel redundant applications
-
Designed to increase system flexibility
-
Modular design applied to power modules STS modules and battery modules
-
Easy to maintain, reduces after-sales maintenance fee
-
Adjustable charging current, max current up to 8A
- 5.7" LCD graphic design
- Overview
- Recommended Products
Product parameters:
| Model | SKRM 90/15U |
| Single | Three phase in single phase out |
| Power | 90KW or 60KW |
| Battery Mode | External Battery Pack |
| Batter module capacity |
PM 20KVA: 20KVA/20KW PM 30KVA: 30KVA/30KW |
| Installable power modules amounts | 3 |
| Installable battery modules amounts | 3 |
| Input | |
| Rated voltage | 3×380VAC/400VAC/415VAC (three-phase+N) |
| Voltage range | 100% Load, 305-478VAC; 70% Load208-304VAC |
| Rated frequency | 50/60Hz Auto sense |
| Frequency range | 40HZ-70HZ |
| Input factor | 100%Load>0.99; 50% Load>0.98 |
| (THDI) | <3% @ 100% Load |
| Output | |
| Rated voltage | 3×380VAC/400VAC/415VAC (3X+N) |
| Voltage stability (steady state) |
≤±1%; ≤±2% ≤ ±1% typical (balanced loads); ≤ ±2% typical (unbalanced loads) |
| Voltage stability (transient) | ≤±5% typical |
| Rated frequency | 50/60HZ |
|
Frequency range (synchronization range) |
46HZ-54HZ/56HZ-64HZ |
| Overload capacity | 60 minutes at 110% load, 10 minutes at 125% load, 60seconds at 150% load, 200 milliseconds at >150% load |
| Waveform balance | ≤1.5%THD(Linear load ); ≤4%THD(Nonlinear load ) |
| Efficiencies | up to 94.5% |
| (Batteries/Charge) | |
| Rated voltage | +/ — 216V (12V×36) |
| Max voltage | +/ — 240V (12V×40) |
| Min voltage | +/ — 192V (12V×32) |
| Float charge voltage | 2.25VCell |
| High charge voltage | 2.35VCell |
| temperature compensation | Yes |
| Max.charging current | 8A |
| Physical | |
| Dimensions(L*W*H) | 1100*514*763 |
| Work temperature | 0-40℃ |
| Humidity | 0-95% non-condensing |
| Height | <1000M rate power |
| IP class | IP 20 |
| Control management | |
| RS-232/USB | Be in favor of support Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux and MAC |
| SNMP (Optional) | Support SNMP and network management |
| Safety standard | IEC/EC 60950-1; IEC/EC 62040-1 |
Product parameters:
| Model | SKRM 90/30U |
| Single | Three phase in single phase out |
| Power | 90KW |
| Battery Mode | Inner battery module optional |
| Batter module capacity |
PM 30KVA: 30KVA/30KW |
| Installable power modules amounts | 3 |
| Installable battery modules amounts | 3 |
| Input | |
| Rated voltage | 3×380VAC/400VAC/415VAC (three-phase+N) |
| Voltage range | 100% Load, 305-478VAC; 70% Load208-304VAC |
| Rated frequency | 50/60Hz Auto sense |
| Frequency range | 40HZ-70HZ |
| Input factor | 100%Load>0.99; 50% Load>0.98 |
| (THDI) | <3% @ 100% Load |
| Output | |
| Rated voltage | 3×380VAC/400VAC/415VAC (3X+N) |
| Voltage stability (steady state) |
≤±1%; ≤±2% ≤ ±1% typical (balanced loads); ≤ ±2% typical (unbalanced loads) |
| Voltage stability (transient) | ≤±5% typical |
| Rated frequency | 50/60HZ |
|
Frequency range (synchronization range) |
46HZ-54HZ/56HZ-64HZ |
| Overload capacity | 60 minutes at 110% load, 10 minutes at 125% load, 60seconds at 150% load, 200 milliseconds at >150% load |
| Waveform balance | ≤1.5%THD(Linear load ); ≤4%THD(Nonlinear load ) |
| Efficiencies | up to 94.5% |
| (Batteries/Charge) | |
| Rated voltage | +/ — 216V (12V×36) |
| Max voltage | +/ — 240V (12V×40) |
| Min voltage | +/ — 192V (12V×32) |
| Float charge voltage | 2.25VCell |
| High charge voltage | 2.35VCell |
| temperature compensation | Yes |
| Max.charging current | 8A |
| Physical | |
| Dimensions(L*W*H) | 1100*600*1475 |
| Work temperature | 0-40℃ |
| Humidity | 0-95% non-condensing |
| Height | <1000M rate power |
| IP class | IP 20 |
| Control management | |
| RS-232/USB | Be in favor of support Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux and MAC |
| SNMP (Optional) | Support SNMP and network management |
| Safety standard | IEC/EC 60950-1; IEC/EC 62040-1 |
Product parameters:
| Model | SKRM 120/42U |
| Single | Three phase in single phase out |
| Power | 120KW |
| Battery Mode | Inner battery module optional |
| Batter module capacity |
PM 30KVA: 30KVA/30KW |
| Installable power modules amounts | 4 |
| Installable battery modules amounts | 5 |
| Input | |
| Rated voltage | 3×380VAC/400VAC/415VAC (three-phase+N) |
| Voltage range | 100% Load, 305-478VAC; 70% Load208-304VAC |
| Rated frequency | 50/60Hz Auto sense |
| Frequency range | 40HZ-70HZ |
| Input factor | 100%Load>0.99; 50% Load>0.98 |
| (THDI) | <3% @ 100% Load |
| Output | |
| Rated voltage | 3×380VAC/400VAC/415VAC (3X+N) |
| Voltage stability (steady state) |
≤±1%; ≤±2% ≤ ±1% typical (balanced loads); ≤ ±2% typical (unbalanced loads) |
| Voltage stability (transient) | ≤±5% typical |
| Rated frequency | 50/60HZ |
|
Frequency range (synchronization range) |
46HZ-54HZ/56HZ-64HZ |
| Overload capacity | 60 minutes at 110% load, 10 minutes at 125% load, 60seconds at 150% load, 200 milliseconds at >150% load |
| Waveform balance | ≤1.5%THD(Linear load ); ≤4%THD(Nonlinear load ) |
| Efficiencies | up to 94.5% |
| (Batteries/Charge) | |
| Rated voltage | +/ — 216V (12V×36) |
| Max voltage | +/ — 240V (12V×40) |
| Min voltage | +/ — 192V (12V×32) |
| Float charge voltage | 2.25VCell |
| High charge voltage | 2.35VCell |
| temperature compensation | Yes |
| Max.charging current | 8A for 30KW modules; 6A for 20KW modules |
| Physical | |
| Dimensions(L*W*H) | 1100*600*2010 |
| Work temperature | 0-40℃ |
| Humidity | 0-95% non-condensing |
| Height | <1000M rate power |
| IP class | IP 20 |
| Control management | |
| RS-232/USB | Be in favor of support Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux and MAC |
| SNMP (Optional) | Support SNMP and network management |
| Safety standard | IEC/EC 60950-1; IEC/EC 62040-1 |
Product parameters:
| Model | SKRM 120/30U |
| Single | Three phase in single phase out |
| Power | 120KW or 80KW |
| Battery Mode | External Battery Pack |
| Batter module capacity |
PM 20KVA: 20KVA/20KWPM 30KVA: 30KVA/30KW |
| Installable power modules amounts | 4 |
| Installable battery modules amounts | — |
| Input | |
| Rated voltage | 3×380VAC/400VAC/415VAC (three-phase+N) |
| Voltage range | 100% Load, 305-478VAC; 70% Load208-304VAC |
| Rated frequency | 50/60Hz Auto sense |
| Frequency range | 40HZ-70HZ |
| Input factor | 100%Load>0.99; 50% Load>0.98 |
| (THDI) | <3% @ 100% Load |
| Output | |
| Rated voltage | 3×380VAC/400VAC/415VAC (3X+N) |
| Voltage stability (steady state) |
≤±1%; ≤±2% ≤ ±1% typical (balanced loads); ≤ ±2% typical (unbalanced loads) |
| Voltage stability (transient) | ≤±5% typical |
| Rated frequency | 50/60HZ |
|
Frequency range (synchronization range) |
46HZ-54HZ/56HZ-64HZ |
| Overload capacity | 60 minutes at 110% load, 10 minutes at 125% load, 60seconds at 150% load, 200 milliseconds at >150% load |
| Waveform balance | ≤1.5%THD(Linear load ); ≤4%THD(Nonlinear load ) |
| Efficiencies | up to 94.5% |
| (Batteries/Charge) | |
| Rated voltage | +/ — 216V (12V×36) |
| Max voltage | +/ — 240V (12V×40) |
| Min voltage | +/ — 192V (12V×32) |
| Float charge voltage | 2.25VCell |
| High charge voltage | 2.35VCell |
| temperature compensation | Yes |
| Max.charging current | 8A for 30KW modules; 6A for 20KW modules |
| Physical | |
| Dimensions(L*W*H) | 1100*600*1475 |
| Work temperature | 0-40℃ |
| Humidity | 0-95% non-condensing |
| Height | <1000M rate power |
| IP class | IP 20 |
| Control management | |
| RS-232/USB | Be in favor of support Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux and MAC |
| SNMP (Optional) | Support SNMP and network management |
| Safety standard | IEC/EC 60950-1; IEC/EC 62040-1 |
Product parameters:
| Model | SKRM 180/30U |
| Single | Three phase in single phase out |
| Power |
180KW or 80KW |
| Battery Mode | External Battery Pack |
| Batter module capacity |
PM 20KVA: 20KVA/20KW |
| Installable power modules amounts | 6 |
| Installable battery modules amounts | — |
| Input | |
| Rated voltage | 3×380VAC/400VAC/415VAC (three-phase+N) |
| Voltage range | 100% Load, 305-478VAC; 70% Load208-304VAC |
| Rated frequency | 50/60Hz Auto sense |
| Frequency range | 40HZ-70HZ |
| Input factor | 100%Load>0.99; 50% Load>0.98 |
| (THDI) | <3% @ 100% Load |
| Output | |
| Rated voltage | 3×380VAC/400VAC/415VAC (3X+N) |
| Voltage stability (steady state) |
≤±1%; ≤±2% ≤ ±1% typical (balanced loads); ≤ ±2% typical (unbalanced loads) |
| Voltage stability (transient) | ≤±5% typical |
| Rated frequency | 50/60HZ |
|
Frequency range (synchronization range) |
46HZ-54HZ/56HZ-64HZ |
| Overload capacity | 60 minutes at 110% load, 10 minutes at 125% load, 60seconds at 150% load, 200 milliseconds at >150% load |
| Waveform balance | ≤1.5%THD(Linear load ); ≤4%THD(Nonlinear load ) |
| Efficiencies | up to 94.5% |
| (Batteries/Charge) | |
| Rated voltage | +/ — 216V (12V×36) |
| Max voltage | +/ — 240V (12V×40) |
| Min voltage | +/ — 192V (12V×32) |
| Float charge voltage | 2.25VCell |
| High charge voltage | 2.35VCell |
| temperature compensation | Yes |
| Max.charging current | 8A for 30KW modules; 6A for 20KW modules |
| Physical | |
| Dimensions(L*W*H) | 1100*6100*1475 |
| Work temperature | 0-40℃ |
| Humidity | 0-95% non-condensing |
| Height | <1000M rate power |
| IP class | IP 20 |
| Control management | |
| RS-232/USB | Be in favor of support Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux and MAC |
| SNMP (Optional) | Support SNMP and network management |
| Safety standard | IEC/EC 60950-1; IEC/EC 62040-1 |
Product parameters:
| Model | SKRM 200/42U |
| Single | Three phase in single phase out |
| Power | 200KW |
| Battery Mode | External Battery Pack |
| Batter module capacity |
PM 20KVA: 20KVA/20KW |
| Installable power modules amounts | 10 |
| Installable battery modules amounts | — |
| Input | |
| Rated voltage | 3×380VAC/400VAC/415VAC (three-phase+N) |
| Voltage range | 100% Load, 305-478VAC; 70% Load208-304VAC |
| Rated frequency | 50/60Hz Auto sense |
| Frequency range | 40HZ-70HZ |
| Input factor | 100%Load>0.99; 50% Load>0.98 |
| (THDI) | <3% @ 100% Load |
| Output | |
| Rated voltage | 3×380VAC/400VAC/415VAC (3X+N) |
| Voltage stability (steady state) |
≤±1%; ≤±2% ≤ ±1% typical (balanced loads); ≤ ±2% typical (unbalanced loads) |
| Voltage stability (transient) | ≤±5% typical |
| Rated frequency | 50/60HZ |
|
Frequency range (synchronization range) |
46HZ-54HZ/56HZ-64HZ |
| Overload capacity | 60 minutes at 110% load, 10 minutes at 125% load, 60seconds at 150% load, 200 milliseconds at >150% load |
| Waveform balance | ≤1.5%THD(Linear load ); ≤4%THD(Nonlinear load ) |
| Efficiencies | up to 94.5% |
| (Batteries/Charge) | |
| Rated voltage | +/ — 216V (12V×36) |
| Max voltage | +/ — 240V (12V×40) |
| Min voltage | +/ — 192V (12V×32) |
| Float charge voltage | 2.25VCell |
| High charge voltage | 2.35VCell |
| temperature compensation | Yes |
| Max.charging current | 6A |
| Physical | |
| Dimensions(L*W*H) | - |
| Work temperature | 0-40℃ |
| Humidity | 0-95% non-condensing |
| Height | <1000M rate power |
| IP class | IP 20 |
| Control management | |
| RS-232/USB | Be in favor of support Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux and MAC |
| SNMP (Optional) | Support SNMP and network management |
| Safety standard | IEC/EC 60950-1; IEC/EC 62040-1 |
Product parameters:
| Model | SKRM 210-600KW |
| Single | Three phase in single phase out |
| Power |
210KW-600KW |
| Battery Mode | External Battery Pack |
| Batter module capacity |
PM 30KVA: 30KVA/30KW PM 50KVA: 50KVA/50KW |
| Installable power modules amounts | ＞10 |
| Installable battery modules amounts | — |
| Input | |
| Rated voltage | 3×380VAC/400VAC/415VAC (three-phase+N) |
| Voltage range | 100% Load, 305-478VAC; 70% Load208-304VAC |
| Rated frequency | 50/60Hz Auto sense |
| Frequency range | 40HZ-70HZ |
| Input factor | 100%Load>0.99; 50% Load>0.98 |
| (THDI) | <3% @ 100% Load |
| Output | |
| Rated voltage | 3×380VAC/400VAC/415VAC (3X+N) |
| Voltage stability (steady state) |
≤±1%; ≤±2% ≤ ±1% typical (balanced loads); ≤ ±2% typical (unbalanced loads) |
| Voltage stability (transient) | ≤±5% typical |
| Rated frequency | 50/60HZ |
|
Frequency range (synchronization range) |
46HZ-54HZ/56HZ-64HZ |
| Overload capacity | 60 minutes at 110% load, 10 minutes at 125% load, 60seconds at 150% load, 200 milliseconds at >150% load |
| Waveform balance | ≤1.5%THD(Linear load ); ≤4%THD(Nonlinear load ) |
| Efficiencies | up to 94.5% |
| (Batteries/Charge) | |
| Rated voltage | +/ — 216V (12V×36) |
| Max voltage | +/ — 240V (12V×40) |
| Min voltage | +/ — 192V (12V×32) |
| Float charge voltage | 2.25VCell |
| High charge voltage | 2.35VCell |
| temperature compensation | Yes |
| Max.charging current | 8A |
| Physical | |
| Dimensions(L*W*H) | - |
| Work temperature | 0-40℃ |
| Humidity | 0-95% non-condensing |
| Height | <1000M rate power |
| IP class | IP 20 |
| Control management | |
| RS-232/USB | Be in favor of support Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux and MAC |
| SNMP (Optional) | Support SNMP and network management |
| Safety standard | IEC/EC 60950-1; IEC/EC 62040-1 |
