Wall Mounted LiFePO4 Battery Pack 5.12–10.24kWh
Energy Storage Lithium Battery Pack, Compatible with Solar Inverter, for Residential and Commercial Use

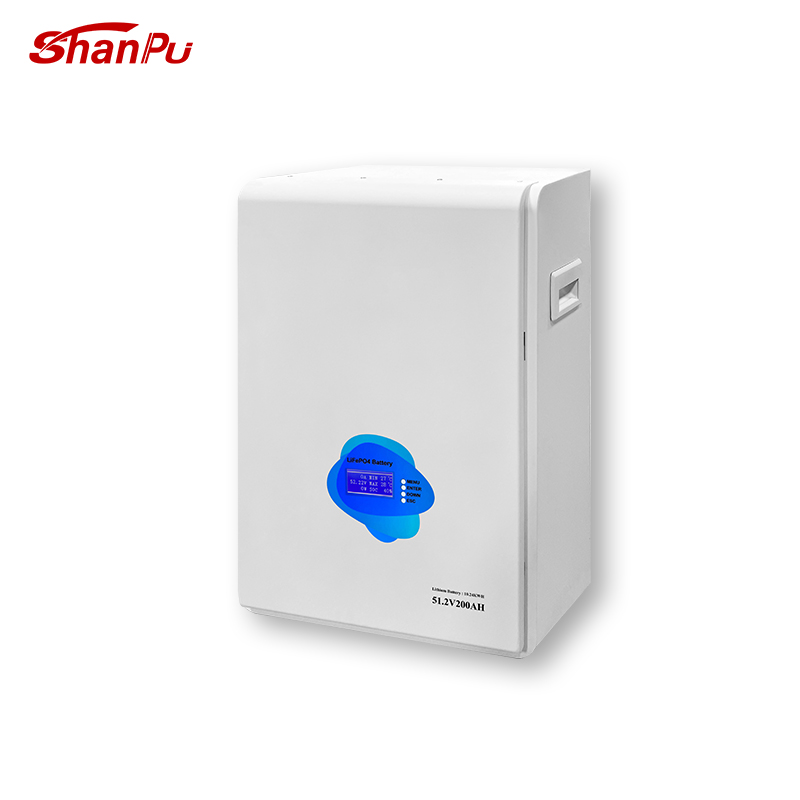

Wall mounted lithium battery pack 5.12kWh and 10.24kWh
Key Features of ShanPu Wall Mounted LiFePO4 Battery Pack

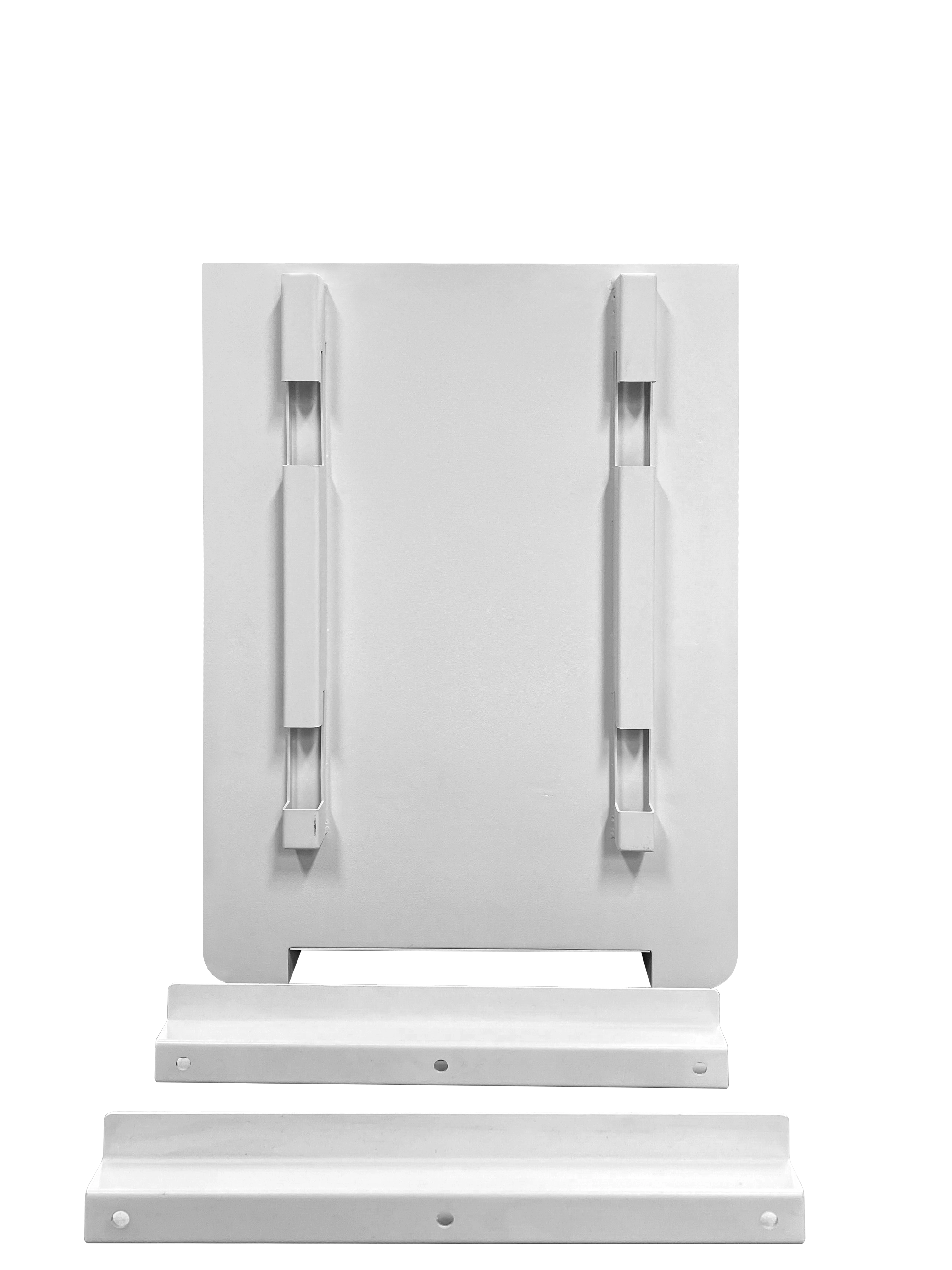

- Ultra-thin wall-mounted design — only 155mm deep, mounts directly on a wall to save floor space in homes and small businesses.
- 5.12kWh and 10.24kWh models — WM512100 and WM512200 cover typical home solar self-consumption and backup loads.
- LiFePO4 cells with built-in BMS — overcharge, over-discharge and short-circuit protection for safe daily operation.
- Long service life — up to 6,000 cycles for reliable performance across years of solar charging and discharging.
- Wide 51.2V platform with 40-58.4V operating range — compatible with mainstream solar inverter systems.
- RS485 / CAN / RS232 communication — enables inverter integration and remote energy management.
- Parallel expansion up to 6 units — total storage capacity can be scaled as household or business needs grow.
- 5-year warranty and full certifications — IEC62109, UL1741, FCC and RoHS compliance for global projects.
Application of ShanPu wall mounted lithium iron phosphate battery pack
Household solar self consumption - storing surplus solar energy during the day and discharging it at night to reduce grid electricity bills. Pair the WM series with your existing photovoltaic inverter.
Home backup and small office UPS applications - keep refrigerators, lights, routers, and home office equipment running during power outages. The WM series achieves 0ms level response through compatible inverters and up to 6 parallel units, supporting critical loads for several hours.
Small commercial and retail energy storage - reduces peak power consumption in stores, clinics, and small offices, while providing backup for cash registers and security systems.
Scale up or customize
Wall Mounted LiFePO4 Battery Technical Specifications:
|
Model |
WM 512100 | WM 512200 |
| COMPREHENSIVE PARAMETERS | ||
| Battery Voltage | 40V-58.4V | |
| Storage Capacity | 5120Wh | 10240Wh |
| Weight | 45.5 kgs | 116.1 KGS |
| Colour | White | |
| External Dimension | 601.5*400*155mm | 651.5*445*235mm |
| Warranty | 5 Years | |
| BATTERY MODULE PARAMETERS | ||
| Type of Battery | LiFePO4 | |
| Capacity | 102Ah | 206Ah |
| Battery Cycle Life | 6000 | |
| Modular Structure | 1P16S | |
| OVERALL CHARACTERISTIC | ||
| Capacity for assembled cell discharging by 0.2C | ≥100Ah | ≥200Ah |
| Standard Charge Condition |
Charge with 0.5C constant current and 58.4V constant voltage. charge to 58.4V; continue charging till current declines to 0.01C. |
|
| Maximum Charge Current | 100A | 200A |
| Maximum Discharge Current | 100A | 200A |
| Internal Resistance | ≤80mΩ Assemblage impedance | |
| Cycle Life | 26000@25°C, 80% EOL | |
| Recommend Charging Temperature | 0℃-50℃ | |
| Recommend Discharging Temperature | -15°C-50°C | |
| Storage Temperature | -15°C-50°C | |
| Humidity | 0-90% | |
| Maximum Altitude | 3000m | |
| FUNCTIONAL CONFIGURATION | ||
| LED Panel (Light Emitting Diode) | YES | |
| Communication | RS485, CAN, RS232 | |
| IP Rating | IP21 | |
| Parallel Capability | Up to 6 units | |
| LED Power Display | Traffic Light Display | |
| BMS Control | Control Battery Performance | |
| Package Size |
675*515*265mm (Carton) 685*525*280mm (UN Wooden) |
725*520*310mm (Carton) 735*530*325mm (UN Wooden) |
| CERTIFICATION | ||
| Safety | IEC62109-1, IEC62109-2, UL1741 | |
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | |
| RoHS |
Yes |
|
FAQ
What is a wall-mounted LiFePO4 battery pack used for?
A wall-mounted LiFePO4 battery pack is used for solar energy storage, UPS backup power, off-grid power systems, residential energy storage, commercial buildings, and industrial equipment backup applications.
What capacity options are available?
This series includes 5.12kWh and 10.24kWh models, suitable for different backup time and energy storage requirements.
What type of battery does this product use?
The battery uses LiFePO4 lithium iron phosphate cells, which provide stable performance, high safety, long cycle life, and good thermal stability.
Is this battery compatible with solar inverters?
Yes. The battery supports RS485, CAN, and RS232 communication interfaces, making it suitable for integration with compatible solar inverters and energy storage systems.
Can multiple battery packs be connected together?
Yes. This wall mounted battery pack supports parallel expansion of up to 6 units, allowing users to increase total energy storage capacity according to project needs.
Does the battery include BMS protection?
Yes. The built-in BMS helps control battery performance and provides protection against overcharge, over-discharge, short circuit, and abnormal operating conditions.
What is the cycle life of the battery?
The battery supports up to 6000 cycles, making it suitable for long-term residential, commercial, and backup power applications.
What applications is this battery suitable for?
It is suitable for solar energy storage, home backup power, UPS systems, off-grid power supply, commercial facilities, and industrial energy storage projects.
