Off-Grid Vertical Stacked Solar Storage System 5kWh–10kWh
Vertical stacked off-grid solar storage system with 5kW inverter, 5–10kWh LiFePO4 battery, built-in BMS, solar panel compatibility and emergency backup power for homes, commercial buildings and remote areas.

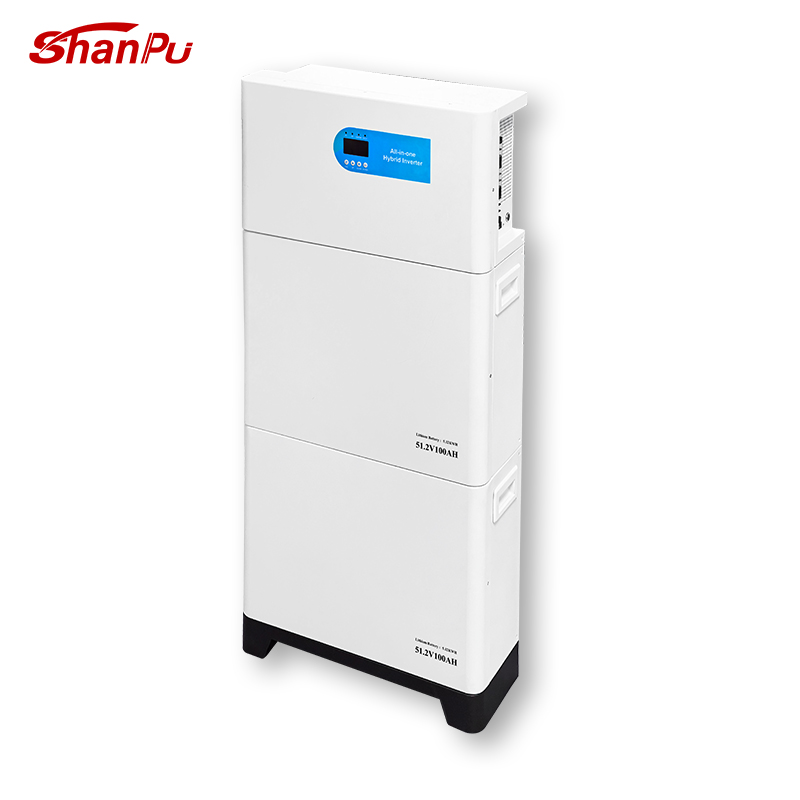

SHANPU off-grid vertical stacked solar storage system integrates solar power generation, LiFePO4 battery storage, inverter output and intelligent energy management in one compact solution. Available in 5kWh and 10kWh configurations with a 5kW inverter, the system is designed for residential homes, commercial buildings, industrial parks and remote off-grid areas.
With long-life LiFePO4 battery cells, built-in BMS protection, RS485/CAN/RS232 communication, LED power display and vertical stacked installation, it helps users store solar energy, improve self-consumption, provide emergency backup power and reduce dependence on unstable grid power.
-
Key Features of SHANPU Off-Grid Vertical Stacked Solar Storage System
• 5kWh and 10kWh energy storage options for flexible power needs
• Integrated 5kW inverter for off-grid solar power applications
• LiFePO₄ battery cells for high safety, stability and long cycle life
• Built-in BMS protection to support safer battery operation
• Up to 6000 battery cycles for long-term energy storage use
• RS485, CAN and RS232 communication for system integration
• Vertical stacked design saves installation space
• LED power display for easy system status monitoring
• Suitable for homes, commercial buildings, industrial parks and remote off-grid areas
• Supports solar energy storage, surplus power storage and emergency backup power -
Off-Grid Solar Storage System Technical Specifications:
-
Compare SHANPU 5kWh and 10kWh vertical stacked solar storage system models by battery capacity, inverter power, voltage range, battery type, cycle life, communication interface, dimensions, weight, IP rating and certification standards.
| Model | Vertical 5KWH | Vertical 10 KW.H |
| Comprehensive Parameters | ||
| Battery voltage | 40V-58.4V | |
| Storage Capacity | 5120WH | 10240Wh |
| Net Weight (Kgs) | 68.6 | 120.4 |
| Colour | White | |
| External Dimension (mm) | Inverter: 600*318*210; Battery: 600*430*210 | |
| Warranty | Inverter: 2 years; Battery: 5 years | |
| Battery Module Parameters | ||
| Type of battery | LiFePO4 | |
| Capacity | 100AH | 100 Ah * 2 |
| Battery Cycle Life | 6000 | |
| Modular Structure | 1P16S | 1P16S*2 |
| Overall Characteristic | ||
| Capacity for assembled cell discharging by 0.2C | ≥100Ah | |
| Standard Charge Condition |
Charge with 0.5C constant current and 58.4V constant voltage. charge to 58.4V; continue charging till current declines to 0.01C. |
|
| Maximum Charge Current | 100A | |
| Maximum Discharge Current | ||
| Internal Resistance | ≤80m Assemblage Impedance | |
| Cycle Life | ≥6000 @ 25℃, 80% EOL | |
| Recommend Charging Temperature | 0℃~50 ℃ | |
| Recommend Discharging Temperature | -15℃~50℃ | |
| Storage Temperature | ||
| Humidity | 0-90% | |
| Maximum Altitude | 3000m | |
| Functional Configuration | ||
| LED Panel (Light Emitting Diode) | YES | |
| Communication | RS485, CAN, RS232 | |
| IP Rating | IP21 | |
| Inverter | 5KW | |
| LED Power Display | Traffic Light Display | |
| BMS Control | Control Battery Performance | |
| Gross Weight (Kgs) | 83.6 kg | 147.4 kg |
| Package Size (mm) | 680*510*300 (Inverter); 685*515*400 (Battery) | |
| Certification | ||
| Safety | IEC62109-1, IEC62109-2, UL1741 | |
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | |
| RoHS | Yes | |
FAQ
1. What is an off-grid vertical stacked solar storage system?
An off-grid vertical stacked solar storage system combines solar energy storage, LiFePO₄ battery modules, inverter output and intelligent power management in a compact vertical structure. It is designed to provide independent or backup power where grid power is unavailable or unstable.
2. What capacity options are available?
This system is available in 5kWh and 10kWh configurations, allowing users to choose the right battery capacity according to backup time, load demand and solar power generation needs.
3. What inverter power does this system use?
The system is equipped with a 5kW inverter, suitable for residential backup power, small commercial applications, off-grid systems and remote energy storage projects.
4. What type of battery does the system use?
The system uses LiFePO₄ lithium iron phosphate battery cells, which provide high safety, stable performance, long cycle life and good thermal stability.
5. Can this system work with solar panels?
Yes. This system is designed for solar energy storage applications and can work with compatible solar panels and off-grid solar power systems.
6. Is it suitable for remote areas?
Yes. It is suitable for remote houses, farms, small commercial sites, industrial parks and other areas where grid power is unavailable, unstable or expensive.
7. Does the battery include BMS protection?
Yes. The built-in BMS helps manage battery performance and provides protection for safer and more stable operation.
8. What communication interfaces are supported?
The system supports RS485, CAN and RS232 communication, making it suitable for integration with compatible energy management systems and solar power equipment.
9. How long is the battery cycle life?
The battery supports up to 6000 cycles under proper operating conditions, making it suitable for long-term solar energy storage and backup power applications.
10. What information should I provide to get a quotation?
Please provide your required capacity, application scenario, load power, backup time requirement, solar panel configuration, installation location, destination country and any customization requirements.
