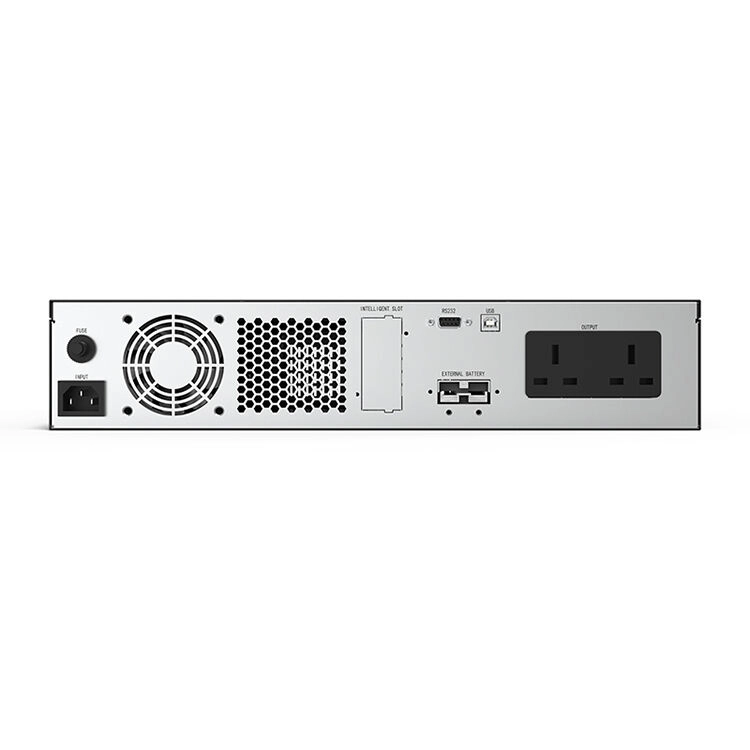

Rack Mount Online UPS 1kVA-10kVA with Lead Acid Battery
High Efficiency Rackmount UPS with Stable Pure Sine Wave Output & AVR for IT Room, Server & Network Devices
Product Features:
- · Trulyachieve online double conversion
- · Equipped with AVR automatic voltage regulation
- · High frequency single-phase pure sine wave
- · Output power factor up to 0.9
- · Customizable voltage 110V/220V
- · Efficientfrequency conversion mode
- · Built in maintenance free lead-acid battery
- · Can install SNMP card to monitor device status in real-time
- · Customizable selection of socket panel
APPLICATIONS:
rack mounted UPS is a high-quality, stable, and reliable power protection developed for the critical load power supply needs of user data center equipment. The product design adopts advanced digital control technology, high power density integration technology, small product size, flexible configuration, and rich expansion functions; Being able to provide the best power environment for loads, especially for critical equipment and equipment with strict power environment requirements, providing more flexible and reliable power protection. From the perspective of voltage regulation output range, frequency range, input noise filtering, and even zero transition time between mains mode and battery mode, 1KVA-10KVA UPS is the best choice. The product is suitable for precision equipment such as data center equipment, enterprise level servers, small and medium-sized local area networks, small data centers, industrial computers, medical equipment, military equipment, etc.
Products specifications:
| Model | C1KR(S) | C2KR(S) | C3KR(S) | C6KR(S) | C10KR(S) | |
| Phase | Single-phase | |||||
| Capacity | 1KVA/1KW | 2KVA/2KW | 3KVA/3KW | 6KVA/4800W | 10KVA/8000W | |
| Input | ||||||
| Input voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |||||
| Voltage range |
55-145VAC/110-300VAC@50% load 85-140VAC/160-280VAC@100%load |
110-300VAC±3%@50% load 176-300VAC±3%@100% load |
||||
| Input frequency | 46-54Hz or 56-64Hz | |||||
| Factor | ≥0.99@100% load | |||||
| Output | ||||||
| Output voltage | 100/110/115/120/127VAC or 200/208/220/230/240VCA | |||||
| Voltage range (battery mode) | ±1% | |||||
| Frequency (synchronous range) | 46-54Hz/56-64Hz | |||||
| Frequency range (Battery Mode) | 50Hz±0.25Hz/60Hz±0.3Hz | 50Hz/60Hz±0.1Hz | ||||
| Peak factor | 3:1 | |||||
| Waveform balance |
≤3%THD Linear Load ≤6%THD Non-linear Load |
|||||
| Transfer time | 0ms | |||||
| Output waveform | Pure Sine Wave | |||||
|
Efficiency |
||||||
| Mains power mode | 92% | 92% | 92% | 92% | 93% | |
| Battery mode | 90% | 90% | 90% | 90% | 91% | |
| Stardard UPS | ||||||
| Stardard UPS |
Battery model | 12V/7AH |
- | |||
| battery amount | 2 | 4 | 4 | - | - | |
| Charging time | 4 hours to be 90% full capacity | - | - | |||
| Max charging current | 1A | - | - | |||
| Charging voltage | 27.4VDC | 54.7VDC | 54.7VDC | - | - | |
|
Machine data |
Size(MM) | 400*438*88 | ||||
| Weight(KG) | 11.2 | 16.3 | 17.2 | - | - | |
| External battery UPS | ||||||
|
External battery UPS |
Battery model | Depends on the applicant | ||||
| Batteries quantity | 2/3 | 4 | 4/6 | 16-20(adjustable) | ||
| Max charging current | 1A/2A/4A/6A adjustable | |||||
| Charging voltage | 27.4/41VDC | 54.7VDC | 54.7/82.1VDC | 218.4VDC(based on 16pcs batteries) | ||
|
Machine data |
Size(MM) | 400*438*88 | ||||
| Weight(KG) | 5.6 | 8.6 | 13 | 17 | ||
| Display instructions | ||||||
| LCD |
Load size,battery capacity,mains mode,battery mode,bypass mode,fault indication | |||||
| Working environment | ||||||
| Humidity |
20-90%RH@0-40 ℃ No condensation | |||||
| Noise |
<50dBA@1M | |||||
| Control management | ||||||
| SmartRS-232/USB |
Be in favor of Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, MAC | |||||
|
Optional SNMP |
Power management supports SNMP management and network management | |||||
