All-in-One Movable Power Station 3.6kW–6kW
All-in-one movable power station with 3.6kW–6kW pure sine wave inverter, 7.68–16kWh battery storage, MPPT solar charging, LCD display and stable AC output for home emergency backup, off-grid power and outdoor energy use.

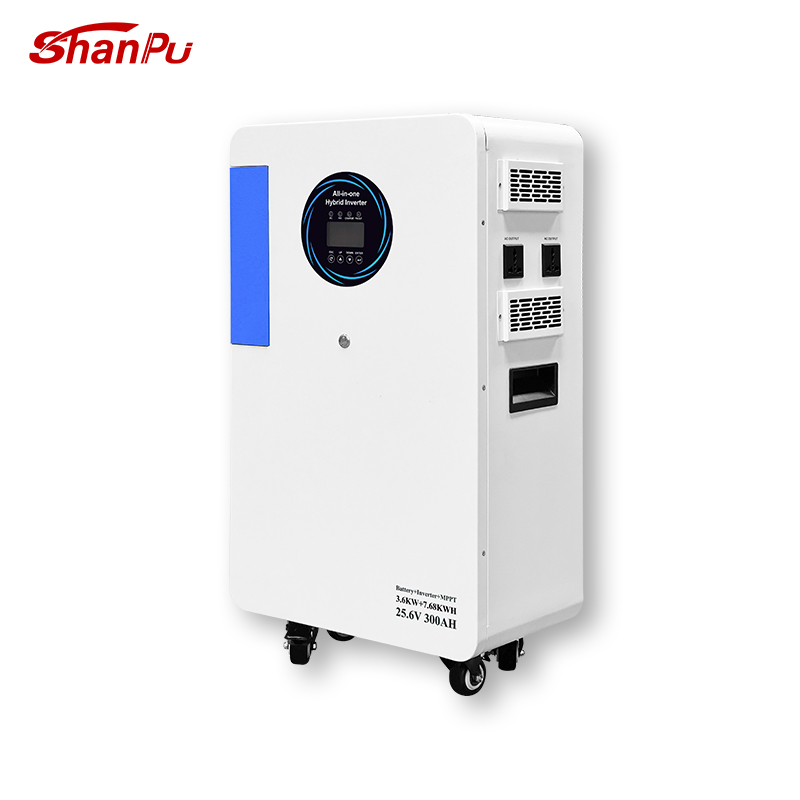

SHANPU all-in-one movable power station integrates a pure sine wave inverter, lithium battery storage, MPPT solar charging and intelligent battery protection in one portable energy storage system. Available with 3.6kW and 6kW inverter options and 7.68kWh or 16kWh battery capacity, it provides stable AC output for home emergency backup, off-grid power supply, outdoor activities, small commercial equipment and mobile energy applications.
The system supports photovoltaic charging and mains charging, delivering clean power for laptops, cameras, projectors, lighting, refrigerators, fans and other household or light commercial devices. With built-in BMS protection, LCD display, high conversion efficiency and reliable lithium battery performance, it is a flexible backup power solution for areas with unstable grid supply or limited access to electricity.
Key Features of SHANPU All-in-One Movable Power Station
• 3.6kW and 6kW inverter power options for different load requirements
• 7.68kWh and 16kWh battery capacity options for flexible backup time
• Pure sine wave output for stable and clean power supply
• MPPT solar charging for improved photovoltaic energy utilization
• Supports both solar charging and mains charging
• Built-in BMS protection for safer battery operation
• LCD display for easy system status monitoring
• Suitable for home emergency backup, off-grid power, outdoor use, small commercial equipment and mobile energy storage
• Compatible with laptops, cameras, lights, refrigerators, fans and other common electrical devices
• Portable integrated design for easier deployment and flexible use
All-in-One Power Station Technical Specifications:
Compare SHANPU 3.6kW and 6kW movable power station models by inverter power, PV input, AC output, MPPT charging, battery capacity, communication interface, operating temperature, protection grade, size and weight.
| Inverter Parameters | PH 3.6KW | PH 6KW | |||
| Power | 3.6 KVA/3.6 KW | 6KVA 6KW | |||
| Maximum photovoltaic input power | 3.6 kW | 9KW | |||
| Two AC outputs | Yes | ||||
| Maximum one-way AC output power | 3.6 KVA/3.6 KW | 6KVA / 6KW | |||
| Maximum two-channel AC output power | 3.6 KVA/3.6 KW | 6KVA / 6KW | |||
| Maximum AC total output power | 3.6 KVA/3.6 KW | 6KVA / 6KW | |||
| Parallel machine function | NO | ||||
| Lithium-ion communication | NO | RS232 / RS485 / Dry Contact | |||
| Lithium battery activation | Yes (photovoltaic or mains) | ||||
| Input | |||||
| Rated voltage | 230VAC | ||||
| Voltage range | 170-280VAC (computer application); 90-280VAC (household appliances) | ||||
| Frequency | 50/60 Hz (automatic detection) | ||||
| Output | |||||
| Rated voltage | 220/230VAC±5% | 220/240VAC±5% | |||
| Instantaneous power | 5400VA | 9000VA | |||
| Frequency | 50/60 Hz | ||||
| Output waveform | Pure Sine Wave | ||||
| Switching time | 10ms (computer application); 20ms (household appliances) | ||||
| Peak efficiency (PV to INV) | 96% | ||||
| Peak power (Battery to INV) | 93% | ||||
| Overpower protection | 5s@>=140% load; 10s@100%~140% load | ||||
| Peak coefficient | 3:1 | ||||
| Power factor | 0.6~1 (capacitive or inductive) | ||||
| Grid connection mode | Not support | ||||
| PV Charging & Ac Charging | |||||
| Charge mode | MPPT | ||||
| Maximum photovoltaic input power | 5000W | 9000W | |||
| Maximum photovoltaic open circuit voltage | 500VDC | ||||
| MPPT voltage range | 40VDC-450VDC | 60VDC ~ 450VDC | |||
| Maximum photovoltaic input current | 18A | 27A | |||
| Maximum photovoltaic charging current | 100A | 120A | |||
| Maximum mains charging current | 100A | 120A | |||
| Maximum charging current | 100A | 120A | |||
| Battery capacity selection | |||||
| Battery Parameters | 7.68 kWh | 16 kWh | Remarks | ||
| General |
|||||
| Nominal Capacity | 300Ah | 314 Ah |
0.5C/0.3C charging, 1°C discharging, 25°C |
||
| Rated Voltage | 25.6V | 51.2V | 8S/16S | ||
| Discharge Cut-off Voltage | 22V | 44V | |||
| Charging Cut-off Voltage | 26.6V | 56.4V | |||
| Float charging voltage | 27V | 56V | |||
| Continuous charging maximum current | 100A | 160A | |||
| Maximum current for continuous discharge | 150A | ||||
| Battery Energy | 7680Wh | 16000Wh | |||
| Rated Output Power | 3600W | 6000W | |||
| Communication Interface | NO | RS232 / RS485 / Dry Contact | |||
| Discharge working temperature | -15℃~50℃ | ||||
| Charging working temperature | 0℃~50℃ | ||||
| Relative Humidity | 5~90% | ||||
| Altitude | ≤4000m | ||||
| Protection Grade | IP21 | ||||
| Storage Time | Keep charging at least once every 3 months | ||||
| Number of cycles | ≥6000 times | 75% DOD 25℃ | |||
| Main Parameters For BMS |
|||||
| Overcharge Protection | Overcharge detection voltage (V) | Monomer 3.65 ± 0.05 | |||
| Overcharge protection delay (S) | 0.5 | ||||
| Over Discharge Protection | Overdischarge detection voltage (V) | Monomer 2.7 ± 0.05 | |||
| Overdischarge detection delay (S) | 0.5 | ||||
| Overcurrent Protection | Greater than rated current | 1.1% | |||
| Overcurrent Recovery | Disconnect Load | / | |||
| Self-Consumption Power | Working Current (mA) | ≤10 | |||
| Sleep Current (uA) | ≤50 | ||||
| Physical Property |
|||||
| Product Size, length x width x height (mm) | 740*400*240 | 1050*460*240 | |||
| Package Size, length x width x height (mm) | 765*465*400 | 1085*520*300 | |||
| Net Weight (Kgs) | 65.75 | 122 | |||
| Gross Weight (Kgs) | 77.75 | 124 | |||
| LCD | Yes | ||||
| Application Environment |
|||||
| Operating temperature range | -10°C to 55°C | ||||
| Storage temperature range | -15°C to 60°C | ||||
| Humidity | 5% to 95% relative humidity (no frost) | ||||
FAQ
1. What is an all-in-one movable power station?
An all-in-one movable power station integrates an inverter, battery storage, solar charging and battery protection into one portable energy storage system. It provides AC power for backup, off-grid and emergency applications.
2. What power options are available?
This series includes 3.6kW and 6kW inverter options, suitable for different household, outdoor, backup and small commercial power needs.
3. What battery capacity options are available?
The system supports 7.68kWh and 16kWh battery configurations, allowing users to choose the right backup capacity according to load and runtime requirements.
4. Does this power station provide pure sine wave output?
Yes. It provides pure sine wave AC output, making it suitable for many household appliances, electronic devices and light commercial equipment.
5. Can this power station be charged by solar panels?
Yes. The system supports MPPT solar charging and can work with compatible photovoltaic panels for off-grid and renewable energy applications.
6. Can it be charged by mains power?
Yes. In addition to photovoltaic charging, it also supports mains charging, giving users flexible charging options.
7. What applications is this product suitable for?
It is suitable for home emergency backup, outdoor power supply, off-grid areas, small commercial equipment, mobile workstations, camping, lighting, refrigerators, fans, laptops, cameras and projectors.
8. Does the system include battery protection?
Yes. The built-in BMS helps protect the battery from overcharge, over-discharge, overcurrent and abnormal operating conditions.
9. Is it suitable for grid-tied applications?
No. According to the product parameters, the grid connection mode is not supported. This product is more suitable for backup power, off-grid power and standalone energy storage applications.
10. What information should I provide for a quotation?
Please provide the required inverter power, battery capacity, application scenario, load type, backup time requirement, solar panel configuration, quantity and destination country.
