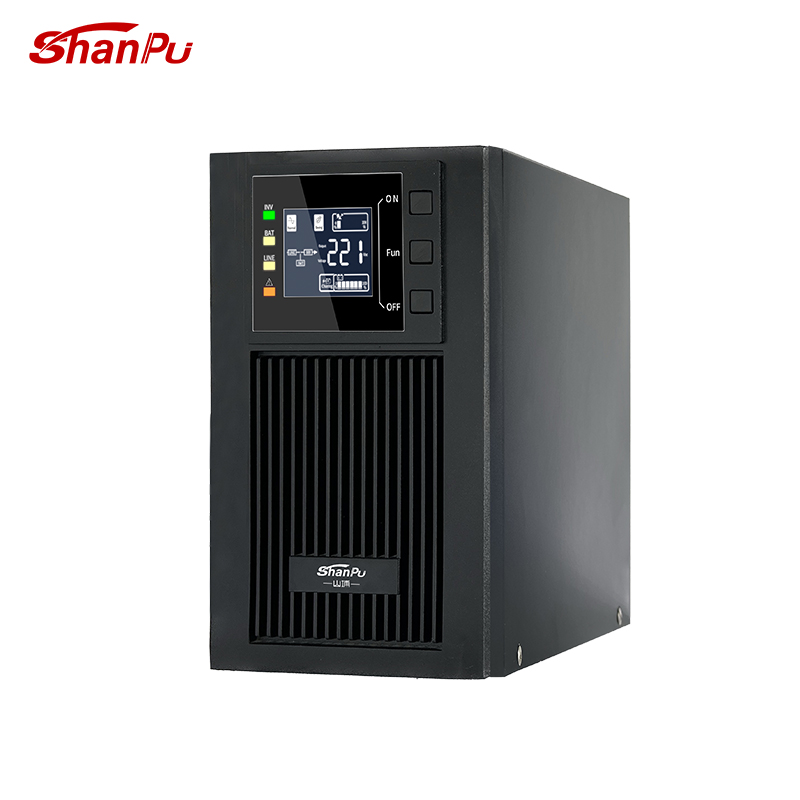

Online UPS 1kVA-10kVA Tower Type

High Efficiency Pure Sine Wave Online UPS for Server & Data Center

FUNCTIONS:

· Pure sine wave zero conversion time
· Customizable sockets and voltages for different countries
· Built in long-lasting maintenance free lead-acid battery
· Equipped with VAR voltage regulator
· Short circuit and overload protection
· Offering LED and LCD panels for selection
· Optional USB, RS232/RJ45/SNMP communication port

Get a quote

Get the Product Catalog

Product Detail

APPLICATIONS FIELDS:

The UC1KVA - U10KVA series provides an excellent power solution tailored for small - to - medium - sized businesses, home offices, and network closets. These compact uninterruptible power supplies (UPS) offer seamless integration into limited spaces while delivering stable power output. Equipped with features like automatic voltage regulation, surge protection, and battery management systems, they safeguard critical equipment against power outages, voltage fluctuations, and electrical surges, ensuring continuous operation and data integrity.

TECHNICAL SPECIFICATION:

MODEL		C1K(S)	C2K(S)	C3K(S)	C5K(S)	C6K(S)	C10K(S)
Capacity		1000VA/800W	2000VA/1600W	3000VA/2400W	5000VA/3000W	6000VA/4800W	10000VA/8000W
INPUT
Voltage range		145~275VAC±5V			165~275VAC±5V
Frequency range		50HZ-60HZ
OUTPUT
Output voltage		220VAC
AC voltage range		±10%
Frequency range(Batt.Mode)		50Hz±0.25Hz or 60Hz±0.3Hz
Overload		105%-110%:UPS beep alamm, do not shut down
		110%-130%:auto shut down after 30 seconds
		>130%:auto shut down immediately
Transfer time		0ms
Wave form(batt.mode)		Pure sine wave
BATTERY
Standard model	Battery type	12V/17Ah			12V/17Ah	12V/7Ah	12V/7Ah
	Numbers	2	4	6	4	-	-
	Charging current(Max.)	Assume:1A±10% Max: 1A or 2A for option
	Charging voltage	27.3VDC±1%	54.7VDC±1%	82.0VDC±1%	54.7VDC±1%	218.4VDC±1%
Machine data	Size LWH(mm)	360147220	440192340	440192340	440190320	-	-
	Net weight (kgs)	11.9	22	27.9	33	-	-
Long-run model
Long-run model	Battery type	12V,AH depending on applicant
	Numbers	3	6	8	4	16
	Charging current(Max.)	> 5A
	Charging voltage	27.3VDC±1%	54.7VDC±1%	82.0VDC±1%	54.7VDC±1%	218.4VDC±1%
Machine data	Dimension LxWxH(mm)	360x147x220	440192340	440192340	-	520240460	520240460
	Net weight(kgs)	8.5	16	18.2	-	30.5	35
Environment
Humidity		20-90%RH@0-40℃(non-condensing)
Noise level		Less than 55dBA@1 Meter
MANAGEMENT
Smart RS-232		Support windows 2000/2003/XP/Vista/2008, Windows7/8, Linux, Unix, and MAC
Optional SNMP		Power management from SNMP management and web browser
