Off-Grid Horizontal Stacked Solar Storage System 3.84–15.36kWh
Horizontal stacked off-grid solar storage system with 3.6kW pure sine wave inverter, MPPT solar charging, 3.84–15.36kWh LiFePO4 battery capacity and flexible backup power for homes, small businesses and remote areas.

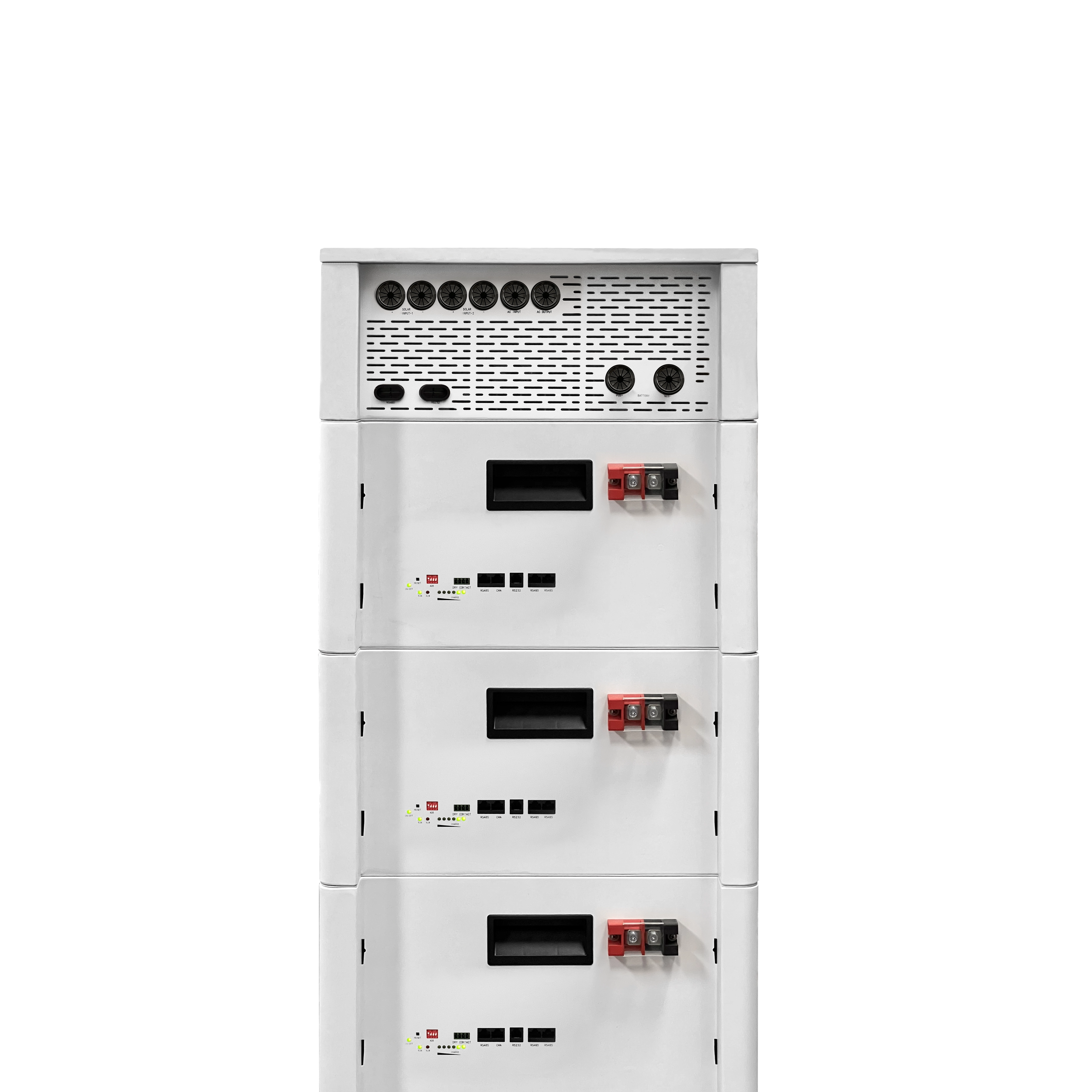

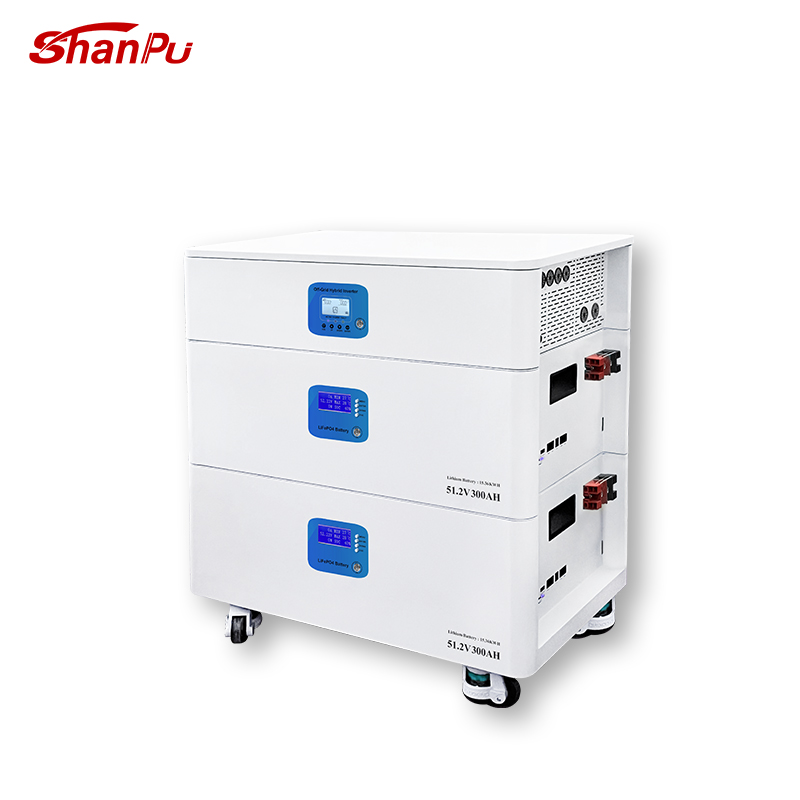

The ShanPu off-grid horizontal stacked solar storage system pairs a 3.6kW pure sine wave inverter with 3.84-15.36kWh of LiFePO4 battery modules in one modular stack — a standalone power source for off-grid homes, cabins, farms and sites with unstable grids, with no extra inverter needed. Battery layers can be added on site to grow storage from a 3.84kWh starter system up to 15.36kWh, while the MPPT charger accepts up to 5000W of solar input plus mains charging.
Key Features of ShanPu Off-Grid Horizontal Stacked Solar Storage System
- 3.6kW pure sine wave inverter with dual AC outputs — one system supplies household loads directly.
- Four battery options, 3.84kWh to 15.36kWh (150-600Ah) — stack modules to match load and autonomy.
- LiFePO4 cells with built-in BMS — 6000 cycles at 75% DOD for long off-grid service.
- MPPT solar charging up to 5000W plus 100A mains charging — flexible charging in any season.
- Fast 10ms switching for computer loads (20ms for appliances) — dependable during grid drops.
- 3:1 peak coefficient with 5400VA instantaneous power — starts refrigerators and other motor loads.
- RS232 / RS485 / CAN communication and LCD display — system status at a glance.
- Stacked modular design with IP22 protection — compact footprint that scales as needs grow.
Applications
- Off-grid homes & cabins — power lighting, refrigeration and appliances day and night from solar.
- Rural & farm sites — replace or supplement weak grid supply with a standalone 3.6kW system, scaled from 3.84kWh to 15.36kWh of storage.
- Small businesses in unstable-grid areas — keep essential loads running during daily outages with automatic switching and solar recharge.
Typical configurations
- Starter: 3.6kW inverter + 3.84kWh — lighting, router and a refrigerator during outages.
- Full: 3.6kW inverter + 15.36kWh with up to 5000W PV — whole-cabin and farm-stead coverage through the night.
OEM / ODM & Custom Solutions
Beyond standard configurations, ShanPu manufactures and customizes off-grid stacked storage systems: inverter rating, battery capacity, communication protocols, enclosure color and branding can all be adapted to your project or private label. Tell us your load profile and site conditions — our engineers will confirm the configuration, certifications and lead time.
-
Horizontal Stacked Solar Storage System Technical Specifications:
| Inverter Parameters | ALL 3.6 kW |
| Power | 3.6KVA/3.6 KW |
| Maximum photovoltaic input power | 3.6 kW |
| Two AC outputs | Yes |
| Maximum one-way AC output power | 3.6KVA/3.6 KW |
| Maximum two-channel AC output power | 3.6KVA/3.6 KW |
| Maximum AC total output power | 3.6KVA/3.6 KW |
| Parallel machine function | NO |
| Lithium-ion communication | Yes |
| Lithium battery activation | Yes (photovoltaic or mains) |
| Input | |
| Rated voltage | 230VAC |
| Voltage range |
170-280VAC (computer application); 90-280VAC (household appliances) |
| Frequency | 50 / 60 Hz (automatic detection) |
| Output | |
| Rated voltage | 220/230VAC±5% |
| Instantaneous power | 5400VA |
| Frequency | 50/60 Hz |
| Output waveform | Pure Sine Wave |
| Switching time | 10ms (computer application); 20ms (household appliances) |
| Peak efficiency (PV to INV) | 96% |
| Peak power (Battery to INV) | 93% |
| Overpower protection | 5s@>=140% load; 10s@100%~140% load |
| Peak coefficient | 3:1 |
| Power factor | 0.6~1 (capacitive or inductive) |
| Grid connection mode | Not support |
| PV Charging & AC Charging | |
| Charge mode | MPPT |
| Maximum photovoltaic input power | 5000W |
| Maximum photovoltaic open circuit voltage | 500VDC |
| MPPT voltage range | 60VDC~500VDC |
| Maximum photovoltaic input current | 18A |
| Maximum photovoltaic charging current | 100A |
| Maximum mains charging current | 100A |
| Maximum charging current | 100A |
| Physical Property | |
| Inverter & Carton Dimensions (mm) | 450*420*150 (Inverter); 520*500*230 (Carton) |
| Weight (kgs) | 12.3(Net Weight); 13.7(Gross Weight) |
| Communication interface | RS232/RS485/CAN |
| LCD | Yes |
| Application Environment | |
| Operating temperature range | -10°C to 55°C |
| Storage temperature range | -15°C~60°C |
| Humidity |
5% to 95% relative humidity (no frost) |
Battery Parameters:
|
Battery |
3.84 kWh | 7.68 kWh | 11.52 kW.h | 15.36 kW.h | Remarks | |
| General | ||||||
| Nominal Capacity | 150 Ah | 300 Ah | 450AH | 600 Ah | 0.5 C charging, 1C discharging, 25 C | |
| Rated Voltage | 25.6V |
8S |
||||
| Discharge Cut-off Voltage | 22V | |||||
| Charging Cut-off Voltage | 26.6V | |||||
| Float-charging voltage | 27V | |||||
| Continuous charging maximum current | 100A | |||||
| Maximum current for continuous discharge | 150A | |||||
| Battery Energy | 3840Wh | 7680Wh | 11520Wh | 15360Wh | ||
| Rated Output Power | 3600W | |||||
| Communication Interface | RS232/RS485/CAN | |||||
| Discharge working temperature | -20°C~55°C | |||||
| Charging working temperature | 0°C~45°C | |||||
| Relative Humidity | 5~90% | |||||
| Altitude | ≤4000m | |||||
| Protection Grade | IP22 | |||||
| Storage Time | Keep charging at least once every 3 months | |||||
| Battery Dimensions (mm) | 450*420*180 (Middle) & 450*420*260 (Bottom) | |||||
| Carton Dimensions (mm) | 485*515*360 (Middle) & 485*515*415 (Bottom) | |||||
| Net Weight (kgs) | 33 (Middle); 35 (Bottom) | |||||
| Gross Weight (kgs) | 40.85 (Middle); 42.85 (Bottom) | |||||
| Number of cycles | 6000 times | 75% DOD 25℃ | ||||
| Main Parameters For BMS | ||||||
| Overcharge Protection | Overcharge detection voltage (V) | Monomer 3.65 ± 0.05 | ||||
| Overcharge protection delay (S) | 0.5 | |||||
| Over Discharge Protection | Overdischarge detection voltage (V) | Monomer 2.7 ± 0.05 | ||||
| Overdischarge detection delay (S) | 0.5 | |||||
| Overcurrent Protection | Greater than rated current | 1.1 | ||||
| Overcurrent Recovery | Disconnect Load | / | ||||
| Self-Consumption Power | Working Current (mA) | ≤10 | ||||
| Sleep Current (uA) | ≤50 | |||||
FAQ
What is an off-grid horizontal stacked solar storage system?
An off-grid horizontal stacked solar storage system combines a solar inverter, LiFePO₄ battery modules, MPPT charging and battery management in a stacked energy storage structure. It is designed for backup power and standalone solar power applications.
What battery capacity options are available?
This system supports 3.84kWh, 7.68kWh, 11.52kWh and 15.36kWh battery capacity options, allowing users to select the right storage capacity according to backup time and load demand.
What inverter power does this system use?
The system uses a 3.6 kW pure sine wave inverter, suitable for household backup power, small commercial equipment, off-grid applications and emergency energy storage.
Does the system support solar charging?
Yes. The system supports MPPT solar charging with up to 5000W photovoltaic input power, helping improve solar energy utilization and off-grid power efficiency.
Can the system be charged by mains power?
Yes. In addition to photovoltaic charging, the system also supports mains charging, giving users flexible charging options.
What type of battery does this system use?
The system uses LiFePO₄ lithium iron phosphate batteries, which provide high safety, stable output, long cycle life and reliable performance for energy storage applications.
Is this system suitable for home backup power?
Yes. It is suitable for home backup power, emergency power supply, small business backup, off-grid houses, cabins, farms and areas with unstable grid electricity.
