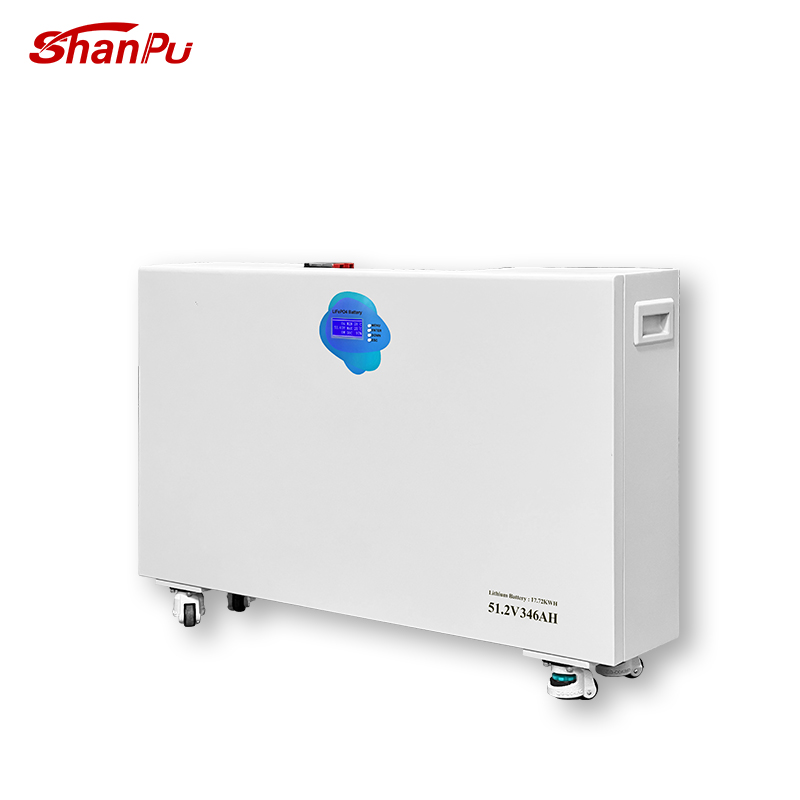

Movable LiFePO4 Lithium Battery Pack 17.7-26kWh
Lithium Battery Pack, Rechargeable LiFePO4 Battery, High Capacity, Long Cycle Life, for Solar Energy Storage, UPS and Industrial Equipment
Key Features of SHANPU Movable LiFePO4 Battery Pack
- 6000-Cycle LiFePO4 Cells: Long service life with stable thermal behavior: 6000 cycles at 75% DOD, 25°C; discharge from -20°C to 55°C.
- 17.7kWh and 26kWh Options: MB 512346: 346Ah, 17.7kWh; MB 512519: 519Ah, 26kWh; both in 16S 51.2V configuration.
- 10kW Rated Output: 200A continuous discharge supports 10kW for high-demand backup loads.
- Integrated BMS Protection: Cell-level cut-off: overcharge 3.65V, over-discharge 2.7V, overcurrent protection with 0.5s delay.
- RS485, RS232 and CAN: Three interfaces for monitoring and integration with compatible inverters and energy management systems.
- Movable Cabinet Design: Repositionable between sites; IP22 and 0-95% humidity suit indoor installations.
Applications
- Solar Self-Consumption & Commercial Storage: Shifts solar generation to evening and backs up commercial facilities.
- Inverter-Based Load Backup: Pairs with a compatible inverter to back up office and light-industrial loads.
- Off-Grid, RV & Remote Power: Reliable energy where the grid is weak or absent, including mobile sites.
- Emergency & Temporary Power: Immediate energy for contingencies and temporary installations.
- Industrial Facility Backup: Keeps plant equipment running through grid events.
See ShanPu [battery application cases] for real-world deployments.
Typical Configurations
- Step 1 - Confirm load and runtime. Total connected kW and required backup hours.
- Step 2 - Capacity. 17.7kWh suits lighter cycling; 26kWh extends heavy-load runtime. ShanPu confirms sizing from your load profile.
- Step 3 - Voltage and interface. 51.2V system with RS485/RS232/CAN for inverter or EMS integration.
- Step 4 - Site. Indoor (IP22); discharge -20°C to 55°C, charge 0°C to 55°C; altitude to 4000m; recharge at least every 3 months in storage.
Custom/OEM Solutions
Project customization covers capacity options, BMS and communication parameters (RS485/RS232/CAN), cabinet color and private labeling, packaging and documentation, and certification paperwork for destination markets. For [OEM and ODM battery projects], send energy requirement, voltage, load type, environment, quantity and destination country for a proposal and quotation.
LiFePO₄ Battery Pack Technical Specifications:
| Item | MB 512346 | MB 512519 | Remarks | |
| General | ||||
| Nominal Capacity | 346 Ah | 519 Ah |
0.3C charging, 1°C discharging, 25°C |
|
| Rated Voltage | 51.2V | 16S | ||
| Discharge Cut-off Voltage | 44V | |||
| Charging Cut-off Voltage | 58.4V | |||
| Float charging voltage | 56V | |||
| Continuous charging maximum current | 150A | |||
| Maximum current for continuous discharge | 200A | |||
| Battery Energy | 17700Wh | 26000Wh | ||
| Rated Output Power | 10000W | |||
| Communication Interface | RS485 RS232 CAN | |||
| Discharge working temperature | -20℃~55℃ | |||
| Charging working temperature | -0℃~55℃ | |||
| Relative Humidity | 5-90% | |||
| Altitude | ≤4000m | |||
| Protection Grade | IP22 | |||
| Storage Time | Keep charging at least once every 3 months | |||
| Nat Weight | 163 kg | 175 kg | ||
| Number of cycles | 6000 times | 75% DOD 25℃ | ||
| Main Parameters For BMS | ||||
| Overcharge Protection | Overcharge detection voltage (V) | Monomer 3.65 ± 0.05 | ||
| Overcharge protection delay(S) | 0.5 | |||
| Over Discharge Protection | Overdischarge detection voltage (V) | Monomer 2.7 ± 0.05 | ||
| Overdischarge detection delay (S) | 0.5 | |||
| Overcurrent Protection | Greater than rated current | 1.1% | ||
| Overcurrent Recovery | Disconnect Load | / | ||
| Self-Consumption Power | Working Current (mA) | ≤10 | ||
| Sleep Current (uA) | ≤50 | |||
FAQ
What is this movable lithium battery pack used for?
It is designed for solar energy storage, off-grid power supply, RV systems, commercial facilities, industrial equipment and emergency power applications, working together with a compatible inverter.
What capacity options are available?
Two options: 17.7kWh (MB 512346, 346Ah) and 26kWh (MB 512519, 519Ah), covering different backup time and load requirements.
What type of battery cell does this product use?
LiFePO4 lithium iron phosphate cells, known for high safety, long cycle life, stable performance and good thermal stability.
What is the rated voltage of this lithium battery pack?
51.2V (16S configuration), suitable for compatible inverter-based power and energy storage systems.
Does the battery pack include BMS protection?
Yes. A built-in BMS provides protection against overcharge, over-discharge, overcurrent and abnormal operating conditions.
What communication interfaces are supported?
RS485, RS232 and CAN, for integration with compatible inverters and energy management systems.
How many cycles can the battery support?
Up to 6000 cycles under 75% DOD at 25°C.
What is the rated output power?
The rated output power is 10,000W, suitable for high-capacity backup power and energy storage scenarios.
Which unit should I choose, 17.7kWh or 26kWh?
Choose by daily energy consumption and required backup time: MB 512346 (17.7kWh) fits lighter loads, MB 512519 (26kWh) extends runtime for heavier or longer-backup applications. Send your load profile and ShanPu confirms the sizing.
How should this battery pack be moved and installed?
Each pack weighs 163kg (MB 512346) or 175kg (MB 512519) - use appropriate lifting aids and at least two people. Install indoors (IP22), keep charge temperature within 0-55°C, and recharge at least once every 3 months during storage.
