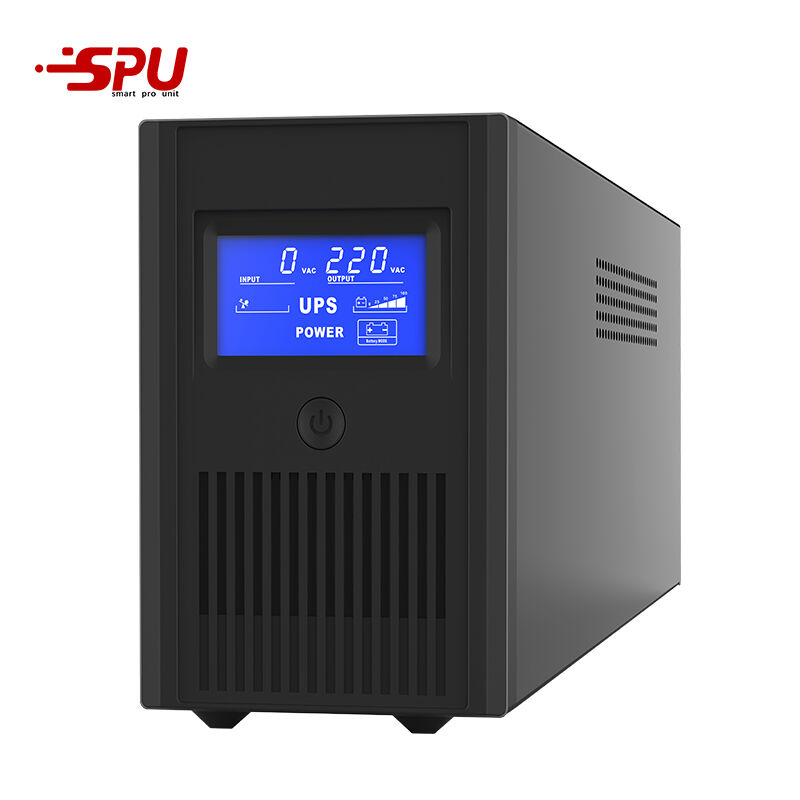

Line Interactive UPS

Line Interactive UPS with AVR, Surge Protection and Backup Power for Home, Office and Network Devices

This intelligent line interactive UPS has comprehensive multiple protection functions, including overload protection, short circuit protection, over temperature protection, and overcharge and over discharge protection. The comprehensive safety design avoids equipment damage and safety hazards caused by abnormal currents and voltages. The machine operates with low noise and low power consumption, meeting energy-saving and environmental protection standards.

Get a quote

Get the Product Catalog

Product Detail

Line Interactive UPS Technical Specifications:

Review the key specifications of SHANPU line interactive UPS models from 650VA to 3000VA, including power capacity, voltage range, transfer time, battery type, communication options, noise level, and operating conditions.

Model		AK650	AK850	AK1000	AK1200	AK1500	AK2000	AK3000
Installation method		Tower type line interactive UPS
Main topology		L+N+PE
Capacity		650VA/390W	850VA/510W	1000VA/600W	1200VA/720W	1500VA/900W	2000VA/1200W	3000VA/1800W
Input
Input voltage		110/120VAC or 220/230/240VAC
Voltage range		86-140VAC or 170-285VAC
Input frequency		50/60Hz
Factor		≥0.999
Output
Main topology		L+N+PE
Output voltage		110/120VAC or 220/230/240VAC
Voltage range (battery mode)		±10%
Frequency synchronous range		50Hz or 60Hz ± 1HZ
Factor		0.6
Transfer time		6ms
Surge protection function		Yes
Output waveform		Simulated sine wave
Communication and Management
Communication interface		RS232/USB/RJ11/RJ45
Control panel		Multi functional LCD,status and display console
Standard UP
Standard UPS battery	Battery type	VRLA
	Recharge time	6-8 Hour
	Charging current	1A
	Battery voltage	12V			24V
	Battery capacity	7AH	9AH	9AH	7AH	9AH	9AH	9AH
Machinedata	Size (MM)	330100150			365140165			395145210
	Weight (KG)	5.2KG	5.7KG	5.8KG	11.9KG	12.6KG	17KG	21KG
Packing data	Size (MM)	390313440			450436250			490250310
	Weight (KG)	20.8KG	22.8KG	23.2KG	23.8KG	25.2KG	34KG	22.5KG
	UPS Number	4			2			1
Environmen
Operating humidity		20%-95%(No condensing)
Relative temperature		-25-55℃C
Maximum noise level at full load (at 1m)		＜40dBA@1M

FAQ

1. What is a line interactive UPS?

A line interactive UPS is a backup power supply designed to protect equipment from power interruptions, voltage fluctuations and surge damage. It uses automatic voltage regulation to stabilize input voltage and switches to battery power when the main power supply fails.

2. What applications is this line interactive UPS suitable for?

This UPS is suitable for home offices, small offices, computers, routers, network devices, POS systems, security systems, surveillance equipment and other small to medium power electronic devices that require stable backup power.

3. What capacity options are available?

This series includes multiple capacity options from 650VA to 3000VA, including AK650, AK850, AK1000, AK1200, AK1500, AK2000 and AK3000 models. Customers can choose the suitable model according to the power consumption of their connected equipment.

4. Does this UPS support automatic voltage regulation?

Yes. This line interactive UPS supports automatic voltage regulation, helping stabilize unstable input voltage and protect connected devices from voltage fluctuations without switching to battery mode unnecessarily.

5. What protection functions does this UPS provide?

The UPS provides multiple protection functions, including overload protection, short circuit protection, over-temperature protection, overcharge protection, over-discharge protection and surge protection. These features help improve equipment safety and reduce the risk of damage caused by abnormal power conditions.
