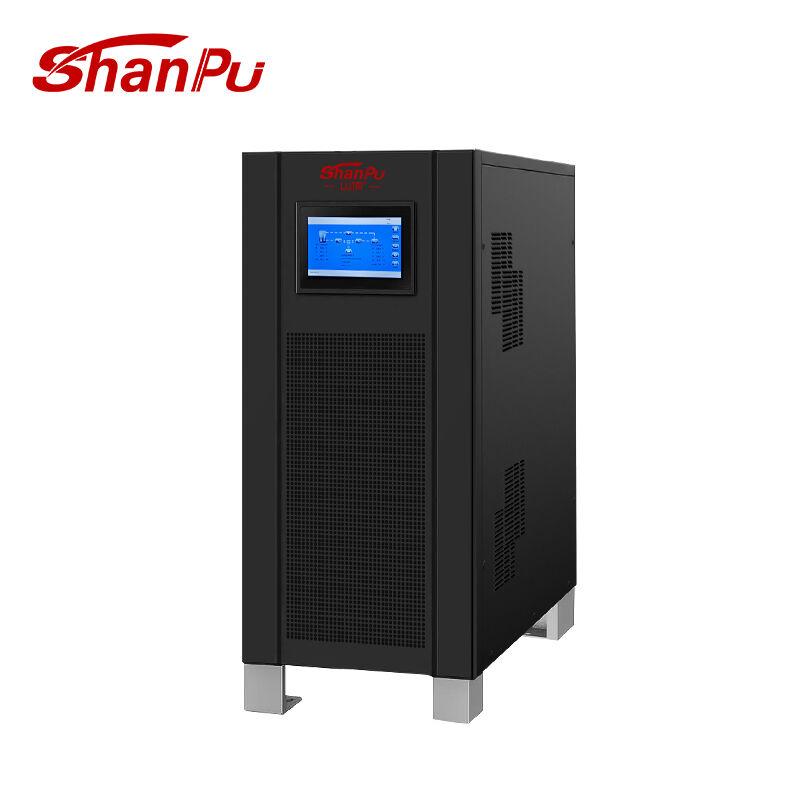

Three Phase Low Frequency Industrial Online UPS 10kVA–800kVA
High Stability Industrial Online UPS with Anti-interference Design, Suitable for Harsh Industrial Environment & Power Distribution
-
SHANPU Industrial Online UPS is designed for harsh industrial environments where stable, uninterrupted and high-capacity power protection is required. Available from 10kVA to 800kVA, this three-phase UPS adopts online double-conversion technology to provide pure sine wave output, 0ms transfer time and reliable protection against power outages, voltage fluctuations, surges and industrial electrical interference.
With strong overload capacity, static bypass, maintenance bypass, VRLA battery configuration and durable industrial-grade design, the system is suitable for factories, automation systems, control panels, production lines, power distribution rooms, processing equipment and other mission-critical industrial loads.
Key Features of SHANPU Industrial Online UPS
• 10kVA–800kVA capacity range for industrial and large-scale power systems
• Three-phase input and three-phase output configuration
• Online double-conversion technology for continuous power protection
• Pure sine wave output for sensitive and heavy-duty industrial loads
• 0ms transfer time to prevent power interruption
• Strong overload capacity for demanding industrial environments
• Static bypass and maintenance bypass for improved system reliability
• VRLA battery configuration with CC/CV charging method
• Anti-interference design for harsh electrical environments
• Suitable for factories, automation systems, control panels, production lines, power distribution and industrial equipment
Industrial Online UPS Technical Specifications
Compare SHANPU 3C33 10kVA–800kVA industrial online UPS models by capacity, three-phase input and output, voltage range, output waveform, transfer time, overload capacity, bypass mode, battery configuration, charging current, dimensions and weight.
| Model | 3C33 10KS | 3C33 20KS | 3C33 30KS | 3C33 40KS | 3C33 60KS | 3C33 80KS | 3C33 100-800KS | |
| Phase | Three-input, three-output | |||||||
| Capacity | 10KVA, 8KW |
20 kVA 16 kW |
30 kVA 24 kW |
40 kVA 32 kW |
60 kVA 48 kW |
80 kVA 64KW |
100-800 kVA 80-640 kW |
|
| Input | ||||||||
| Input Voltage | 3×380VAC/400VAC/415VAC (3-phase + N or 3-phase + N line + PE (Earth) line) | |||||||
| Voltage range | 304VAC~456VAC | |||||||
| Input frequency | 50 Hz ± 10% | |||||||
| Output | ||||||||
| Output voltage | 3 x 380VAC/400VAC/415VAC (3 phase + N) | |||||||
| AC voltage regulation | 1% | |||||||
| Factor | 0.8 | |||||||
| Output waveform | pure sine wave | |||||||
| Conversion time | 0 ms | |||||||
| Output Frequency |
Main mode: (50/60) ± 0.01 Hz | |||||||
| Battery mode: (50/60) ± 0.01 Hz | ||||||||
| Waveform balance | < 2% (linear load); < 5% (non-linear load) | |||||||
| Dynamic adjustment time |
120°±1% (balanced load); 120°±2% (50% unbalanced load) |
|||||||
| Overload capacity | ≤110% @ 60 min, ≤125% @ 10 min, ≤150% @ 1 min, >150% @ 200 ms | |||||||
| Load power factor range | 3:1 | |||||||
| Current Limit | Extreme overload, short circuit: voltage effective value limit; Impulse current: peak voltage limit | |||||||
| Bypass | ||||||||
| Types | Static switch | |||||||
| Voltage | 3 x 380VAC/400VAC/415VAC (3 phase + N) | |||||||
| Frequency | 50/60 Hz | |||||||
| Control mode | Microprocessor control | |||||||
| Conversion time | 0 ms | |||||||
| Overload capacity | 150%~180% @1h~30s; 180%~>200% @30s~200ms | |||||||
| Switch to bypass | Immediately, overload 160% | |||||||
| Switching back to inversion | Automatic switching after alarm clearing | |||||||
| Maintenance bypass | ||||||||
| Types | Uninterrupted | |||||||
| Voltage | 3x 400V (3 phase + N) | |||||||
| Frequency | 50/60 Hz | |||||||
|
Overall efficiency
|
Online mode | 90% |
91% | 92% | 93% | |||
| Battery mode | 90% |
91% | 93% | |||||
| Battery & Charging | ||||||||
| Battery quantity | 12VDCx32 (29-32 adjustable) | |||||||
| Rated voltage | 384 VDC (based on 32 adjustable) | |||||||
| Charging method | CC/CV | |||||||
| Charging current | Preset 10A, max=capacity/battery voltage | Preset 10A, maximum 40A | ||||||
| Charging voltage | 432 VDC (based on 32 adjustable) | |||||||
| Physical property | ||||||||
| Size (mm) | 653x405x820 | 820x433x1160 | 975*635*1325 | - | ||||
| Package (mm) | 785x535x985 | 960x560x1333 | 1100*780*1490 | - | ||||
| Net weight (kg) | 120 | 136 | 242 | 249 | 290 | 419 | - | |
| Gross weight (kg) | 132 | 148 | 257 | 264 | 305 | 445 | - | |
FAQ
1. What is an industrial online UPS?
An industrial online UPS is a power protection system designed for factories, automation systems, power distribution rooms and heavy-duty industrial equipment. It provides continuous backup power and protects critical loads from unstable grid conditions.
2. What capacity range is available?
This series covers 10kVA to 800kVA, including 10kVA, 20kVA, 30kVA, 40kVA, 60kVA, 80kVA and 100kVA–800kVA configurations.
3. What does three-phase input and three-phase output mean?
It means the UPS is designed for three-phase electrical systems, with three-phase AC input and three-phase AC output, making it suitable for industrial and commercial power distribution environments.
4. Does this UPS provide pure sine wave output?
Yes. The system provides pure sine wave output, helping protect industrial equipment, control systems and sensitive electrical loads.
5. What is the transfer time of this UPS?
The UPS provides a 0 ms transfer time, helping ensure an uninterrupted power supply for critical equipment.
6. What applications is this industrial UPS suitable for?
It is suitable for factories, production lines, automation systems, control panels, processing equipment, power distribution rooms, industrial facilities and other critical power applications.
7. Does this UPS support maintenance bypass?
Yes. The system supports maintenance bypass, which helps improve serviceability and allows safer maintenance operation.
8. What battery configuration does this UPS use?
The system uses external VRLA battery configurations, with battery quantity and charging current depending on capacity and backup time requirements.
9. How does this UPS handle overload conditions?
The UPS supports strong overload capacity, helping maintain system protection under short-term overload or abnormal load conditions.
10. What information should I provide for a quotation?
Please provide the required UPS capacity, input and output voltage, backup time, battery configuration, load type, installation environment, bypass requirements, quantity and destination country.
