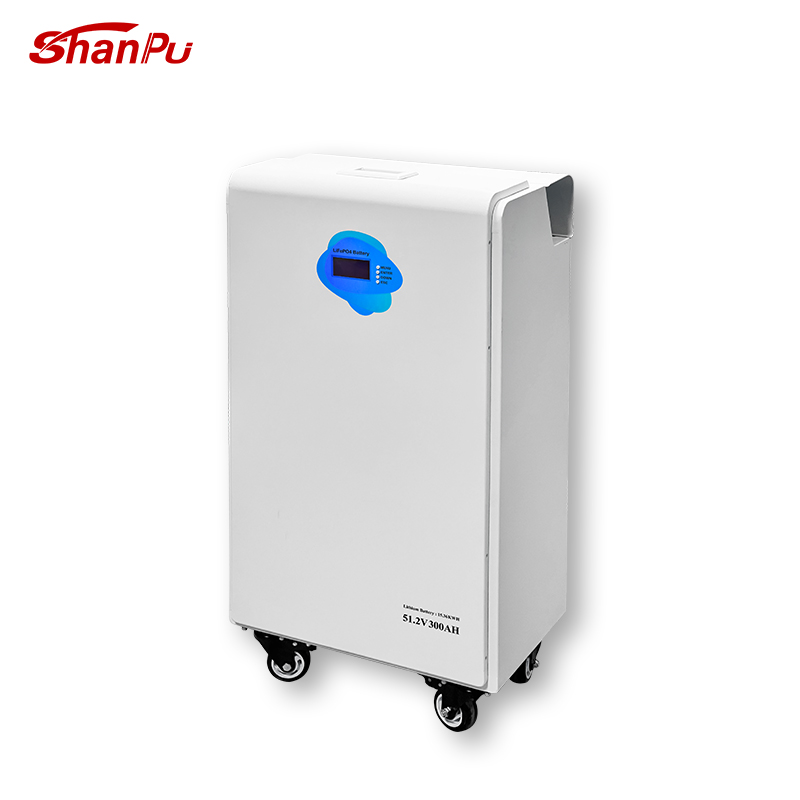

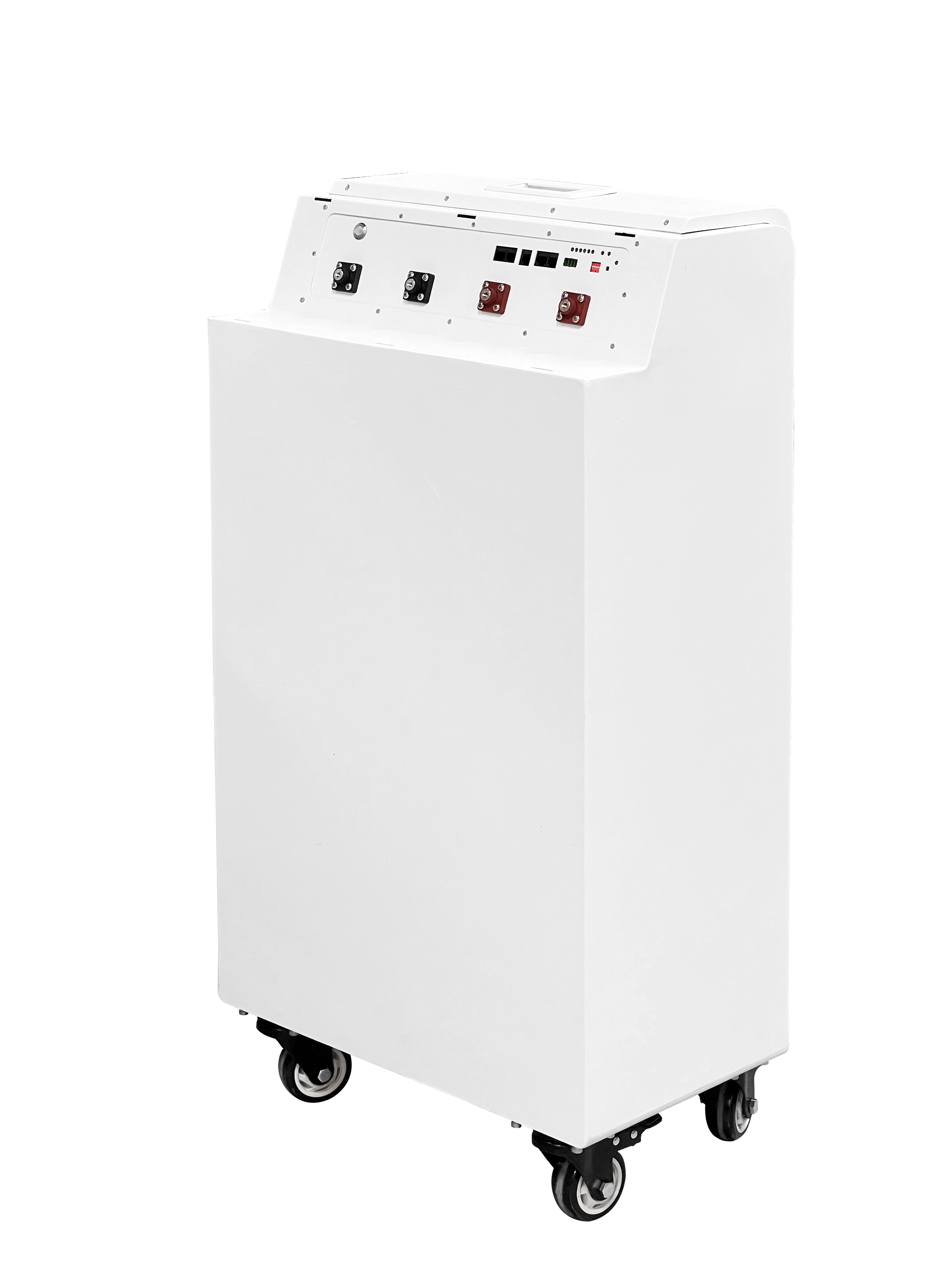

Movable LiFePO4 Battery Pack 15.36kWh
15.36kWh rechargeable LiFePO4 battery pack with built-in BMS, long cycle life, RS485/CAN/RS232 communication, and expandable storage for solar systems, UPS backup, off-grid power and industrial equipment.
SHANPU's movable LiFePO4 lithium battery pack is designed for solar energy storage, UPS backup power, off-grid systems, residential energy storage, commercial facilities and industrial equipment. With 15.36 kWh storage capacity, a 51.2 V battery platform, lithium iron phosphate cells and built-in BMS protection, it delivers stable, safe and long-life energy storage performance.
The battery supports RS485, CAN and RS232 communication, parallel expansion up to 6 units, LED power display and 5-year warranty. Its movable cabinet design makes installation and deployment more flexible for backup power and distributed energy storage projects.
-
Key Features of SHANPU Movable LiFePO4 Battery Pack
• 15.36kWh high-capacity energy storage for backup and solar applications
• LiFePO₄ battery cells for improved safety, stability and long cycle life
• Built-in BMS protection for safer battery operation
• Up to 6000 cycles for long-term energy storage performance
• RS485, CAN and RS232 communication for inverter and system integration
• Supports parallel expansion of up to 6 units
• LED power display for easy battery status monitoring
• 5-year warranty for reliable long-term use
• Suitable for solar energy storage, UPS backup, off-grid power, commercial facilities and industrial equipment -
Movable LiFePO₄ Battery Technical Specifications:
-
Review the key specifications of the SHANPU MB 512300 movable lithium battery pack, including storage capacity, voltage range, battery type, cycle life, charge current, communication interface, IP rating, parallel capability, dimensions and certification standards.
| Model | MB 512300 |
| Comprehensive Parameters | |
| Battery Voltage | 40V-58.4V |
| Storage Capacity | 15360Wh |
| Weight | 129 kg |
| Colour | White |
| External Dimension | 900*570*420mm |
| Warranty | 5 Years |
| Battery Module Parameters | |
| Type of Battery | LiFePO4 |
| Capacity | 310Ah |
| Battery Cycle Life | 6000 |
| Modular Structure | 1P16S |
| Overall Characteristic | |
| Capacity for assembled cell discharging by 0.2C | ≥300Ah |
| Standard Charge Condition | Charge with 0.5C constant current and 58. 4V constant voltage, charge to 58.4V, and continue charging till current declines to ≤0.01C |
| Maximum Charge Current | 200A |
| Maximum Discharge Current | |
| Internal Resistance | ≤80 m Assemblage Impedance |
| Cycle Life | ≥6000 @ 25°C, 80% EOL |
| Recommend Charging Temperature | 0℃-50℃ |
| Recommend Discharging Temperature | -15°C-50°C |
| Storage Temperature | |
| Humidity | 0-90% |
| Maximum Altitude | 3000m |
| Functional configuration | |
| LED Panel (Light Emitting Diode) | YES |
| Communication | RS485, CAN, RS232 |
| IP Rating | IP21 |
| Parallel Capability | Up to 6 units |
| LED Power Display | Traffic Light Display |
| BMS Control | Control Battery Performance |
| Package Size | 1010*571*733 mm (Carton) |
| Certification | |
| Safety | IEC62109-1, IEC62109-2, UL1741 |
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B |
| RoHS | Yes |
FAQ
1. What is this movable LiFePO4 battery pack used for?
This battery pack is designed for solar energy storage, UPS backup power, off-grid power systems, residential energy storage, commercial facilities and industrial equipment.
2. What is the storage capacity of this battery pack?
The MB 512300 model provides 15.36kWh energy storage capacity, suitable for medium to large backup power and energy storage applications.
3. What type of battery does it use?
It uses LiFePO4 lithium iron phosphate battery cells, which offer high safety, stable performance and long cycle life.
4. Does the battery include BMS protection?
Yes. The built-in BMS helps control battery performance and provides protection against abnormal charging, discharging and operating conditions.
5. Can this battery pack work with solar inverters?
Yes. It supports RS485, CAN and RS232 communication interfaces, making it suitable for integration with compatible solar inverters and energy storage systems.
6. Can multiple units be connected in parallel?
Yes. This battery pack supports parallel expansion of up to 6 units, allowing users to increase total system capacity according to project requirements.
7. What is the cycle life of the battery?
The battery supports up to 6000 cycles under proper operating conditions, making it suitable for long-term energy storage applications.
8. Is this battery suitable for UPS backup power?
Yes. It can be used as a backup energy storage battery for UPS systems, helping provide stable power during outages or unstable grid conditions.
9. What applications are suitable for this battery pack?
It is suitable for solar energy storage, off-grid power, UPS backup, commercial facilities, residential energy storage, industrial equipment and distributed energy projects.
10. What information should I provide for a quotation?
Please provide the required quantity, application scenario, inverter model, communication protocol requirements, destination country and any customization needs.
