30kVA-300kVA Modular UPS
30–300kVA High-Capacity Modular UPS with Scalable Architecture and N+X Redundancy for Large Data Centers, Industrial Systems and Mission-Critical Infrastructure

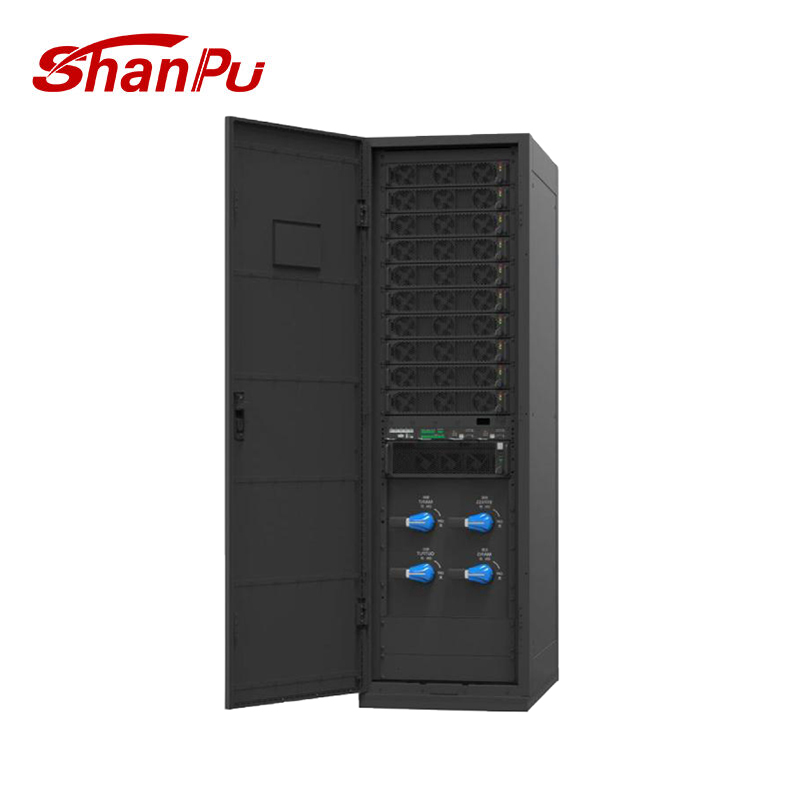

ShanPu 30kVA-300kVA modular UPS is a three-phase online double-conversion UPS built on a 30kVA hot-swappable power module, designed for larger commercial, industrial and critical power applications. Cabinets accept 3, 5 or 10 modules, covering 30-90kVA, 30-150kVA and 30-300kVA. Output is regulated 380/400/415Vac pure sine wave at power factor 1.0 with 0ms transfer between mains, bypass and battery modes, system efficiency reaches 95.5% and input power factor stays ≥0.99, while cabinet charging current of up to 100A and ±180V to ±300Vdc battery banks support demanding backup requirements.
How the Modular UPS Works
The 30-300kVA modular UPS uses an online double-conversion power architecture to continuously regulate the power delivered to critical loads.
When utility power is normal, the rectifier converts incoming AC power into DC power. The inverter then converts the DC power into regulated AC power for the connected equipment. This continuous conversion process helps protect sensitive loads from utility voltage fluctuations, electrical noise and other power-quality problems.
The battery system is maintained in a ready-to-use condition during normal operation. When the utility supply is interrupted, the battery immediately supplies energy to the inverter, allowing the inverter to maintain AC output to the connected load.
The UPS achieves its overall capacity through multiple power modules operating together. The modular architecture allows the system to balance active capacity and redundant capacity according to project requirements. As the facility's load grows, additional modules can be incorporated to increase available UPS capacity without replacing the entire system.
Key Features
High-Capacity 30-300kVA Platform
Covering up to 300kVA, this modular UPS provides a higher-capacity solution for facilities with larger power requirements. It is suitable for projects that need substantial UPS capacity while retaining the flexibility of a modular architecture.
Scalable Power for Growing Infrastructure
The modular design allows capacity to be planned in stages. Facilities can deploy the required capacity initially and expand the system as electrical demand increases, making the UPS suitable for long-term infrastructure development.
N+X Redundancy for Mission-Critical Applications
Multiple power modules can work together to provide the required load capacity while additional modules can be reserved for redundancy. This architecture helps improve system availability and provides greater operational flexibility.
Reduced Maintenance Complexity
Each power module operates as part of the larger UPS system, making system diagnosis and maintenance more structured. Modular servicing can help reduce the disruption associated with maintaining a large UPS installation.
Intelligent Digital Control & Remote Monitoring
DSP digital control provides precise management of UPS operation. RS485 communication and optional SNMP connectivity can be used to integrate the UPS into centralized monitoring and management systems.
Applications
Large Data Centers
The 30-300kVA modular UPS is designed for larger data center environments with substantial and continuously growing power requirements. Its scalable architecture provides a practical way to increase UPS capacity as computing, storage and network loads expand.
Telecom & Network Facilities
Telecommunication and network facilities require dependable power for communication infrastructure and supporting equipment. The UPS provides continuous online power protection and can be configured to meet the availability requirements of critical network loads.
Industrial Automation & Manufacturing
Manufacturing plants can use the UPS to protect automation systems, industrial controllers, monitoring equipment and other critical loads. Stable power helps minimize disruptions that could affect production processes and control operations.
Financial & Mission-Critical Infrastructure
Financial institutions and other mission-critical facilities require high power availability for IT infrastructure and essential systems. The modular UPS supports redundant configurations to provide additional protection against power module failures.
Large Commercial & Public Facilities
Large commercial complexes, government facilities and infrastructure projects can use the UPS to provide centralized power protection for IT systems, communication equipment and other important electrical loads.
Typical Configurations
Step 1 - Size the load. Add up the connected critical load in kW and convert at power factor 1.0; select the cabinet whose module count covers both the load and the required redundancy level.
Step 2 - Choose the cabinet by module count. ECOplus 90-30 (3 modules, 30-90kVA), 150-30 (5 modules, 30-150kVA) or 300-30 (10 modules, 30-300kVA).
Step 3 - Set the redundancy level. Define N+X by installing modules beyond the minimum required by the load, and decide between multi-unit parallel redundant deployment and high-reliability standalone operation.
Step 4 - Match the battery and environment. Select the battery string voltage from ±180V to ±300Vdc (30-50 cells optional); module charging current is 10A and cabinet charging current is 30A / 50A / 100A. Install within 0-40°C, 0-95% RH (non-condensing) and below 1500m altitude (derate 1% per 100m above 1000m).
Custom/OEM Solutions
ShanPu cooperates with global system integrators, EPC contractors and large-project buyers to deliver high-reliability modular UPS solutions for mission-critical infrastructure scenarios. Project support can include large-capacity modular unit selection and multi-stage capacity expansion planning for long-term project operation, multi-unit parallel redundant system design and high-reliability standalone configuration solutions, in-depth compatibility verification for large-scale lithium-ion and lead-acid battery systems, custom utility and battery energy-storage system matching design for critical-grade power requirements, large-batch OEM branding, private-label customization and project-specific packaging solutions, complete sets of certified technical documents and on-site project consultation, large-volume contract terms and dedicated account support for key distribution partners, and full-set technical guidance for high-level redundancy configuration and standardized maintenance schemes. For [OEM and ODM UPS projects], send the required capacity, cabinet preference, redundancy level, battery type and voltage, quantity and destination country for a proposal and quotation.
Technical Specification:
| Model | SPMK90-30 | SPMK150-30 | SPMK300-30 | ||
| Capacity | Cabinet | 30-90kVA | 30-150kVA | 30-300kVA | |
| Power module | 30kVA | ||||
| Input | input method | Three-phase four-wire system with ground wire | |||
| Rated Voltage | 380/400/415Vac | ||||
| voltage range | 138-485Vac | ||||
| frequency range | 40-70Hz | ||||
| Power factor | ≥0.99 | ||||
| Bypass range |
380V Upper limit: +25% (optional+10%,+15%,+20%); 400V Upper limit: +20% (optional+10%,+15%); 415V Upper limit: +15% (optional+10%); Lower limit: -45% (optional -20%, -30%) |
||||
| Bypass frequency protection range: ±10% | |||||
| Input current harmonics | ≤ 3% (under 100% linear load): ≤ 5% (under 100% non-linear load) | ||||
| Output | output method | Three-phase four-wire system with ground wire | |||
| Rated Voltage | 380/400/415Vac | ||||
| Power factor | 1 | ||||
| Voltage Accuracy | ±1% | ||||
| output frequency | Mains mode | Synchronize with input; When the mains frequency exceeds the maximum ± 10% (± 1%, ± 2%, ± 4%, ± 5% can be set), the output frequency (50/60 ± 0.1%) Hz | |||
| Battery Mode | (50/60±0.1%)Hz | ||||
| Peak load ratio | 3:1 | ||||
| switch time | 0ms from mains mode to bypass mode; 0ms from mains mode to battery mode | ||||
| overload capacity |
Load ≤ 110%, 60 min; ≤125%, maintain for 10 min; ≤150% maintain for 1 min; ≤150% immediately switch to bypass |
||||
| Output voltage harmonics | ≤ 2% (linear load), ≤ 4% (non-linear load) | ||||
| efficiency | 95.5% | ||||
| Communication interface | USB,CAN,RS485,FE, Parallel card, dry junction card, SNMP card (optional), LBS (optional), temperature sensor (Optional) | ||||
| battery | battery voltage | ±180V/±192V/±204V/±216V/±228V/±240V/±252V/±264V/±276V/±288V/±300Vdc (30 to 50pcs optional) | |||
| charging current | cabinet | Maximum 30A | Maximum 50A | Maximum 100A | |
| Module | Maximum 10A | ||||
| Working environment | Operating temperature | 0-40℃ | |||
| relative humidity | 0-95% non condensing | ||||
| Storage temperature | -25-55℃(excluding battery) | ||||
| altitude | <1500 meters | ||||
| physical properties | Dimensions (D * W * H)mm | cabinet | 850x600x1350 | 850x600x2000 | |
| Module | 620x440x86 | ||||
| Net Weight (kg) | cabinet | 158 | 158 | 245 | |
| Module | 21.6 | ||||
| Execution Standard | EN 62040-1、 EN 62040-2、 EN 62040-3、 YD/T2165-2017 | ||||
FAQ
What is a 30–300kVA Modular UPS?
A 30–300kVA Modular UPS is a high-capacity online UPS system designed for larger commercial, industrial and critical power applications. Its modular architecture allows multiple power modules to work together while supporting scalable capacity and redundancy.
How does a 30–300kVA Modular UPS protect critical loads?
The UPS uses online double conversion to continuously regulate the power supplied to the load. This helps protect sensitive equipment from utility disturbances such as voltage fluctuations, electrical noise and power interruptions.
Why choose a 30–300kVA Modular UPS for critical applications?
The system combines high-capacity power protection with modular scalability and N+X redundancy. This makes it suitable for applications where power availability, future expansion and maintenance flexibility are important.
What applications are suitable for a 30–300kVA Modular UPS?
Typical applications include industrial automation, manufacturing facilities, larger server rooms, telecommunications, financial systems, commercial buildings and other critical infrastructure.
How does N+X redundancy improve UPS availability?
N+X redundancy provides additional power modules beyond the minimum capacity required by the load. If one module becomes unavailable, the remaining modules can continue supporting the load when the system is properly configured and within its available capacity.
Can the UPS be expanded for future industrial power requirements?
Yes. The modular architecture allows capacity to be increased by adding power modules within the system's designed capacity range. This provides flexibility for facilities with growing electrical or production requirements.
Can the modular UPS protect industrial automation and control systems?
Yes. The online double-conversion design provides regulated output power for sensitive industrial loads such as automation controllers, control systems, monitoring equipment and other critical electronic equipment, provided the load is properly sized for the UPS.
Can the 30–300kVA UPS be integrated with remote monitoring?
Yes. Communication interfaces such as RS485 can be used for system communication, while optional SNMP connectivity can support remote monitoring and integration with centralized management systems, depending on the configuration.
