30kVA Industrial UPS Solution for School Server Room Power Protection

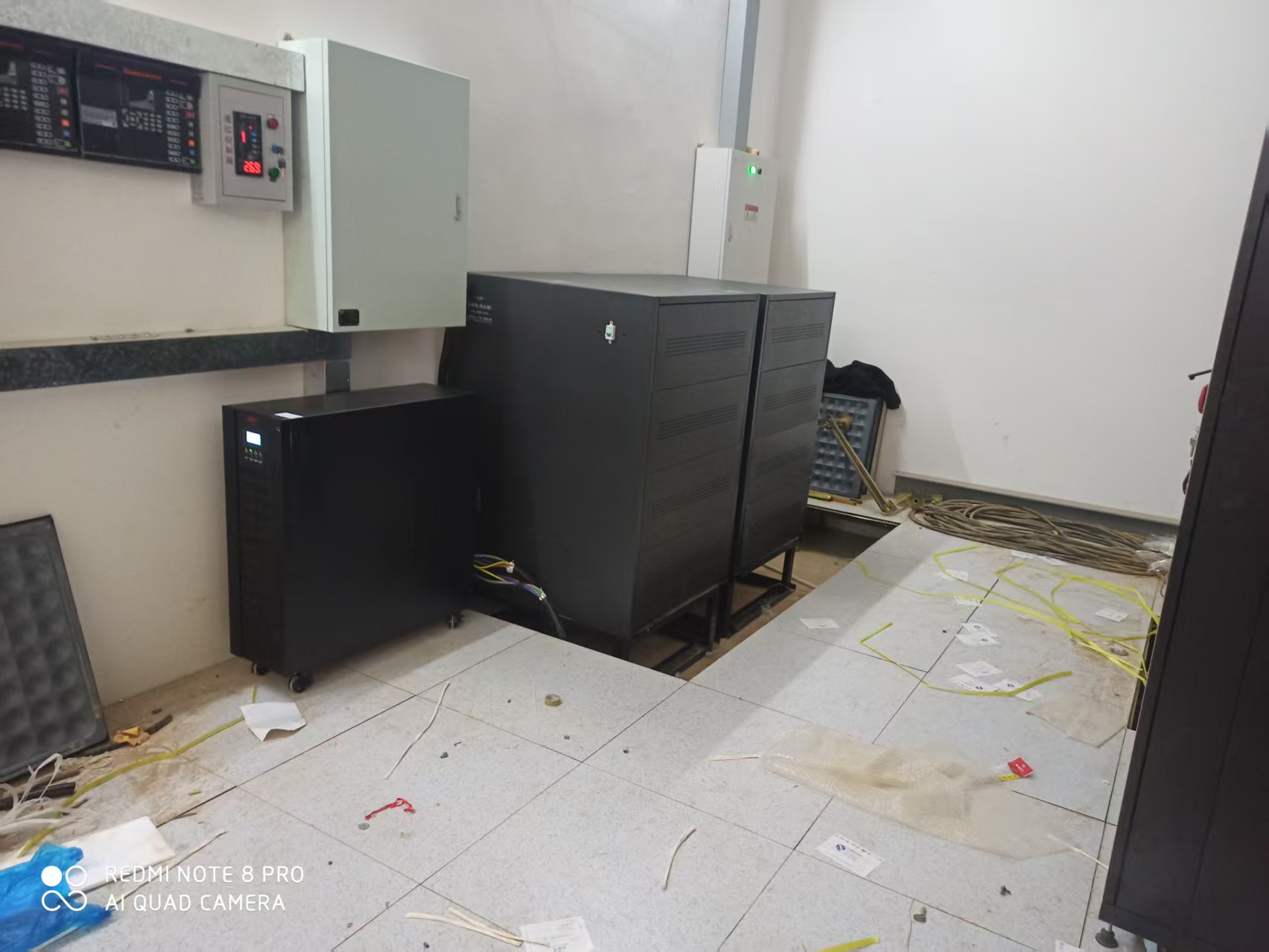

The correct UPS size depends on the total power consumption of the server room, future expansion plans, and the required backup time. For school server rooms supporting teaching management systems, student databases, campus networks, surveillance systems, and online learning platforms, a UPS should typically be sized with 20–30% capacity redundancy. In this project, the server room load reached approximately 20kW, so a 30kVA three-phase online UPS was selected to ensure stable operation, provide sufficient expansion capacity, and avoid long-term full-load operation.

The required backup time depends on the facility's operational requirements and local power conditions. For most educational institutions, 30–60 minutes may be sufficient for controlled shutdown procedures. However, schools with critical servers, data storage systems, or frequent power outages often require 1–2 hours of battery backup to maintain uninterrupted operation and ensure data security. In this project, the school required a minimum of 2 hours of backup power, which was achieved through a customized external battery bank configuration.

A three-phase UPS is better suited for medium and large server rooms because it provides balanced power distribution, higher capacity, and improved efficiency. Compared with single-phase UPS systems, three-phase UPS solutions can handle larger loads, reduce phase imbalance issues, and offer better protection against voltage fluctuations and harmonics. For school server rooms with multiple servers, network equipment, and continuous operation requirements, a three-phase online UPS delivers greater reliability and scalability.

The number of batteries required depends on the UPS DC voltage configuration, load level, battery capacity, and desired backup time. A standard 30kVA industrial UPS commonly uses 32 to 40 batteries in a battery string, while extended backup applications may require multiple strings. In this school server room project, the system was equipped with 64 units of 12V 100Ah maintenance-free batteries to provide more than 2 hours of full-load backup power.

Yes. An online double-conversion UPS continuously converts incoming AC power to DC and then back to clean AC output, isolating connected equipment from power disturbances. This design protects servers and network equipment from voltage fluctuations, power surges, brownouts, harmonics, frequency instability, and sudden power failures. In mission-critical environments such as school data rooms, an online UPS helps prevent unexpected shutdowns, hardware damage, and data loss.

A high-quality industrial online UPS typically has a service life of 10–15 years when properly maintained. Battery lifespan varies depending on battery type, operating temperature, charging conditions, and usage frequency. Most VRLA batteries require replacement every 3–5 years, while lithium battery systems can last significantly longer. Regular maintenance, environmental monitoring, and battery testing are essential to maximizing UPS reliability and extending system lifespan.
