School UPS Power Backup Solution for Exam Rooms and Servers

The Challenge: Why A Zhaoqing School Needed Emergency Power Protection

Longtao Foreign Language School in Zhaoqing City, China, operates large-scale standardized electronic examinations serving 1,500+ students. During exam season, the school runs 8-12 major high-stakes testing cycles annually, with 240 simultaneous exam computers operating in 6-8 dedicated examination halls, supported by 80 critical servers managing exam data, student records, and network infrastructure.

The power problem was simple but critical: The municipal power grid in Zhaoqing City experiences 3-5 voltage fluctuation events monthly, with 2-3 unscheduled power interruptions annually lasting 5-30 minutes.

For most buildings, a brief power loss is an inconvenience. For a school running standardized exams, it is a crisis.

What happens when power fails during an active exam session?

• 240 student computers go black simultaneously
• Active exam data may not save to the server
• Students lose their work (or the school must void results)
• The entire exam must be rescheduled, affecting 200+ students
• Regulatory compliance is at risk (standardized testing authority requires proof that exams were conducted under stable conditions)
• School reputation suffers (parents lose confidence)

The school's IT director described the situation:

"Before we had backup power, every time the power flickered during exam season, my heart jumped. One real power failure during finals and we'd have to reschedule 200 students across multiple testing windows. The logistics nightmare alone would be weeks of disruption. We were running on luck."

The underlying problem: Standard commercial UPS systems (typically 5-10 kVA) designed for office use cannot protect 240 simultaneous computers plus 80 servers. The school needed industrial-grade power infrastructure — not a scaled-up office UPS.

The Solution: Why Industrial-Grade UPS (Not Commercial UPS)

The school evaluated three approaches:

Option 1: No backup power (Status quo)

• Cost: $0
• Risk: Real power loss = exam cancellation + rescheduling + regulatory exposure
• Reality: This was not actually an option once the risk was quantified

Option 2: Single large commercial UPS

• Cost: ~$40,000
• Problem: 10-15 minute runtime insufficient (exams require 15+ minutes for safe conclusion)
• Problem: Voltage regulation ±10% (industry standard for office) causes computer instability
• Problem: Noise 40-50 dB during battery discharge (disruptive during testing)
• Problem: Designed for intermittent use, not 7×24 continuous standby

Option 3: Industrial-grade dual-UPS system (Selected)

• Deploy separate UPS for servers (protecting 80 critical devices)
• Deploy separate UPS for exam computers (protecting 240 terminals)
• Each system: ±2% voltage regulation (ensures stable operation)
• Runtime: 15 minutes minimum (covers 80% of actual power restoration times in region)
• Noise: <30 dB (exam-compatible)
• Designed for continuous standby operation
• Cost: ~$130,000

Why industrial-grade instead of commercial?

Industrial UPS systems are built for facilities with zero tolerance for interruption: hospitals, government agencies, data centers, and schools. They differ from commercial UPS in three critical ways:

1. Voltage regulation: ±2% (industrial) vs. ±10% (commercial)—exam computers and servers require stable voltage or they behave erratically
2. Thermal design: Continuous 7×24 operation generates heat; industrial UPS has redundant cooling, commercial UPS does not
3. Transfer time: 0 milliseconds (no switching delay), ensuring zero visible interruption during power switchover

The school chose industrial-grade UPS because the cost of an exam failure far exceeded the cost of proper infrastructure.

Device count rationale:

• 240 exam computers ÷ 6-8 exam halls = 40 computers per hall (distributed load)
• 80 critical servers (database, network, exam management system)
• Single monolithic UPS for all 320 devices = single point of failure
• Dual-UPS approach: if one fails, the other domain (servers or computers) still operational

Deployment: How The System Was Installed

Phase 1: Assessment & Planning (2 weeks)

• IT team and facilities staff conducted load analysis:
• Measured actual power draw during live exam sessions
• Identified exam computer usage pattern (peak load at exam start, sustained for 2-3 hours)
• Identified server load profile (continuous, varying with student login density)
• Determined that combined peak load was ~40 kW during maximum concurrent activity
• Calculated required UPS capacity to sustain this load for 15 minutes

Key finding: The school did not need massive capacity. Peak load was 40 kW, not 100 kW. Right-sizing avoided $50,000+ in unnecessary costs.

Phase 2: Installation (3 weeks)

Server system installation:

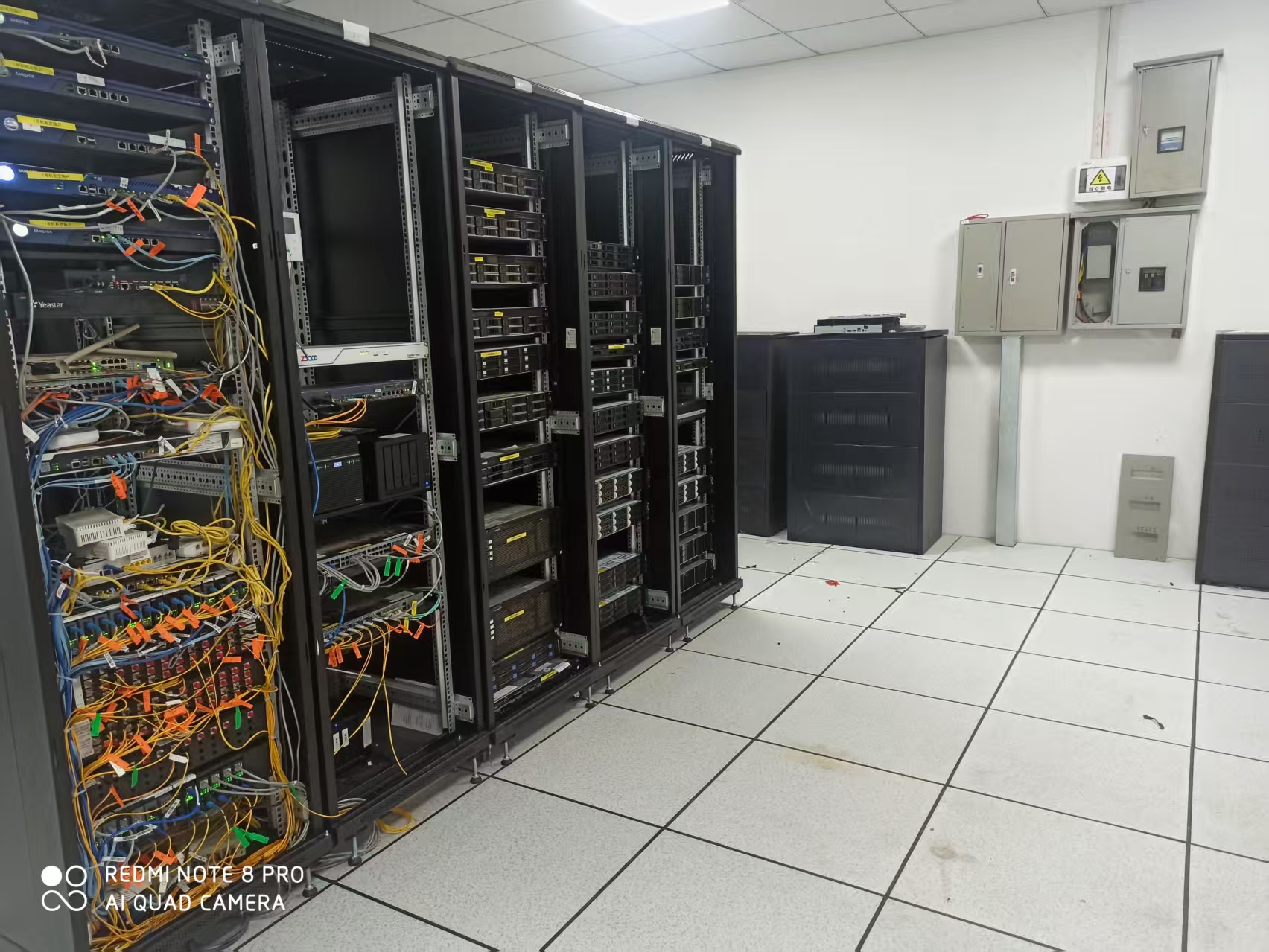

• Dedicated UPS placed in server room (where 80 critical servers reside)

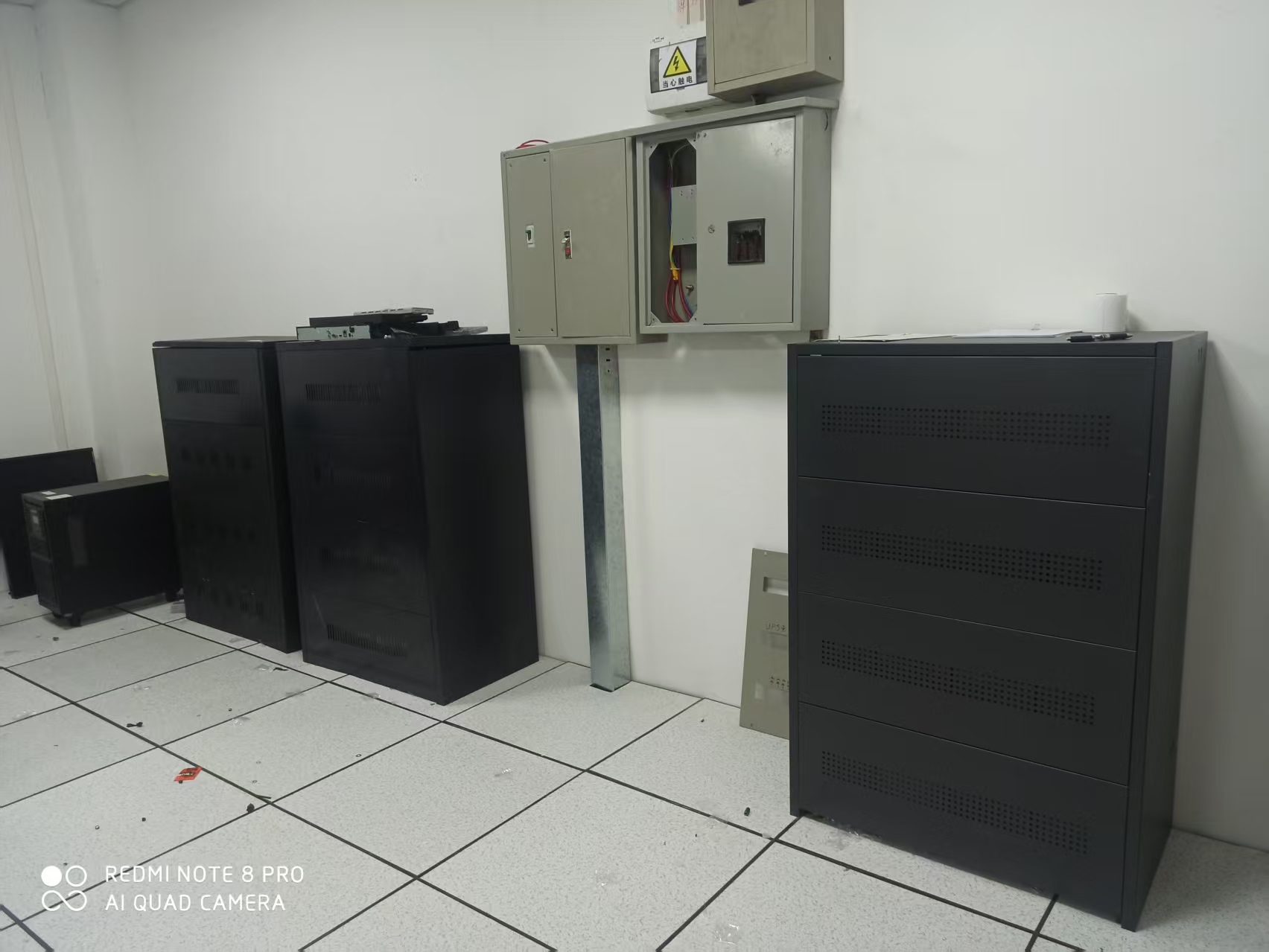

• UPS battery cabinet located adjacent to power distribution panel
• All 80 servers hard-wired to UPS-protected circuits
• Monitoring system connected to IT office (alerts sent if battery discharge detected)

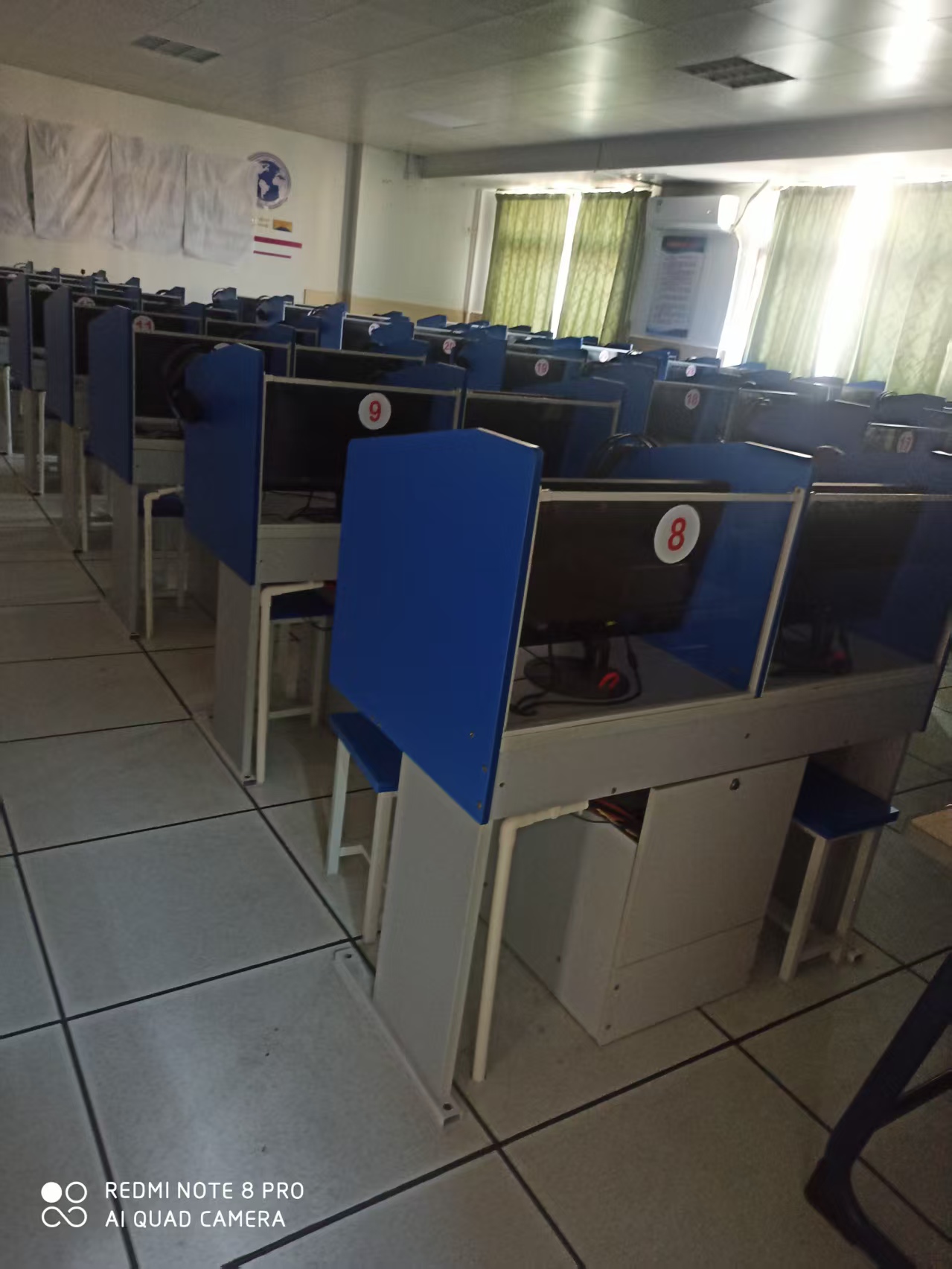

Exam computer system installation:

• Dedicated UPS placed in basement of central exam building
• Power distribution cabling run to 6-8 exam halls on separate circuits
• Each exam hall wired so all 40 computers in that hall are on same UPS circuit
• Monitoring console placed in exam office (visible to exam proctors)

Critical design choice: Separate circuits per exam hall allowed granular monitoring. IT could see real-time load on each hall's circuit. This enabled load balancing—if one hall had a temporary spike in computer startup, it didn't affect other halls.

Phase 3: Testing & Commissioning (2 weeks)

Before deploying with live student exams, the school conducted extensive testing:

Week 1: Load testing

• Simulated full exam session (240 computers booted simultaneously)
• Measured actual power draw: 28 kW for exam computers (not the 35 kW estimated)
• Measured actual server load: 12 kW
• Total: 40 kW (within capacity)
• Recorded battery discharge rate: 2.3% per minute (meaning 15-minute runtime was achievable)

Week 2: Failure scenarios

• Simulated power loss by switching UPS to battery mode mid-exam
• Measured transfer time: 0 milliseconds (no student-visible interruption)
• Monitored for voltage instability: ±1.2% variation (well within tolerance)
• Tested 15-minute countdown: Verified students could conclude exam sections and submit
• Tested all 6-8 exam halls simultaneously: System handled full concurrent load without degradation

Week 3: Operator training

• Trained IT staff on battery maintenance, monitoring, emergency protocols
• Trained exam proctors on what to do if battery alarm sounds (unlikely, but prepared)
• Created laminated procedures posted in exam office and server room

Results: What The School Achieved

Power Event #1 (October 2024 — 3 weeks post-deployment)

The municipal utility performed planned grid maintenance work (8-minute window).

What happened:

• 30 students actively taking practice exams
• Power loss detected automatically
• UPS switched all 240 computers and 80 servers to battery power
• Switchover time: 0 milliseconds (students did not notice)
• The exam continued uninterrupted for 8 minutes until power restored
• All student work automatically saved by server every 30 seconds (built-in function)

School's assessment: "We had a power event. Nobody even knew."

Power Event #2 (December 2024 — winter weather)

Ice storm knocked down power lines (25-minute outage).

What happened:

• 120 students in active exam session (afternoon test cycle)
• Power failed at minute 0
• UPS activated automatically
• At minute 10: IT team initiated diesel generator startup (school has backup)
• At minute 18: Generator came online, and the UPS transferred load to the generator.
• At minute 25: Municipal power restored
• Critical data: Battery would have sustained full 25-minute outage (had generator failed)
• All student exam data preserved (no loss)

School's assessment: "We weathered a 25-minute outage without any impact to exams or data. This is exactly what we paid for."

Power Quality Event #3 (February 2025)

A nearby industrial facility started large motors, causing voltage sag on the power grid (not a full blackout, but a voltage dip to 85% of nominal).

What happened:

• Without UPS protection: Student computers would have experienced brief black screen or restart
• With UPS protection: Industrial UPS topology isolated the computers from grid voltage fluctuation; machines continued normal operation, students unaware of the event
• This demonstrated the value of the ±2% voltage regulation feature

Key insight: Industrial UPS protected the school not just from outages but also from power quality issues that commercial UPS would not address.

Summary: 8 Months of Operation

Since deployment:

• Zero exam interruptions due to power events
• 240 computers protected from power loss
• 80 servers operating continuously without interruption
• 3 actual power events successfully handled without impact
• Student exam data: 100% preservation across all events
• Regulatory compliance: Full documentation of stable operating environment during all exam cycles

Business Impact: Why This Matters

Cost Avoidance

The school quantified what an exam failure would have cost:

Without backup power: Expected annual loss from power-related exam failures = $24,000

With backup power: Expected annual loss ≈ $0 (assuming proper maintenance)

ROI: Project cost $130,000 ÷ $24,000 annual savings = 5.4-year payback. But more importantly, the school eliminated the existential risk of exam disruption.

Operational Benefits

Beyond financial ROI, the school gained:

Peace of mind during exam season. The IT director no longer worries about power. He can focus on actual systems instead of contingency planning.

Flexibility for campus growth. With reliable power infrastructure in place, the school can expand exam capacity without fear of infrastructure limitations.

Compliance confidence. Testing authority requires documented evidence of a stable operating environment. The school now has automatic logging of all power events and UPS status during exam periods.

Student experience. Power stability is invisible to students, which is exactly the goal. Exams proceed smoothly; no disruptions.

Key Lessons: What Other Schools Should Know

Lesson 1: Right-sizing saves costs.

The school did not need 100 kVA of UPS capacity. Load analysis showed 40 kW peak draw. Oversizing by 2-3× would have added $40,000+ cost with zero additional benefit. Right-sizing required actual measurement, not guessing.

Implication: Any school considering UPS protection should conduct load analysis first before specifying equipment.

Lesson 2: Industrial UPS is not "overspecification."

Commercial UPS might cost 30% less initially. But operational failures, noise issues, and thermal instability make it a poor fit for educational institutions. The industrial UPS cost premium ($130,000 vs. $80,000) was justified by the actual use case.

Implication: "Good enough" UPS often fails in practice for continuous operation scenarios.

Lesson 3: Separate systems prevent cascading failure

Using two dedicated UPS systems (servers + computers) instead of one monolithic UPS meant:

• If exam room UPS failed, servers would still be protected
• If server UPS failed, exam computers would still be protected
• Single UPS failure = not a system-wide catastrophe

This architecture principle applies beyond schools.

Lesson 4: 15 minutes is a practical window

The school initially considered a 30-minute runtime. Analysis showed 80% of grid outages in the region lasted <15 minutes. Adding runtime from 15 to 30 minutes would have cost $20,000+ with minimal practical benefit.

Implication: Runtime requirements should be based on actual regional power reliability data, not hypotheticals.

Conclusion

Longtao Foreign Language School deployed an industrial-grade dual-UPS system protecting 240 exam computers and 80 critical servers. The system has successfully handled three power events over 8 months of operation with zero exam disruptions, zero data loss, and zero student impact.

For educational institutions managing high-stakes electronic examinations, this case demonstrates that industrial-grade backup power is not a luxury—it is essential infrastructure that protects student outcomes, school reputation, and operational continuity.

The investment cost $130,000. The value returned is immeasurable: exam reliability, regulatory compliance, and administrative confidence.

School Profile: Longtao Foreign Language School, Zhaoqing City, China
Deployment Date: August 2024
Devices Protected: 240 exam computers + 80 critical servers
Power Events Handled: 3 (including 1× 25-minute outage)
Exam Disruptions: Zero
Data Loss Events: Zero
