Lithium Ion vs Lead Acid UPS Battery: Complete Comparison Guide for 2026

Q: Which UPS battery lasts longer — lithium-ion or lead acid?

Lithium-ion UPS batteries typically last 8 to 15 years, while lead acid VRLA batteries generally last 3 to 5 years. Under comparable operating conditions, lithium-ion batteries deliver 2 to 3 times the service life of lead acid.

Q: Can lithium batteries replace lead acid UPS batteries?

In most cases, yes. Many modern UPS systems support both battery chemistries with configurable charge profiles. However, battery compatibility should always be verified with the UPS manufacturer before switching. ShanPu UPS systems support both configurations.

Q: Are lithium UPS batteries safe for data centers?

Yes. Modern LiFePO₄ batteries include advanced BMS with thermal protection, overcharge prevention, and cell balancing. They meet international safety standards including UL 1973 and IEC 62619, and are widely deployed in data centers globally.

Q: Why are lithium UPS batteries more expensive upfront?

Lithium batteries use advanced cell technology and integrated BMS electronics. However, when you factor in fewer replacements, lower maintenance, better efficiency, and longer lifespan, the total cost of ownership over 10–15 years is typically 30–50% lower than lead acid.

Q: Which UPS battery is best for data centers?

Lithium-ion batteries are increasingly the standard for data centers due to their longer service life, compact footprint, faster recharge, lower maintenance, and superior performance under frequent power disturbances.

Q: What is the total cost of ownership difference?

While lithium-ion batteries cost 2–3x more upfront, their TCO over 15 years is typically 30–50% lower. The breakeven point usually occurs within 4–6 years of installation.

Fri, 07/24/2026

Hugo Zhong

The performance of a UPS system depends on far more than the UPS unit itself. The battery chemistry you choose directly determines backup runtime, system reliability, maintenance frequency, installation footprint, and — critically — your total operating costs over the system's lifetime.

For decades, lead acid batteries served as the default choice for uninterruptible power supply applications. Today, advances in lithium-ion battery technology have led data centers, telecommunications operators, healthcare systems, and industrial facilities worldwide to reconsider their battery strategy.

So which option is right for your business? This guide provides a detailed, data-driven comparison to help you decide.

Send My Request

Get a Free Quote

Table of Contents

≡

Why UPS Battery Selection Matters
What Is a Lead Acid UPS Battery?
Advantages of Lead Acid UPS Batteries
Limitations of Lead Acid UPS Batteries
What Is a Lithium-Ion UPS Battery?
What Is a Lithium-Ion UPS Battery?
Advantages of Lithium-Ion UPS Batteries
Limitations of Lithium-Ion UPS Batteries
Lithium Ion vs Lead Acid UPS Battery: Head-to-Head Comparison
Lifespan: The Long-Term Reliability Factor
Lead Acid Battery Lifespan
Lithium-Ion Battery Lifespan
Charging Speed: Recovery After Outages
Runtime and Usable Capacity: Getting More from Your Battery
Space and Weight: Installation Flexibility
Maintenance Requirements: The Hidden Cost
Total Cost of Ownership: The Real Financial Picture
Lead Acid TCO Profile
Lithium-Ion TCO Profile
Application Guide: Which Battery for Your Use Case?
How to Choose the Right UPS Battery for Your Project
1. Start with the Load and Runtime Requirement
2. Compare Initial Budget and Lifecycle Cost
3. Check Installation Space and Weight
4. Review Maintenance Resources
5. Confirm UPS Compatibility
6. Consider Operating Temperature
RFQ Checklist: What to Provide Before Asking for a UPS Battery Quote
Conclusion
FAQ

Why UPS Battery Selection Matters

A UPS battery is the energy storage component that supplies power when utility power fails. While the UPS itself converts and manages power delivery, the battery determines:

Backup runtime — how long your equipment stays operational during an outage
Replacement frequency — how often you need to procure and install new batteries
Maintenance demands — ongoing inspections, testing, and servicing requirements
Installation footprint — physical space and structural load in your facility
Total cost of ownership — the real long-term financial impact beyond purchase price

For businesses operating in regions with frequent voltage fluctuations and power disturbances, battery selection becomes even more critical. Choosing the wrong technology can increase maintenance expenses by hundreds of percent, reduce system reliability during critical outages, and shorten the overall lifespan of your power protection investment.

Battery selection deserves the same level of evaluation as UPS sizing and system design.

What Is a Lead Acid UPS Battery?

Lead acid batteries have powered UPS systems for over 50 years and remain one of the most widely deployed battery technologies in commercial and industrial backup power applications.

Most UPS systems use sealed valve-regulated lead acid (VRLA) batteries, which come in two variants:

AGM (Absorbent Glass Mat) — the most common type, using fiberglass separators to hold the electrolyte
Gel — using a silica gel to immobilize the electrolyte, offering better deep discharge tolerance

These batteries are widely available, relatively inexpensive at point of purchase, and compatible with the majority of legacy UPS systems in the field.

Advantages of Lead Acid UPS Batteries

Lower initial purchase cost (typically 50–70% less than lithium equivalents)
Proven technology with decades of deployment history
Globally available supply chain and replacement stock
Compatible with most existing UPS architectures

Limitations of Lead Acid UPS Batteries

Shorter service life (3–5 years typical)
Larger physical footprint and heavier weight
Slower charging times (6–10 hours)
Higher maintenance and replacement frequency
Reduced performance in high-temperature environments
Lower energy efficiency during charge/discharge cycles

Lead acid batteries remain a practical choice for small offices, budget-constrained projects, or installations where the UPS is rarely called upon for extended backup.

What Is a Lithium-Ion UPS Battery?

Lithium-ion batteries are rapidly becoming the preferred choice in modern UPS systems, driven by higher energy density, significantly longer lifespan, and dramatically lower maintenance requirements.

In UPS applications, lithium iron phosphate (LiFePO₄) chemistry is the dominant type, chosen for its excellent thermal stability, long cycle life, and strong safety profile. LiFePO₄ cells are the same chemistry used in grid-scale energy storage systems worldwide.

Compared with lead acid batteries, lithium-ion systems deliver more usable energy per unit of volume and weight, making them ideal for space-constrained environments such as data centers and telecommunications facilities.

What Is a Lithium-Ion UPS Battery?

Lithium-ion batteries are increasingly used in modern UPS systems because they can offer higher energy density, longer service life, faster recharge, and lower maintenance requirements.

In many UPS applications, lithium iron phosphate, or LiFePO₄, is preferred because of its thermal stability, long cycle life, and strong safety profile compared with some other lithium chemistries.

A lithium-ion UPS battery system typically includes a battery management system, or BMS, which monitors cell voltage, temperature, state of charge, and state of health. The BMS helps protect the battery pack and provides operating data that can support maintenance planning.

Compared with lead-acid batteries, lithium-ion UPS batteries usually provide more usable energy per unit of size and weight. This makes them useful for data centers, network cabinets, telecom sites, medical facilities, commercial buildings, and other backup power applications where space and reliability matter.

For projects that require compact lithium UPS protection, ShanPu provides options such as the Lithium Battery Online UPS 1kVA–3kVA and Rack Mount Lithium UPS for Network Cabinets.

Advantages of Lithium-Ion UPS Batteries

Lithium-ion UPS batteries may provide:

Longer service life in suitable operating conditions
Faster recharge after power interruptions
Higher usable capacity
Lower weight and smaller installation footprint
Reduced replacement frequency
Lower routine maintenance workload
Integrated monitoring through BMS functions
Better suitability for space-constrained and remote installations

Limitations of Lithium-Ion UPS Batteries

Lithium-ion batteries are not automatically the best choice for every UPS project. Buyers should also consider:

Higher initial purchase cost
UPS controller and charger compatibility
BMS communication requirements
Battery certification and safety documentation
Availability of local service and replacement support
Proper installation, ventilation, and protection requirements

Before replacing an existing lead-acid UPS battery bank with lithium-ion batteries, buyers should confirm whether the UPS charger, firmware, battery voltage range, and monitoring system are compatible.

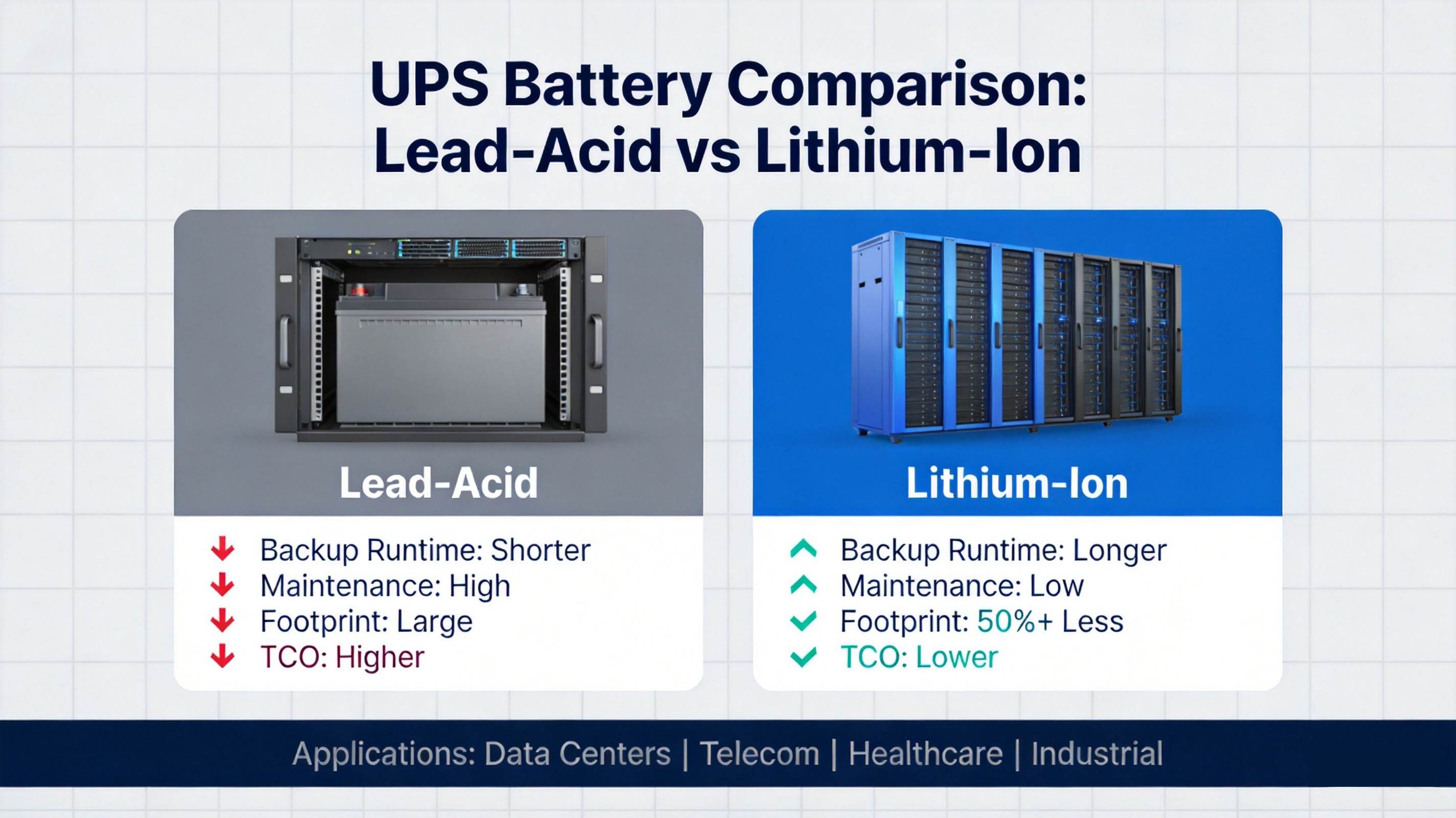

Lithium Ion vs Lead Acid UPS Battery: Head-to-Head Comparison

The following comparison table summarizes the key performance differences between lithium-ion and lead acid UPS battery technologies.

Feature	Lithium-Ion (LiFePO₄)	Lead Acid (VRLA)
Service Life	8–15 years	3–5 years
Weight	50–60% lighter	Significantly heavier
Charging Speed	1–4 hours	6–10 hours
Energy Density	High (compact design)	Lower (larger footprint)
Maintenance	Minimal (auto BMS)	Regular inspections required
Space Required	Up to 70% less floor space	Larger battery cabinets
Round-trip Efficiency	95–98%	85–90%
Deep Discharge Tolerance	Excellent (80%+ DOD)	Limited (50% DOD recommended)
Replacement Cycles (15 yr)	1–2 times	3–4 times
Initial Purchase Cost	Higher	Lower
Total Cost of Ownership	Often 30–50% lower	Often higher

Lifespan: The Long-Term Reliability Factor

Battery lifespan is arguably the single most impactful factor when evaluating UPS battery technologies over the life of your installation.

Lead Acid Battery Lifespan

Most VRLA batteries used in UPS systems deliver an expected design life of 3 to 5 years under normal operating conditions. However, actual service life is heavily influenced by:

Operating temperature — every 10°C above 25°C can halve battery life
Charge/discharge cycling — frequent outages accelerate degradation
Depth of discharge — regular deep discharges reduce cycle count
Maintenance quality — neglected batteries fail earlier

In tropical or high-temperature environments — common across Africa, Southeast Asia, and the Middle East — lead acid battery life may be reduced to just 2–3 years.

Lithium-Ion Battery Lifespan

Lithium-ion (LiFePO₄) UPS batteries typically deliver 8 to 15 years of reliable service. Under comparable conditions, lithium batteries last 2 to 3 times longer than lead acid alternatives.

LiFePO₄ chemistry also demonstrates better capacity retention at elevated temperatures, making it particularly well-suited for deployments in demanding climates.

For facilities prioritizing long-term reliability and reduced lifecycle costs, lifespan is often the strongest argument for lithium-ion adoption.

battery charging speed

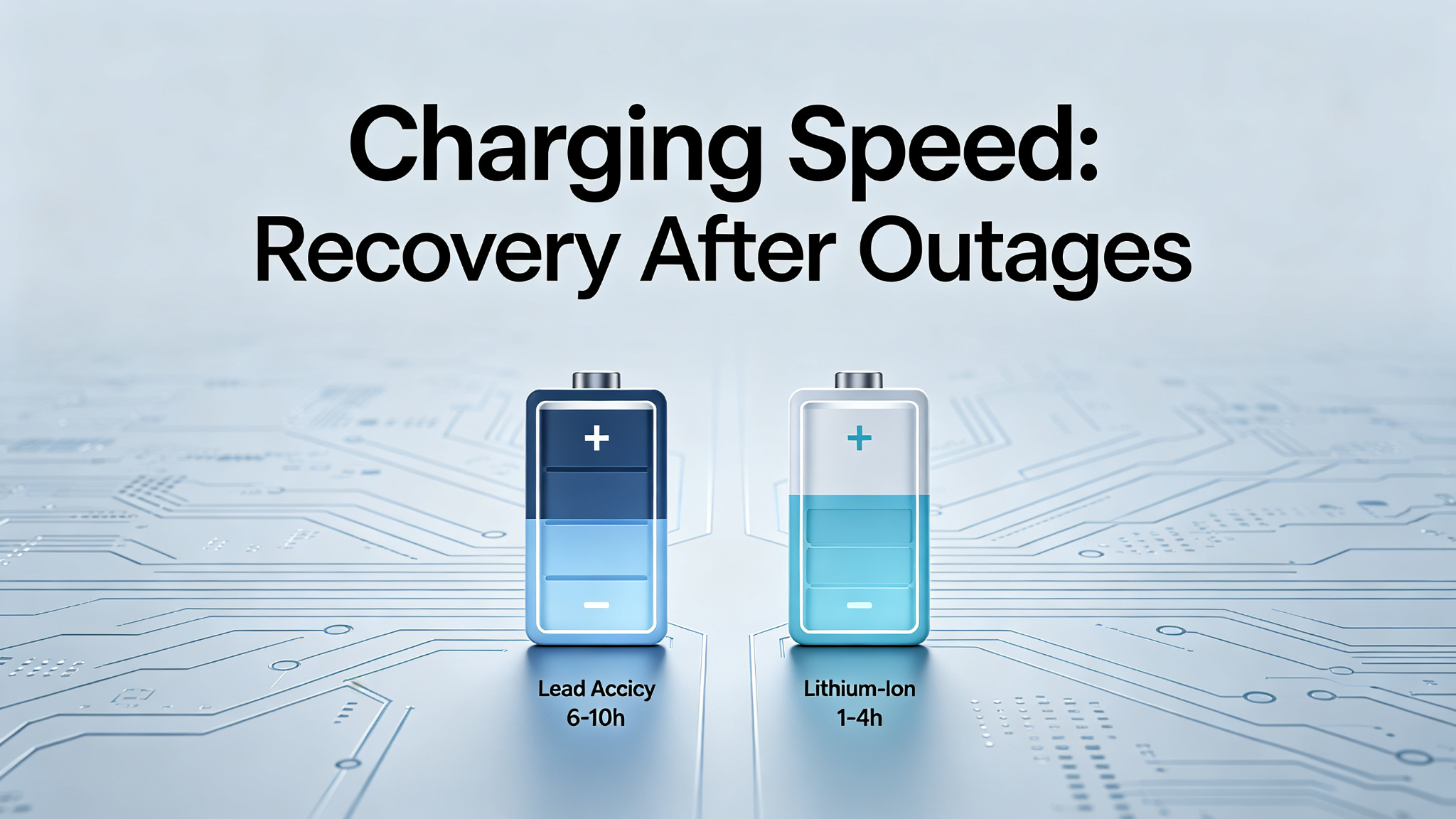

Charging Speed: Recovery After Outages

In regions experiencing frequent power interruptions, recharge speed directly affects your facility's readiness for subsequent outages.

Lead Acid: Typical recharge from empty to 80% capacity takes 6–10 hours. A full charge may take 12+ hours.
Lithium-Ion: Typical recharge to 80% capacity takes 1–4 hours. Full charge is often achievable within the same timeframe.

This difference is critical in areas with recurring voltage fluctuations or scheduled load shedding. A lithium-ion UPS can recover full backup capacity between short outages, while a lead acid system may still be partially depleted when the next interruption occurs.

Runtime and Usable Capacity: Getting More from Your Battery

A common misconception is that batteries with the same rated Ah capacity deliver the same runtime. In practice, usable capacity differs significantly between chemistries.

Lead Acid: Best performance when discharge depth stays below 50%. Frequent deep discharges accelerate aging.
Lithium-Ion: Can safely discharge to 80%+ depth of discharge (DOD) without significant life reduction.

This means a 100Ah lithium battery delivers more usable energy than a 100Ah lead acid battery — often equivalent to the runtime of a lead acid bank rated 40–60% larger. This advantage reduces the number of battery cabinets needed and frees up valuable floor space.

Space and Weight: Installation Flexibility

Physical installation requirements are a major consideration for data centers, server rooms, telecommunications shelters, and commercial buildings.

Lead acid battery banks:

Require significantly more floor space
Add substantial structural load (concrete reinforcement may be needed)
Create transportation and handling challenges

Lithium-ion battery systems:

Up to 70% smaller footprint for equivalent runtime
50–60% lighter, reducing structural requirements
Modular designs allow flexible placement and scaling

For facilities where real estate is expensive or floor loading is limited, lithium batteries offer a clear and measurable advantage.

Maintenance Requirements: The Hidden Cost

Over the lifetime of a UPS system, maintenance costs can become substantial — especially with lead acid technology.

Lead acid systems typically require:

Quarterly visual inspections
Annual capacity/load testing
Proactive replacement before end of life
Environmental monitoring (temperature, ventilation)
Electrolyte monitoring (for flooded types)

Lithium-ion systems with integrated BMS:

Automatic cell voltage and temperature monitoring
Real-time state-of-health reporting
No scheduled capacity testing required
No proactive replacement cycles needed
Remote monitoring capability via network connection

The maintenance cost difference is especially significant for organizations managing multiple UPS installations across several sites or regions.

Total Cost of Ownership: The Real Financial Picture

Smart purchasing decisions look beyond initial price to evaluate total cost of ownership (TCO) over the system's operational lifetime.

Lead Acid TCO Profile

Cost Component	15-Year Projection
Initial purchase	★☆☆ (Low)
Replacement batteries (3–4 cycles)	★★★ (High)
Maintenance labor	★★★ (High)
Energy waste (lower efficiency)	★★☆ (Moderate)
Floor space cost	★★★ (High)
Disposal/recycling costs	★★☆ (Moderate)
Overall TCO	★★★ (Higher)

Lithium-Ion TCO Profile

Cost Component	15-Year Projection
Initial purchase	★★★ (High)
Replacement batteries (0–1 cycles)	★☆☆ (Low)
Maintenance labor	★☆☆ (Low)
Energy savings (higher efficiency)	★☆☆ (Low)
Floor space savings	★☆☆ (Low)
Disposal/recycling costs	★☆☆ (Low)
Overall TCO	★☆☆ (Lower)

Application Guide: Which Battery for Your Use Case?

Different applications demand different priorities. Here is a practical recommendation matrix:

Application Scenario	Recommended Battery	Reason
Small office UPS (< 3 kVA)	Lead Acid or Lithium	Budget sensitivity; infrequent outages
Server room (3–20 kVA)	Lithium-Ion	Space constraints; reliability priority
Data center (20 kVA+)	Lithium-Ion	Long-term TCO; density; maintenance
Industrial manufacturing	Lithium-Ion	Harsh environment tolerance; uptime
Telecommunications tower	Lithium-Ion	Remote sites; temperature resilience
Healthcare / hospital	Lithium-Ion	Mission-critical; zero tolerance for failure
Budget-constrained project	Lead Acid	Lowest initial investment
Space-constrained installation	Lithium-Ion	Up to 70% less floor space
Regions with frequent outages	Lithium-Ion	Fast recharge; deep discharge tolerance

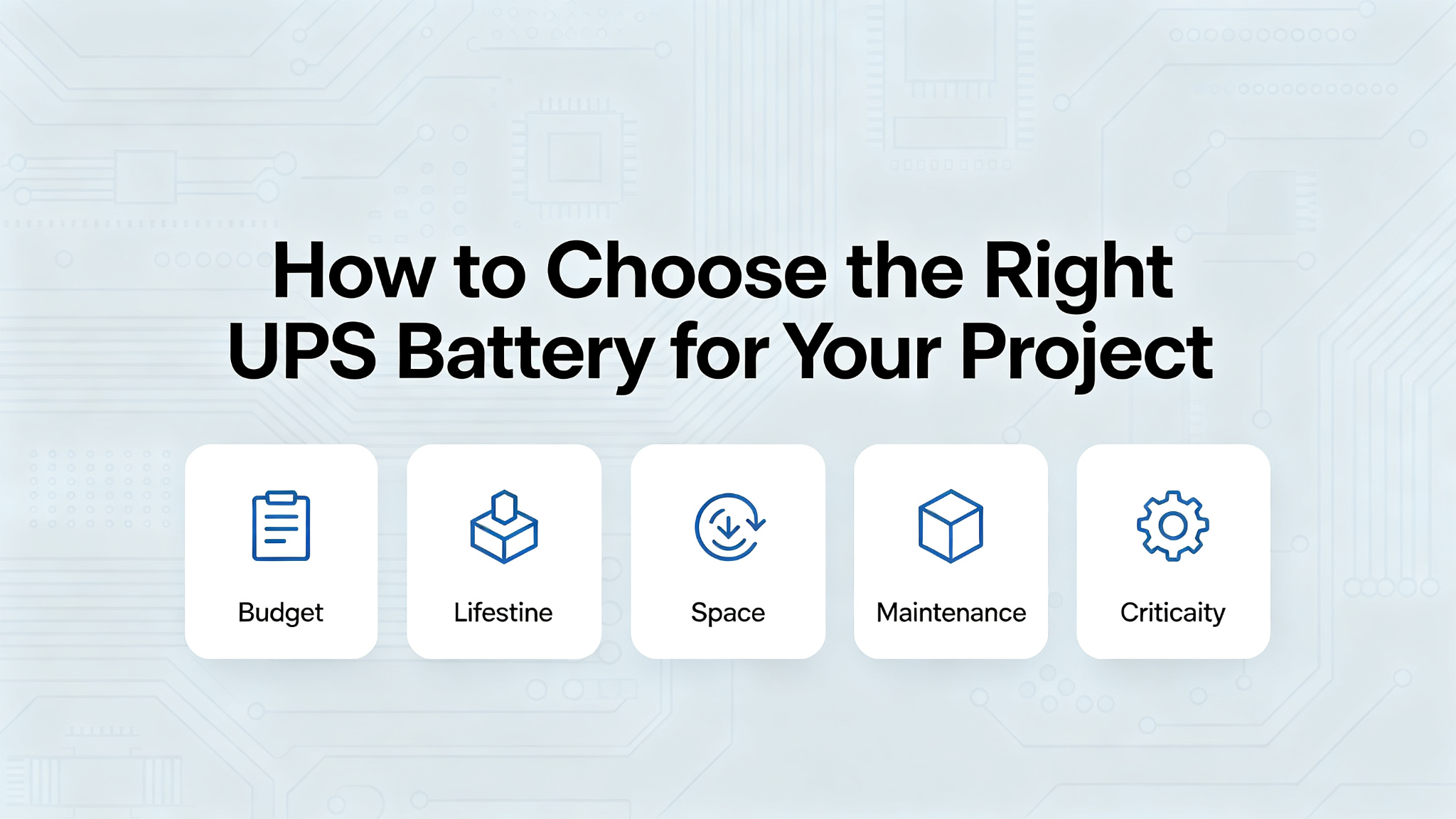

How to Choose the Right UPS Battery for Your Project

1. Start with the Load and Runtime Requirement

Before choosing battery chemistry, define:

Load power in watts or kVA
Required backup time
Critical equipment type
Whether all loads need backup or only essential loads
Future expansion requirements

Battery chemistry cannot compensate for incorrect UPS sizing. Runtime calculations should be based on actual load and usable battery energy.

2. Compare Initial Budget and Lifecycle Cost

If the project must minimize initial purchase cost, lead-acid batteries may be the practical choice.

If the project is expected to run for many years, lithium-ion batteries may reduce replacement frequency, maintenance labor, downtime risk, and space cost. In that case, total cost of ownership should be compared over the expected operating life.

3. Check Installation Space and Weight

Evaluate:

Rack space
Battery cabinet size
Floor loading
Transport route
Cooling and ventilation
Service access

If space is limited, lithium-ion batteries may provide a strong advantage.

4. Review Maintenance Resources

Lead-acid battery systems can be effective when qualified maintenance staff are available and replacement cycles are planned.

Lithium-ion systems may be more suitable when maintenance access is limited, sites are remote, or many UPS installations need centralized monitoring.

5. Confirm UPS Compatibility

Before selecting lithium-ion batteries for an existing UPS, confirm:

Battery voltage range
Charger voltage and current
Communication interface
BMS compatibility
Firmware requirements
Alarm and monitoring functions
Warranty conditions
Safety certification requirements

Compatibility is especially important when retrofitting a lithium-ion battery system into a UPS originally designed for lead-acid batteries.

6. Consider Operating Temperature

High temperature can shorten battery life. Buyers should confirm:

Room temperature range
Ventilation or cooling availability
Battery operating temperature limits
Derating requirements
Monitoring and alarm settings

Temperature control is important for both lead-acid and lithium-ion batteries.

RFQ Checklist: What to Provide Before Asking for a UPS Battery Quote

To receive a more accurate UPS battery recommendation, prepare the following information before requesting a quote:

UPS capacity in kVA or kW
Connected load in watts
Required backup runtime
Input and output voltage
Battery voltage requirement
Existing UPS model, if replacing batteries
Preferred battery type, if known
Installation environment and temperature
Available rack, cabinet, or floor space
Whether the site experiences frequent outages
Monitoring or network communication requirements
Certification or documentation requirements
Quantity and delivery location
Maintenance expectations
Future expansion needs

Providing these details helps the supplier compare lithium-ion and lead-acid UPS battery configurations based on the real project conditions.

Conclusion

Lithium-ion and lead-acid UPS batteries both have valid roles in backup power systems.

Lead-acid batteries remain practical for lower initial budgets, legacy UPS systems, and applications with occasional backup requirements. Lithium-ion batteries are often better suited for long-life, high-reliability, compact, remote, or frequently cycled UPS installations.

For commercial and industrial projects, the best decision is not simply “lithium-ion or lead-acid.” The better question is:

Which battery chemistry delivers the required runtime, reliability, compatibility, maintenance level, and lifecycle cost for this specific UPS project?

ShanPu provides UPS systems and battery-related power protection solutions for commercial and industrial applications. For project-specific selection, share your load, runtime, installation space, battery preference, and operating environment with ShanPu.

CTA: Contact ShanPu to discuss your UPS battery configuration.

FAQ

Which UPS battery lasts longer — lithium-ion or lead acid?

Lithium-ion UPS batteries typically last 8 to 15 years, while lead acid VRLA batteries generally last 3 to 5 years. Under comparable operating conditions, lithium-ion batteries deliver 2 to 3 times the service life of lead acid.

Can lithium batteries replace lead acid UPS batteries?

In most cases, yes. Many modern UPS systems support both battery chemistries with configurable charge profiles. However, battery compatibility should always be verified with the UPS manufacturer before switching. ShanPu UPS systems support both configurations.

Are lithium UPS batteries safe for data centers?

Yes. Modern LiFePO₄ batteries include advanced BMS with thermal protection, overcharge prevention, and cell balancing. They meet international safety standards including UL 1973 and IEC 62619, and are widely deployed in data centers globally.

Why are lithium UPS batteries more expensive upfront?

Lithium batteries use advanced cell technology and integrated BMS electronics. However, when you factor in fewer replacements, lower maintenance, better efficiency, and longer lifespan, the total cost of ownership over 10–15 years is typically 30–50% lower than lead acid.

Which UPS battery is best for data centers?

Lithium-ion batteries are increasingly the standard for data centers due to their longer service life, compact footprint, faster recharge, lower maintenance, and superior performance under frequent power disturbances.

What is the total cost of ownership difference?

While lithium-ion batteries cost 2–3x more upfront, their TCO over 15 years is typically 30–50% lower. The breakeven point usually occurs within 4–6 years of installation.

How to Calculate UPS Capacity: kVA vs kW Explained

how to evaluate vendor support and spare parts for ups systems? | Insights by ShanPu

Recommended for you

How to Calculate UPS Capacity: kVA vs kW Explained

Lead-Acid battery vs Lithium-lon battery - ShanPu

Lithium Ion vs Lead Acid UPS Battery: Complete Comparison Guide for 2026

Online UPS vs Line Interactive UPS: Complete Comparison Guide for Commercial Applications

What is UPS? How Uninterruptible Power Supply Systems Work, Types, Applications, and Selection Guide

Product Categories
