| Factor |
Industrial UPS |
Commercial UPS |
| Design Standard |
IEC 62040-3 (Industrial) |
IEC 62040-1/2 (IT/Commercial) |
| Operating Temperature |
0°C to 40°C (some models: -20°C to 50°C) |
0°C to 30°C |
| Humidity Tolerance |
Up to 95% RH (non-condensing) |
Up to 90% RH |
| Dust Protection |
IP20 to IP54 |
IP20 typical |
| Expected Lifespan |
15-20 years |
8-12 years |
While traditional UPS systems are commonly used for offices and IT equipment, industrial UPS systems are built for more challenging applications where downtime can lead to:
- production losses (average $10,000-$500,000 per incident depending on industry)
- equipment damage (sensitive electronics, drives, motors)
- safety risks (emergency systems, fire protection)
- operational interruptions (batch processes, continuous manufacturing)
Industrial UPS systems are commonly used in:
- manufacturing plants
- automation facilities
- power plants and substations
- oil and gas facilities
- transportation systems (railway, airports)
- process industries (chemical, pharmaceutical)
- telecommunications infrastructure

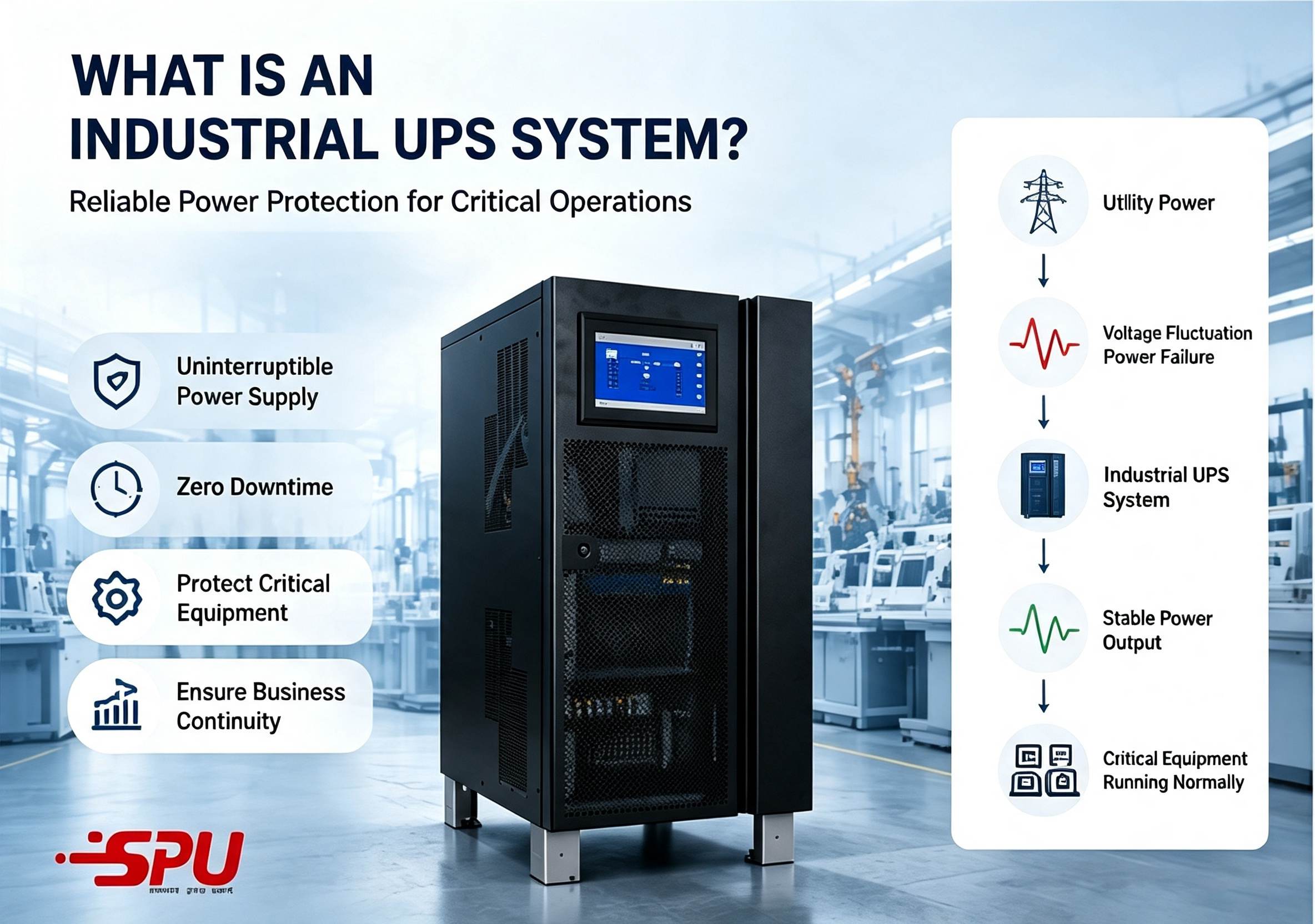

The main purpose of an industrial UPS is not only to provide backup power but also to ensure continuous and high-quality electricity for critical industrial processes.
The working principle of an industrial UPS follows the double-conversion (online) topology, compliant with IEC 62040-3 performance standards.
A typical industrial UPS includes:
- rectifier — converts AC input to DC
- inverter — converts DC back to clean AC output
- battery system — stores energy for backup (VRLA or Li-ion)
- static bypass — automatic transfer for maintenance or overload
- monitoring and control system — SNMP/Modbus communication
When utility power is available:
- The UPS receives incoming AC power (typically 380/400/415V, 50/60Hz)
- The rectifier converts AC power into DC power (efficiency: 94-96%)
- The battery system remains in float charge mode
- The inverter provides stable, clean AC output to connected equipment
- Output THD (Total Harmonic Distortion): <3% (vs. utility grid: 5-15% typical)
Key advantage: The load is always powered by the inverter, providing continuous protection from all power problems.
When the main power supply fails:
- The rectifier stops operating
- The battery immediately supplies DC power (transfer time: 0ms for online UPS)
- The inverter converts DC power into AC power
- Connected industrial equipment continues operating without interruption
- Typical backup time: 5-30 minutes (extendable with external battery cabinets)
This prevents sudden shutdowns and protects sensitive industrial processes.
If the UPS detects overload or internal fault:
- The static bypass switch transfers load to utility power
- Transfer time: <4ms (compliant with ITIC/CBEMA curve)
- Critical equipment continues operating
- Alarm is triggered for maintenance team

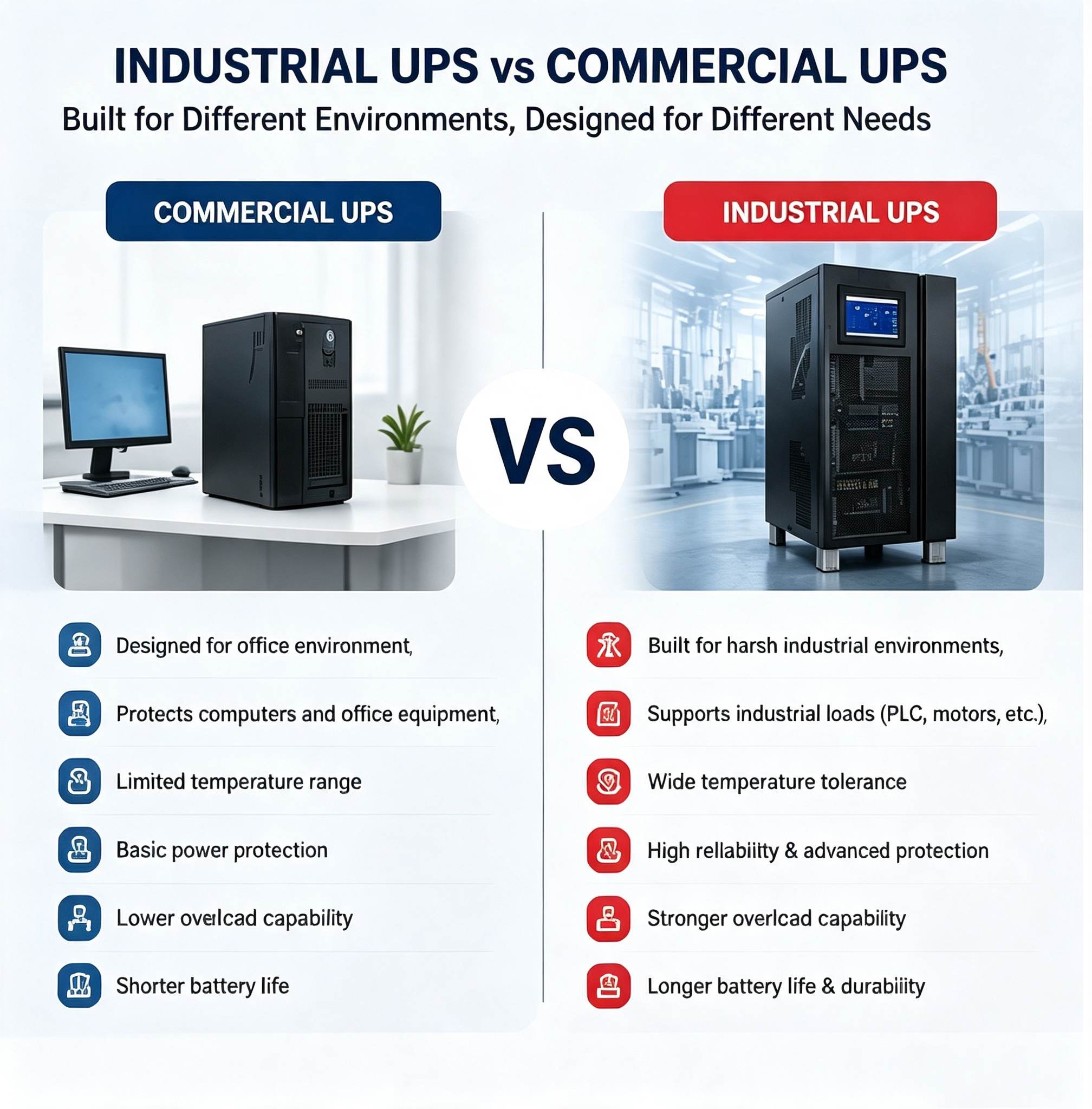

Industrial UPS systems are designed differently from commercial UPS systems. Understanding these differences is critical for proper selection.
| Feature |
Industrial UPS |
Commercial UPS |
| Application |
Factories, plants, automation, harsh environments |
Offices, data centers, IT equipment |
| Design Standard |
IEC 62040-3 (VFI-11111 or higher) |
IEC 62040-1/2 |
| Environment |
Harsh: dust, vibration, temperature extremes |
Controlled: clean, climate-controlled |
| Load Type |
Industrial: motors, drives, PLC, inductive loads |
IT: servers, computers, networking |
| Reliability Requirement |
99.99%+ uptime (critical processes) |
99.9% uptime (acceptable downtime) |
| Overload Capability |
125% for 10 min, 150% for 1 min |
110% for 1 hour typical |
| Input Power Factor |
>0.99 (with PFC) |
0.8-0.95 typical |
| Protection Level |
IP20 to IP54, conformal coating optional |
IP20 standard |
| Design Life |
15-20 years |
8-12 years |
| Certification |
CE, UL, CSA, IEC, ISO 9001 |
CE, UL typical |
Why this matters:
Industrial applications often require stronger protection because:
- Electrical conditions can be unpredictable (harmonic distortion, voltage sags)
- Equipment startup currents can be 6-8x rated current
- Ambient conditions include dust, vibration, temperature extremes
- Downtime costs are significantly higher ($260,000/hour vs. $5,000/hour for IT)
Industry insight: Selecting a commercial UPS for industrial applications is the #1 mistake we see. These units typically fail within 3-5 years in industrial environments due to inadequate protection and component stress.

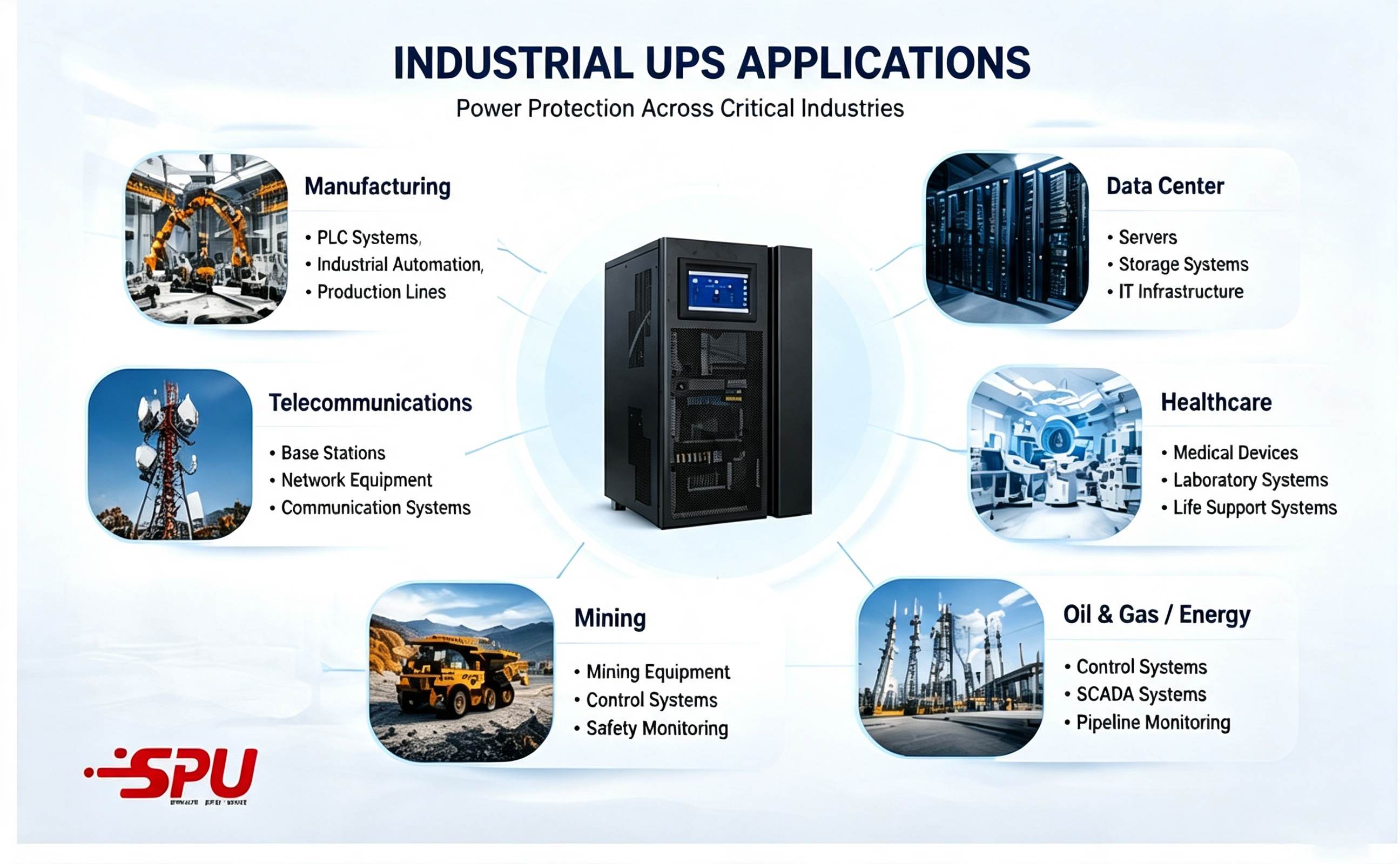

Industrial UPS systems support many industries where continuous operation is critical.
Manufacturing facilities rely on automation systems, production lines, and control equipment.
Power failure impact:
- Production downtime: $10,000-$500,000 per hour (varies by industry)
- Material waste: batch processes may need complete restart
- Machine restarting: 2-8 hours typical for complex production lines
- Process instability: quality defects, rework costs
Industrial UPS systems protect:
- production controllers (PLC, PAC)
- industrial computers (IPC, HMI)
- automation systems (DCS, SCADA)
- monitoring equipment (sensors, analyzers)
- servo drives and motion control
Typical configuration: 10-500 kVA, 10-30 minutes backup, online double-conversion
PLC systems are essential for modern factories. A typical production line may have 10-50 PLCs controlling thousands of I/O points.
A sudden power loss can result in:
- loss of control signals → machine stops, product defect
- production interruption → batch loss, restart time
- incorrect machine operation → safety risk, equipment damage
- data loss → production records, quality data
UPS systems provide stable power for:
- PLC controllers (Siemens, Allen-Bradley, Mitsubishi)
- SCADA systems ( Wonderware, WinCC, iFIX)
- industrial communication networks (Profinet, EtherNet/IP, Modbus TCP)
- control panels and operator interfaces
Recommended backup time: 15-30 minutes (enough for controlled shutdown or generator startup)
Oil and gas operations require extremely reliable power protection. UPS systems are used for:
- monitoring systems (DCS, SCADA)
- safety controls (SIS, ESD)
- emergency shutdown systems
- communication equipment (radio, telephone)
- fire and gas detection systems
Industry standard: API RP 500/505 for hazardous area classification
Power reliability is critical because unexpected shutdowns may create:
- safety hazards (gas leaks, fires)
- environmental incidents (spills, emissions)
- equipment damage ($millions in repairs)
- regulatory fines ($10,000-$100,000+ per incident)
Typical configuration: 30-200 kVA, 30-60 minutes backup, with redundant systems (N+1 or 2N)
Energy facilities require continuous operation of monitoring and control systems.
Industrial UPS applications include:
- protection systems (relays, circuit breakers)
- control systems (turbine control, boiler control)
- instrumentation (flow, pressure, temperature)
- communication networks (SCADA, telecontrol)
- emergency lighting and safety systems
Critical requirement: 99.999% ("five nines") availability for grid-connected power plants
Typical configuration: 100-500 kVA, 1-2 hours backup, with generator integration
Industrial UPS systems are commonly used in:
- railway systems (signaling, communication, ticketing)
- airports (baggage handling, ATC, lighting)
- traffic control systems (signals, monitoring)
- signaling equipment (train control, level crossings)
- metro and subway systems
Reliable power ensures: safe and continuous operation, passenger safety, on-time performance
Typical configuration: 10-100 kVA, 30-60 minutes backup, ruggedized for vibration
The biggest advantage of an industrial UPS is reducing downtime.
Power interruptions can stop production lines and create significant financial losses.
Industry data:
- Average cost of power failure in manufacturing: $260,000 per hour (Schneider Electric)
- 65% of near-data-loss events are power-related (Ponemon Institute)
- Facilities with UPS experience 85% fewer equipment damage incidents
A UPS provides immediate backup power (0ms transfer time) to keep critical systems running or allow controlled shutdown.
ROI calculation:
| Factor |
Value |
| UPS system cost |
$50,000 - $200,000 |
| Average downtime prevented per year |
2-5 incidents |
| Average cost per incident |
$50,000 - $500,000 |
| Typical ROI period |
6-18 months |
Industrial equipment can be affected by:
- voltage fluctuations (±10% typical, ±20% during faults)
- electrical noise (EMI/RFI from motors, drives)
- surges (lightning, switching: up to 6000V)
- frequency instability (±2% typical, ±5% during faults)
Industrial UPS systems provide:
- voltage regulation: ±1% output (vs. ±10% utility)
- frequency regulation: ±0.5% output
- surge protection: 6000V per IEEE C62.41
- harmonic filtering: THD <3% output
Result: Equipment lifespan extended by 25-40%, maintenance costs reduced by 30%
Industrial environments often experience:
- voltage dips (sags): 10-30 per month typical
- harmonic distortion: 8-15% THD (from drives, rectifiers)
- unstable power supply (frequency variations)
Online UPS systems use double conversion technology to provide stable output power:
| Power Parameter |
Utility Grid |
After UPS |
| Voltage |
±10% |
±1% |
| Frequency |
±2% |
±0.5% |
| THD (Harmonics) |
5-15% |
<3% |
| Transients |
Present |
Eliminated |
Modern factories depend heavily on automation.
UPS protection helps maintain:
- PLC operation (critical: 0ms interruption tolerance)
- communication systems (network continuity)
- monitoring systems (data logging, alarms)
- industrial control processes (recipe management, batch tracking)
Industry trend: Industry 4.0 and smart manufacturing require even higher power quality standards. Connected devices, IoT sensors, and cloud-based systems are more sensitive to power disturbances than legacy equipment.
Unexpected power events may damage sensitive components:
- servo drives: $5,000-$50,000 per unit
- PLC modules: $1,000-$10,000 per unit
- industrial computers: $2,000-$20,000 per unit
- variable frequency drives: $3,000-$30,000 per unit
Industrial UPS systems help:
- extend equipment life by 25-40%
- reduce repair costs by 30-50%
- lower insurance premiums (some insurers offer discounts)
- maintain warranty coverage (many manufacturers void warranty if power issues are detected)

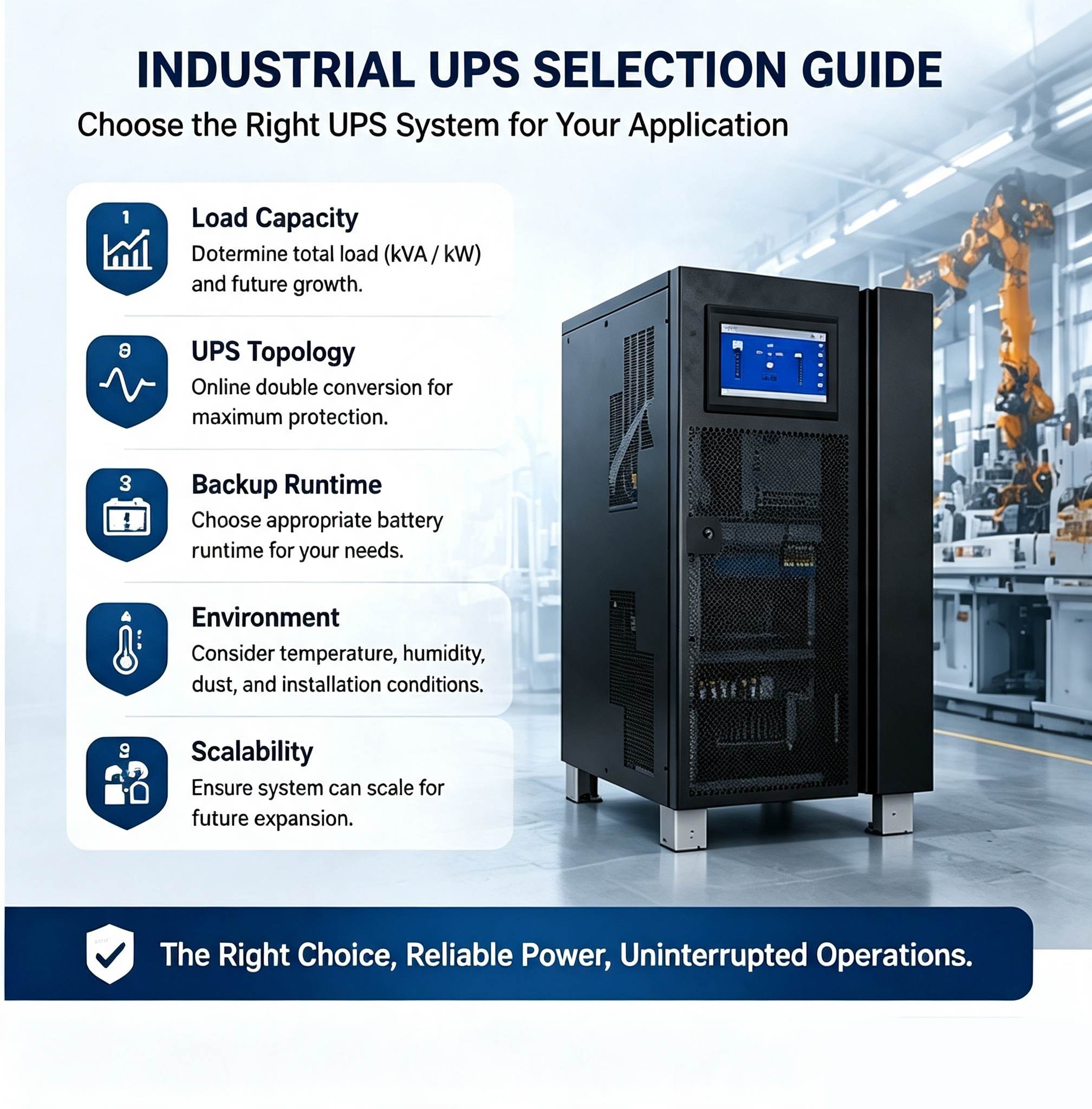

Selecting an industrial UPS requires evaluating several factors.
The first step is calculating the connected load.
Important parameters:
- total power consumption (kW)
- kVA rating
- power factor (typically 0.8-0.95 for industrial loads)
- future expansion (add 20-30% headroom)
The basic formula:
Example calculation:
| Parameter |
Value |
| Connected load |
80 kW |
| Power factor |
0.9 |
| Safety factor |
1.25 |
| Required UPS capacity |
80 ÷ 0.9 × 1.25 = 111 kVA → select 120 kVA UPS |
Industrial loads are different from IT loads.
Consider:
- startup current (motors: 6-8x rated current for 2-10 seconds)
- motor loads (inductive, power factor varies)
- nonlinear loads (drives, rectifiers: harmonic generation)
- sensitive control equipment (0ms interruption tolerance)
Load classification:
| Load Type |
Examples |
UPS Requirement |
| Linear (resistive) |
Heaters, lighting |
Standard |
| Inductive |
Motors, transformers |
High surge capability |
| Nonlinear |
Drives, SMPS |
Harmonic compensation |
| Critical (0ms) |
PLC, control systems |
Online double-conversion |
Equipment such as motors and machines may require higher overload capability. Rule of thumb: select UPS with 125% overload capacity for 10 minutes minimum.
For industrial applications, common choices include:
Suitable for:
- automation systems (PLC, SCADA)
- control equipment (DCS, safety systems)
- critical processes (continuous manufacturing)
- sensitive electronics (test equipment, medical)
Advantages:
- zero transfer time (0ms)
- stable voltage output (±1%)
- stable frequency output (±0.5%)
- complete power conditioning (surge, sag, harmonic filtering)
Typical range: 1-800 kVA
Suitable for:
- heavy industrial loads (large motors, welders)
- harsh environments (high temperature, dust)
- high-impact applications (mining, oil & gas)
Advantages:
- stronger overload capability (150% for 1 minute)
- better surge resistance (transformer isolation)
- longer component life (lower switching frequency)
- higher reliability in extreme conditions
Typical range: 10-1000 kVA
Industry insight: For 80% of industrial applications, online double-conversion UPS is the correct choice. Low frequency UPS is reserved for specific heavy-industrial scenarios with extreme environmental conditions or very large motor loads.
Industrial UPS battery selection depends on:
- required backup time (5 minutes to 2+ hours)
- operating environment (temperature, space)
- maintenance requirements (accessibility, replacement cost)
- total cost of ownership (initial cost + replacement + disposal)
Common battery options:
| Battery Type |
Lifespan |
Temperature Range |
Maintenance |
Cost |
| VRLA (Valve Regulated Lead Acid) |
3-5 years |
20-25°C optimal |
Low |
$ |
| Flooded Lead Acid |
10-15 years |
15-30°C |
High (watering) |
$$ |
| Lithium-ion (LiFePO4) |
10-15 years |
0-40°C |
None |
$$$$ |
For battery selection:
Trend: Lithium-ion batteries are rapidly gaining market share in industrial UPS applications due to longer lifespan (10-15 years vs. 3-5 years), smaller footprint (50% less space), and lower total cost of ownership despite higher initial investment.
Industrial environments may include:
- high temperature (up to 50°C in some facilities)
- dust (conductive or non-conductive)
- vibration (near heavy machinery)
- humidity (up to 95% RH in some processes)
- corrosive atmospheres (chemical plants, coastal areas)
Before selecting a UPS, consider:
- installation location (indoor/outdoor, control room vs. production floor)
- cooling requirements (air conditioning, ventilation)
- protection level (IP rating: IP20 for clean rooms, IP54 for harsh environments)
- maintenance accessibility (front access vs. all-around access)
Recommendation: For harsh environments, specify UPS with:
- conformal coating on PCBs (protection against dust, humidity)
- higher IP rating (IP31 to IP54)
- wider operating temperature range (0-40°C or -20-50°C)
- optional filters for dust protection
Use this checklist to ensure proper UPS selection:
| Consideration |
Questions |
Recommended Action |
| Load capacity |
How much power does the equipment require? |
Calculate total kW, add 25% headroom |
| Equipment type |
IT load or industrial load? |
Industrial load → industrial UPS |
| Runtime |
How long should backup power last? |
10-30 min typical, longer if no generator |
| Environment |
Is the location harsh or controlled? |
Harsh → IP54, conformal coating |
| Expansion |
Will power requirements increase? |
Add 20-30% capacity for future growth |
| Reliability |
Is redundancy required? |
Critical → N+1 or 2N configuration |
| Maintenance |
How easy is servicing? |
Front access, hot-swappable batteries |
| Communication |
What monitoring is needed? |
SNMP, Modbus, dry contacts |
| Certifications |
What standards apply? |
CE, UL, IEC 62040-3 |
The problem: A large UPS does not always mean a suitable UPS.
Reality: The system must match:
- load characteristics (motor loads need surge capability)
- environment (temperature, dust, humidity)
- reliability requirements (critical vs. non-critical)
Example: A 100 kVA UPS in a dusty, high-temperature environment will fail faster than a 60 kVA UPS with proper environmental protection.
The problem: Industrial machines may require higher power during startup.
Impact: Failing to consider this can cause:
- overload alarms (UPS switches to bypass)
- unexpected shutdowns (if UPS cannot handle surge)
- reduced UPS lifespan (continuous stress)
Rule: Motor loads require UPS with minimum 125% overload capacity for 10 minutes, or 150% for 1 minute.
The problem: Office UPS systems may not provide:
- sufficient overload capability (110% vs. 125% needed)
- environmental protection (IP20 vs. IP54 needed)
- industrial reliability (8-year life vs. 15-year needed)
- proper certifications (IEC 62040-1 vs. IEC 62040-3)
Result: Premature failure, voided warranty, safety risks.
The problem: Industrial facilities often expand.
Impact: Selecting UPS capacity without future growth in mind leads to:
- expensive replacements (new UPS every 3-5 years)
- production downtime during UPS upgrade
- inability to add new equipment
Recommendation: Always specify 20-30% additional capacity for future expansion.
The problem: Batteries are the #1 cause of UPS failures.
Reality: 40-50% of UPS failures are battery-related.
Solution:
- Choose maintenance-free batteries (VRLA or Li-ion)
- Implement battery monitoring system
- Plan for battery replacement every 3-5 years (VRLA) or 10-15 years (Li-ion)
-
Industrial UPS systems play an essential role in protecting modern industrial operations from power interruptions and electrical disturbances.
Unlike standard commercial UPS systems, industrial UPS solutions are designed for demanding environments where reliability, durability, and continuous operation are critical. The cost of a properly specified industrial UPS is typically recovered within 6-18 months through prevented downtime, reduced equipment damage, and lower maintenance costs.
When selecting an industrial UPS, businesses should consider:
- equipment power requirements (calculate total load + 25% headroom)
- UPS capacity and type (online double-conversion for most applications)
- load characteristics (motor loads need surge capability)
- battery technology (VRLA for cost-effective, Li-ion for long-term value)
- operating environment (IP rating, temperature range)
- future expansion needs (add 20-30% capacity)
A properly selected industrial UPS system can help factories and industrial facilities:
- Reduce downtime by 99.9% (0ms transfer time)
- Extend equipment life by 25-40% (stable power quality)
- Reduce maintenance costs by 30-50% (protection from power events)
- Achieve ROI in 6-18 months (prevented losses vs. UPS investment)
About Shanpu Power
Shanpu Power is a manufacturer of commercial power solutions with 16 years of industry experience. We specialize in UPS systems, voltage regulators, and power protection solutions for industrial applications. With manufacturing capability of over 100,000 units per year, we serve customers across 60+ countries.
Facebook
YouTube
SHANPU UPS
