Dual 60kVA Industrial UPS for Data Center: 2-Hour Backup Partition Power Solution

• · Production Control Server Area: 43kW industrial control load
• · Administrative Data Storage Area: 39kW data storage load

Local Power Supply Challenges

1. · Aging power lines on factory premises
2. · Rainy season overvoltage from thunderstorms causing instantaneous spikes
3. · Quarterly grid maintenance by power department: 2-3 planned outages per quarter, each lasting up to 120 minutes
4. · Three-phase imbalance and harmonic interference from intensive start-stop cycles of large stamping equipment, central air conditioning, and injection molding machines
5.

6. Customer's Technical Requirements



   · The enterprise specified clear renovation criteria:

   1. · Deploy 3-in, 3-out industrial UPS systems, with two 60kVA units providing partitioned power supply (no redundant parallel operation)
   2. · Maintain full-load backup time of no less than 2 hours during power failures
   3. · Reserve load margin for future server expansion while passing local industrial safety inspection

   4. ---

7. 2. Pain Points in Original Power Supply Architecture



   The data center originally relied on multiple small single-phase UPS units for distributed power supply. This fragmented architecture created three critical operational risks:

   1. Direct Operational Failure Risks



   Single-phase UPS systems have limited load capacity, triggering long-term overload alarms during peak business hours. Servers automatically restarted 2-4 times monthly. Built-in batteries in aging equipment supported less than 10 minutes of backup power, insufficient for extended outages.

   2. Quantifiable Economic Losses



   Voltage fluctuations accelerated aging of server hard drives and motherboards, driving high annual hardware maintenance and replacement costs. Each sudden power outage resulted in incomplete production data, requiring technical personnel to invest significant time in manual data recovery and repair.

   3. Hidden Layout & Compliance Defects



   • · Three-phase imbalance: Distributed single-phase power supply created extremely unbalanced three-phase consumption, excessive line loss, and serious heat generation
   • · Non-compliance: The power supply architecture failed to meet industrial data room construction standards and could not pass annual electrical safety audits
   • · Inconsistent management: Without unified battery configuration, each equipment's standby time varied, complicating maintenance coordination

   • ---



   The Solution: Why Industrial-Grade UPS

   Scheme 1: Single 120kVA Three-Phase UPS



   Although total capacity met requirements, all equipment would share one power host. A single UPS failure would cause complete data center power loss—risk concentration was unacceptable.



   Scheme 2: Two 60 kVA UPS with Small-Capacity Battery Bank



   Host power matched zonal loads, but battery capacity was inadequate. Standby time would reach only 40 minutes, failing the 2-hour emergency requirement.

   Final Technical Conclusion: Two independent 60kVA three-phase industrial UPS units with partitioned distribution, matched with 128 lead-acid batteries for centralized energy storage, optimally disperse load pressure while delivering stable 2-hour full-load backup—aligned with the customer's zonal layout requirements.

   ---

   4.

   5. Customized Partition Power Supply Solution



   Based on machine room zonal layout, total load calculations, and local grid conditions, the technical team designed a partitioned independent power supply scheme without redundant parallel capabilities. All configurations directly address the original operational pain points.

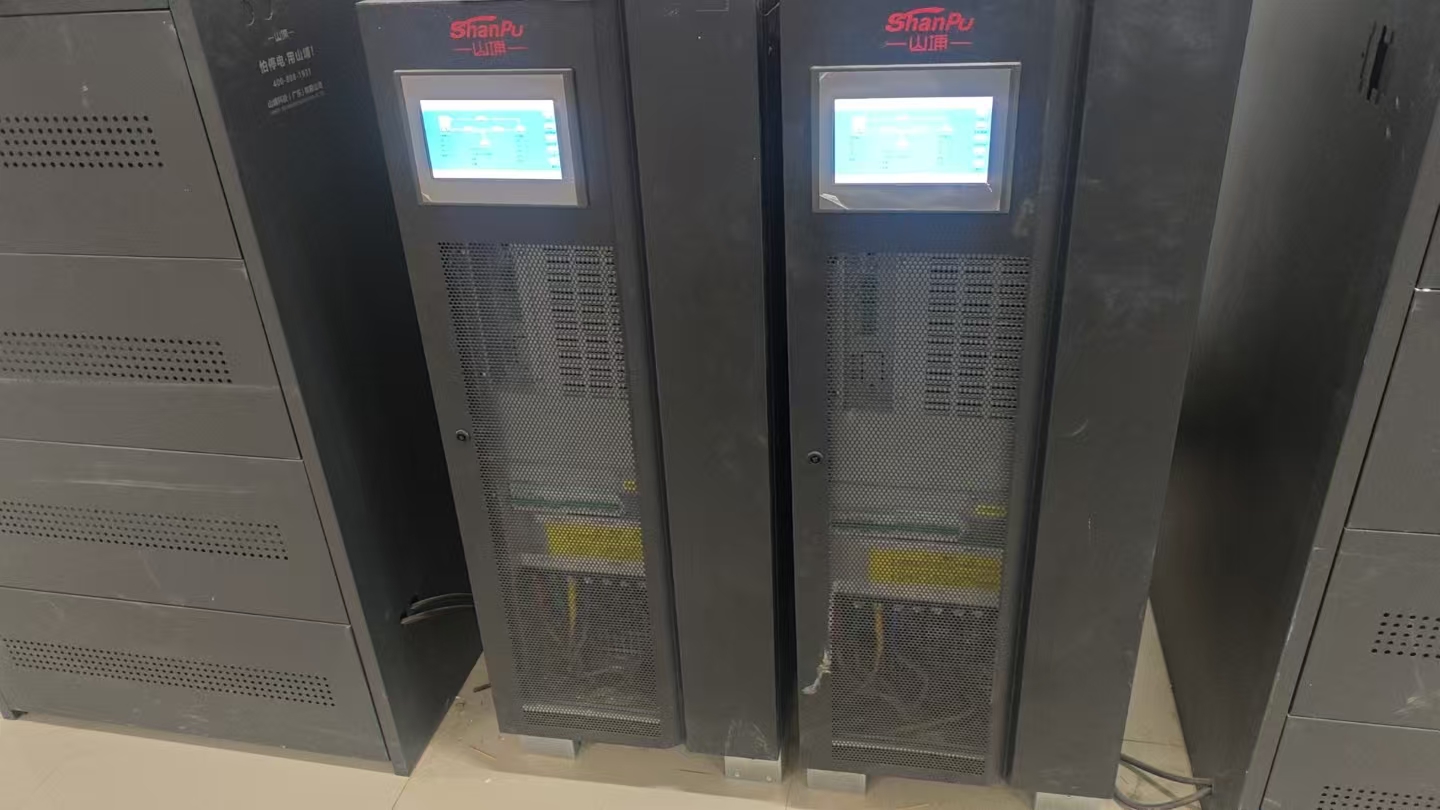

   1. Core Host Configuration: Two Independent 60 kVA Three-Phase Industrial UPS



   The system deploys two separate 60kVA online double-conversion industrial UPS units with no parallel redundant connection:

   • · UPS 1: Production control server area, bearing 43kW industrial control load
   • · UPS 2: Administrative storage server area, bearing 39kW data storage load



   Each unit features:

   • · Industrial isolation transformer with automatic three-phase balance adjustment
   • · Surge protection and EMI harmonic filtering
   • · Voltage stabilization accuracy of ±1%
   • · 30%+ load margin per unit for future server expansion



   The two UPS units operate independently without mutual backup. Each bears only its zonal load. If one unit fails, only the corresponding partition is affected—dispersing overall power failure risk compared to a single large-capacity UPS.

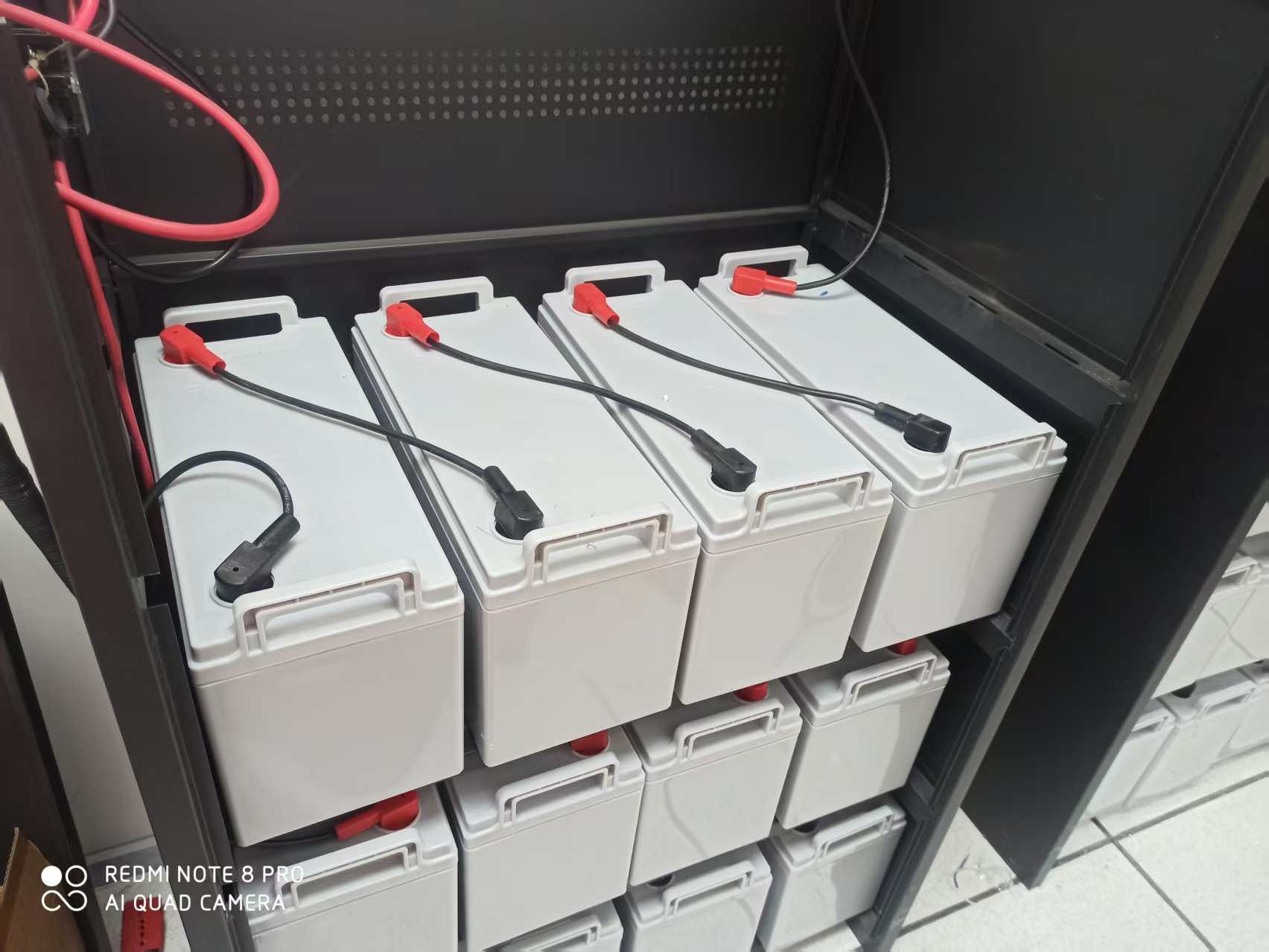

   2. Energy Storage Configuration: 128-Unit Lead-Acid Battery Bank for 2-Hour Standby



   Based on combined full-load power consumption across both zones, the system incorporates 128 units of 12V maintenance-free lead-acid batteries housed in an independent fireproof, temperature-controlled battery cabinet. The battery bank supplies power uniformly to both UPS hosts.



   Performance validation: After multiple full-load discharge tests, with all servers in both zones operating at full capacity, pure battery continuous power supply time reached 2 hours and 15 minutes—exceeding the regional maximum planned outage duration.



   The integrated BMS (Battery Management System) provides automatic charge/discharge protection to extend battery service life.

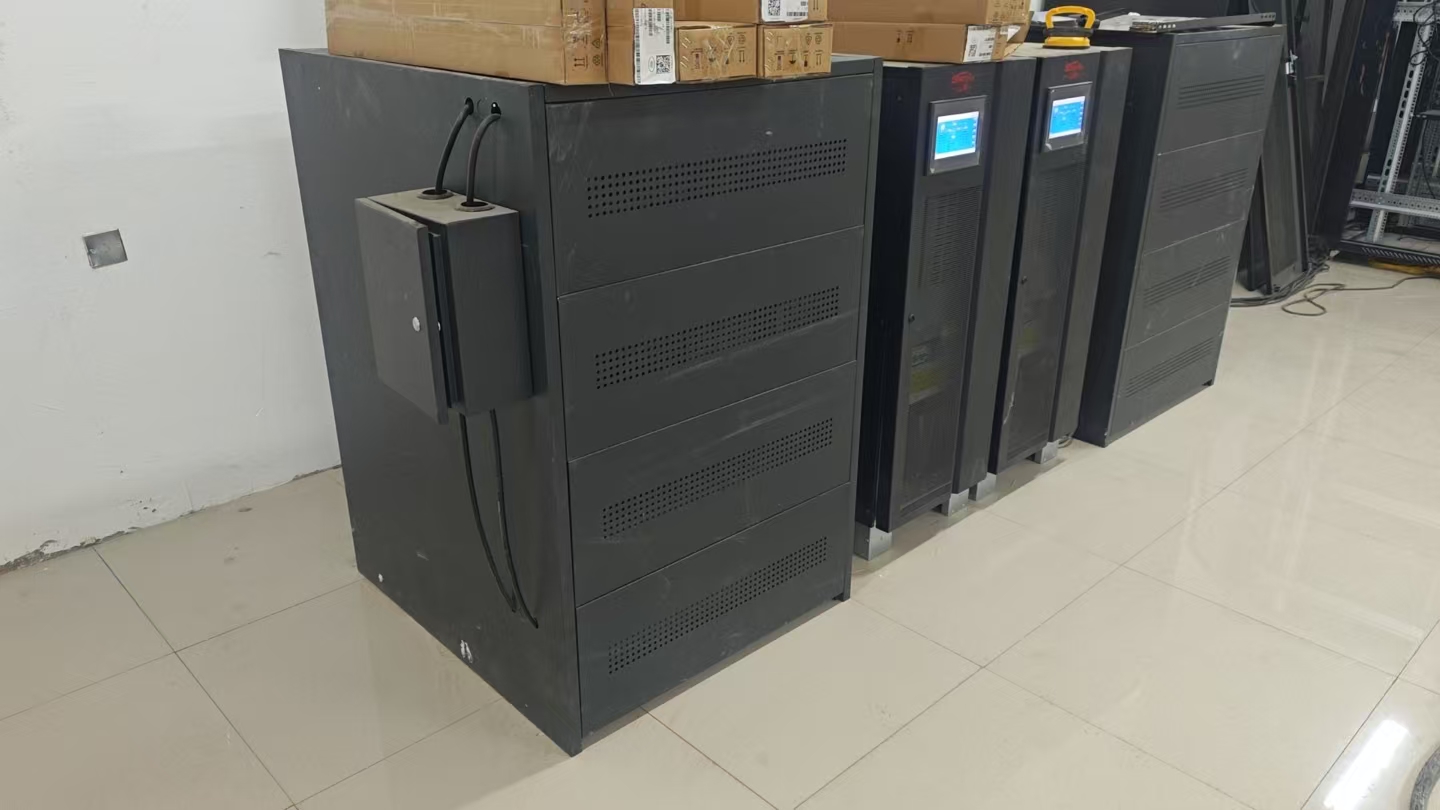

   3. Installation & Operational Optimization



   • · Independent three-phase wiring for each UPS distributes current evenly across phases, preventing single-phase overload tripping
   • A unified cloud monitoring platform allows engineers to separately track operating parameters for both UPS units and remaining battery capacity, with automatic alarms for power failure, battery anomalies, or equipment faults
   • · Independent maintenance bypass cabinet for each UPS ensures that when one unit requires overhaul, only its own zone's load shuts down while the other partition continues operating without interruption
   • · Industrial dust-proof and wide-temperature design adapts to standard machine room environments (10℃-45℃), reducing daily manual maintenance frequency

   • ---

   • 5.

     6. Operational Results: Before vs. After Comparison



     The complete power supply system has been operational for 4 months post-commissioning. All performance indicators meet the enterprise's renovation requirements with measurable improvements:

     1. Load Distribution & Equipment Stability



     Before renovation:



     Scattered single-phase UPS units triggered frequent overload alarms; servers restarted multiple times monthly.

     After renovation:



     Two 60 kVA industrial UPS units provide a partitioned power supply with balanced three-phase current. Zero overload alarms recorded. All servers operate 7×24 hours without abnormal shutdowns. Grid interference is completely filtered.



     2. Emergency Backup Time Compliance



     Before renovation:



     The maximum emergency power supply lasted less than 10 minutes.



     After renovation:



     The unified 128-battery bank ensures a 2-hour stable power supply under full load. Technical personnel have sufficient time to complete data backup and orderly shutdown during power failures.



     3. Operational Cost Reduction & Compliance



     • · Hardware maintenance cost reduced by 43% due to decreased damage frequency to servers and storage equipment
     • · Regulatory compliance achieved: Standardized three-phase partitioned power supply architecture passed local industrial electrical safety audit
     • · IT team efficiency improved: Unified intelligent monitoring reduced daily inspection workload by 50%

     • ---

     • 6. Project Summary



       For medium-sized enterprise data centers with partitioned business layouts and no redundant backup requirements, a single large-capacity UPS centralizes risk excessively, while scattered small UPS units fail to deliver adequate standby time.

       The recommended architecture—two independent 60kVA three-phase industrial UPS units with partitioned power supply, supported by 128 external lead-acid batteries for unified energy storage—effectively disperses load pressure, delivers a 2-hour full-load emergency power supply, and reserves expansion capacity for future growth.
