How to Calculate UPS Capacity: kVA vs kW Explained

Fri, 07/31/2026

Hugo Zhong

Choosing the correct UPS capacity prevents overload shutdowns, extends battery life, and eliminates wasted capital. This guide provides the exact formulas, step-by-step calculations, and application-specific sizing tables used by power engineers.

ShanPu is a UPS manufacturer with 16+ years of experience, with a manufacturing capacity of over 100,000 units annually, serving data centers, industrial facilities, and commercial buildings worldwide.

Send My Request

Get a Free Quote

Table of Contents

≡

What Is UPS Capacity?
kVA vs kW: The Critical Difference
UPS Capacity Calculation Formula
Worked Example
Step-by-Step UPS Sizing Method
Step 1: List All Protected Equipment
Step 2: Convert kW to kVA
Step 3: Apply Safety Margin
Step 4: Select Standard UPS Size
Step 5: Plan for Future Growth
UPS Sizing by Application
Detailed Application Examples
Example 1: Server Room (18 kW Load)
Example 2: Data Center (100 kW Load)
Example 3: Industrial Facility (11 kW Load)
How to Calculate UPS Battery Runtime
Example: 1,000W Load, 30-Minute Runtime, 48V Battery
Runtime Reference by Application
6 Common UPS Sizing Mistakes
Mistake 1: Selecting by kVA Alone
Mistake 2: No Expansion Margin
Mistake 3: Ignoring Inrush Current
Mistake 4: Wrong UPS Topology
Mistake 5: Ignoring Harmonic Distortion
Mistake 6: Forgetting Redundancy Multiplier
UPS Sizing Checklist
Conclusion
FAQ

What Is UPS Capacity?

UPS capacity is the maximum electrical load a UPS can continuously support, expressed in both kVA (apparent power) and kW (real power). Both values must be checked together — kVA alone does not tell you usable output.

A UPS that is too small overloads and crashes. A UPS that is too large wastes money and operates inefficiently. Proper capacity calculation ensures the system matches your actual load — today and over the next 5–10 years.

Per IEC 62040-1, UPS manufacturers must rate capacity under defined environmental conditions (25°C ambient, linear load). Always verify ratings match your installation environment.

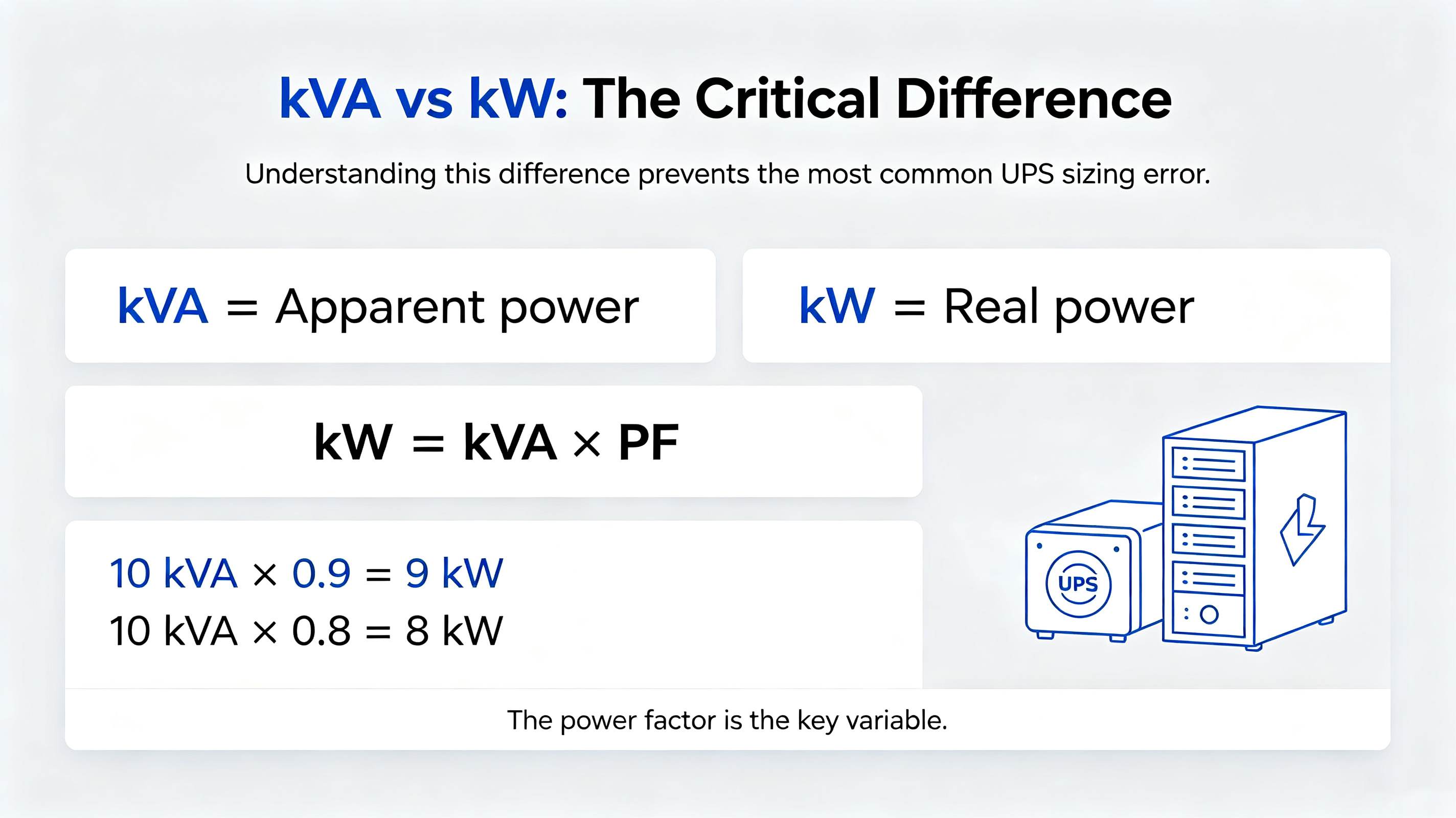

KW calculation method

kVA vs kW: The Critical Difference

Understanding this difference prevents the most common UPS sizing error.

kVA (kilovolt-amperes) = Apparent power. The total capacity the UPS supplies, including real and reactive power.

kW (kilowatts) = Real power. The actual usable energy consumed by your equipment.

Power Factor (PF) = The ratio: kW = kVA × PF

The power factor is the key variable. A 10 kVA UPS with PF 0.9 delivers 9 kW. The same 10 kVA unit with PF 0.8 delivers only 8 kW — a 12.5% difference in usable power from the same kVA rating.

Always compare three numbers together: kVA, kW, and power factor.

UPS Rating	Typical Application
1–3 kVA	Office workstations, single computers
3–10 kVA	Small server rooms, network closets
10–40 kVA	Medium server rooms, edge data centers
40–200 kVA	Enterprise data centers, industrial control
200 kVA+	Large manufacturing, hyperscale facilities

UPS Capacity Calculation Formula

The core sizing formula:

UPS Capacity (kVA) = Total Load (kW) ÷ UPS Power Factor

Then add a safety margin:

Required Capacity = Calculated kVA × 1.2 to 1.3

Worked Example

A server room draws 8 kW total. Selected UPS power factor = 0.9:

Step 1: 8 kW ÷ 0.9 = 8.89 kVA (minimum)
Step 2: 8.89 × 1.25 (25% margin) = 11.1 kVA
Selection: 12 kVA Online UPS

The 20–30% margin accounts for future equipment additions, component aging, and prevents continuous maximum-load operation — which accelerates battery degradation

per IEEE 446 guidelines.

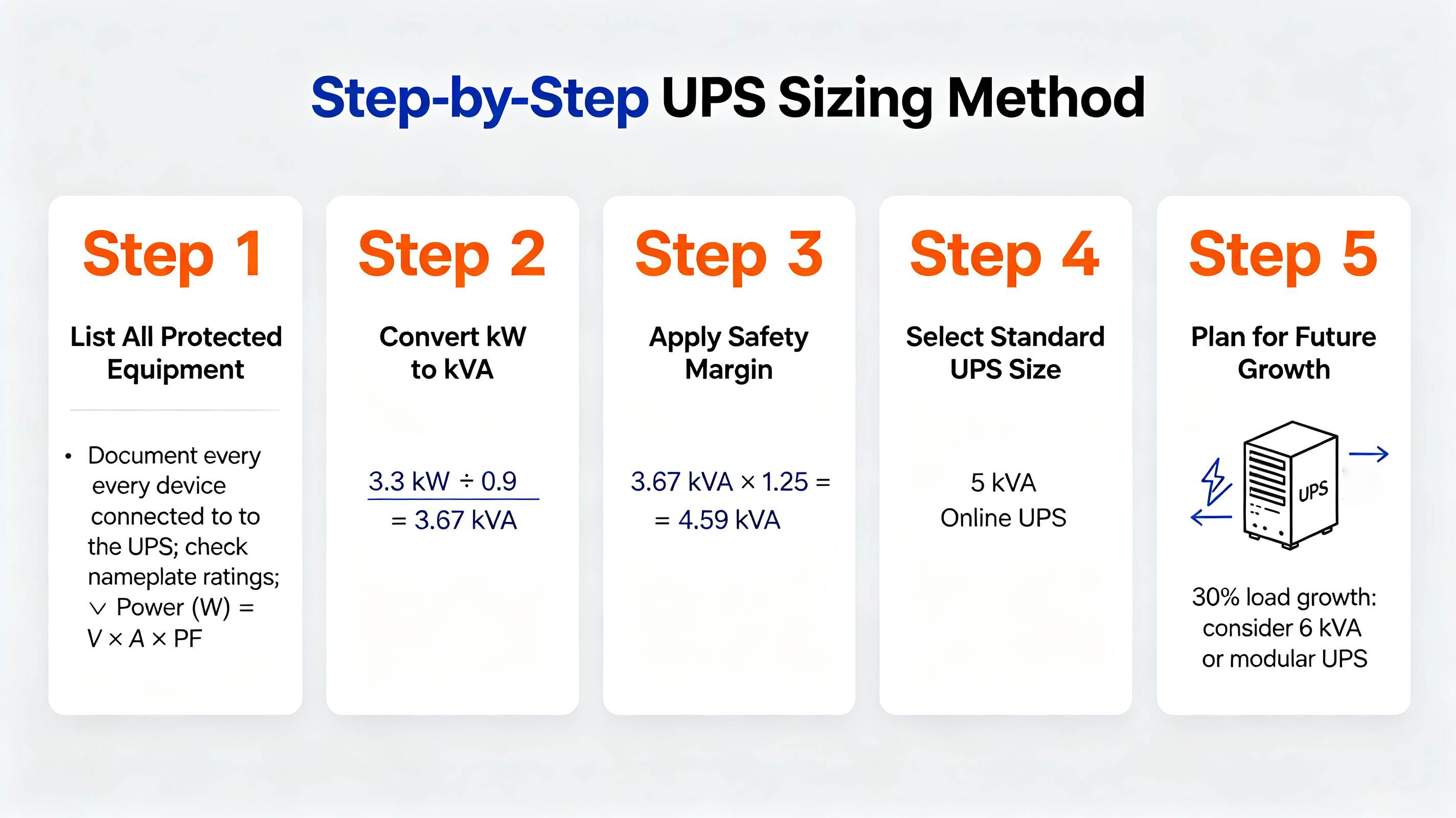

UPS selection steps

Step-by-Step UPS Sizing Method

Step 1: List All Protected Equipment

Document every device connected to the UPS: servers, storage, network gear, security systems, industrial controllers, monitoring equipment.

Example server room inventory:

Equipment	Power Draw
Server A	800W
Server B	800W
Storage System	1200W
Network Switches	500W
Total	3,300W (3.3 kW)

Check nameplate ratings. For equipment listing voltage and current: Power (W) = V × A × PF.

Step 2: Convert kW to kVA

Using PF = 0.9:

3.3 kW ÷ 0.9 = 3.67 kVA

Step 3: Apply Safety Margin

3.67 kVA × 1.25 = 4.59 kVA

Step 4: Select Standard UPS Size

Round up to nearest standard capacity: 5 kVA Online UPS

Step 5: Plan for Future Growth

If you expect 30% load growth over 5 years, a 6 kVA or modular UPS provides better long-term value than replacing a 5 kVA unit in two years.

Manufacturer's note: Modular UPS architectures allow capacity scaling by adding power modules — typically more cost-effective than oversized initial installations that run inefficiently at low load.

UPS Sizing by Application

Application Typical Capacity Recommended Type Key Consideration

Single workstation 600 VA – 1.5 kVA Standby / Line Interactive Basic surge protection

5–10 office PCs 2–3 kVA Line Interactive 10–15 min runtime

Small server room 5–10 kVA Online Double Conversion Zero transfer time

Medium server room 10–30 kVA Online UPS (rack/tower) N+1 redundancy

Data center (50+ devices) 40 kVA+ Modular Online UPS 2N for Tier III+

Telecom base station 3–20 kVA Outdoor Online UPS Wide input voltage

PLC / Industrial control 10–30 kVA Industrial Online UPS High inrush tolerance

Production line 50–200 kVA Industrial Online UPS 3–6× startup margin

Medical imaging (CT/MRI) 30–100 kVA Medical-grade Online UPS Isolation transformer

Detailed Application Examples

Example 1: Server Room (18 kW Load)

Equipment Power

Servers 12 kW

Storage Arrays 3 kW

Network Equipment 2 kW

Security & Monitoring 1 kW

Total 18 kW

Calculation (PF = 0.9, 25% margin):

18 ÷ 0.9 = 20 kVA

20 × 1.25 = 25 kVA

→ 25–30 kVA Online Double Conversion UPS

For critical server rooms, specify online double conversion (per IEC 62040-3 Class 1) to eliminate all power anomalies.

Example 2: Data Center (100 kW Load)

Data centers require redundant architecture. A 100 kW IT load with 2N redundancy:

100 kW ÷ 1.0 PF = 100 kVA per string

2N design: 2 × 100 kVA (each handles full load independently)

With 30% growth: 2 × 130 kVA

→ Modular UPS system (2 × 150 kVA frame, initially loaded with 100 kVA modules)

Example 3: Industrial Facility (11 kW Load)

Equipment Load

PLC Controllers 5 kW

Control Panels 3 kW

Industrial Computers 2 kW

Communication Systems 1 kW

Total 11 kW

Calculation (PF = 0.9, 30% industrial margin):

11 ÷ 0.9 = 12.2 kVA

12.2 × 1.3 = 15.8 kVA

→ 20 kVA Industrial Online UPS

For motor loads, add 50% inrush margin on top of standard safety factor. Verify against manufacturer overload curve.

How to Calculate UPS Battery Runtime

UPS capacity (kVA/kW) = how much load. Battery capacity = how long it runs. These are independent.

Battery runtime formula:

Required Ah = (Load Watts × Required Hours) ÷ (Battery Voltage × 0.85)

Example: 1,000W Load, 30-Minute Runtime, 48V Battery

(1,000 × 0.5) ÷ (48 × 0.85) = 12.25 Ah → Select minimum 15 Ah battery pack.

Runtime Reference by Application

Application Typical Runtime Notes

Office computers 5–15 min Safe shutdown

Server rooms 15–60 min Bridge to generator

Telecom / Remote 1–8 hours Often with solar/generator

Industrial critical 30 min – 2 hours Prevent batch loss

External battery cabinets extend runtime. Verify UPS charger is sized for total battery capacity.

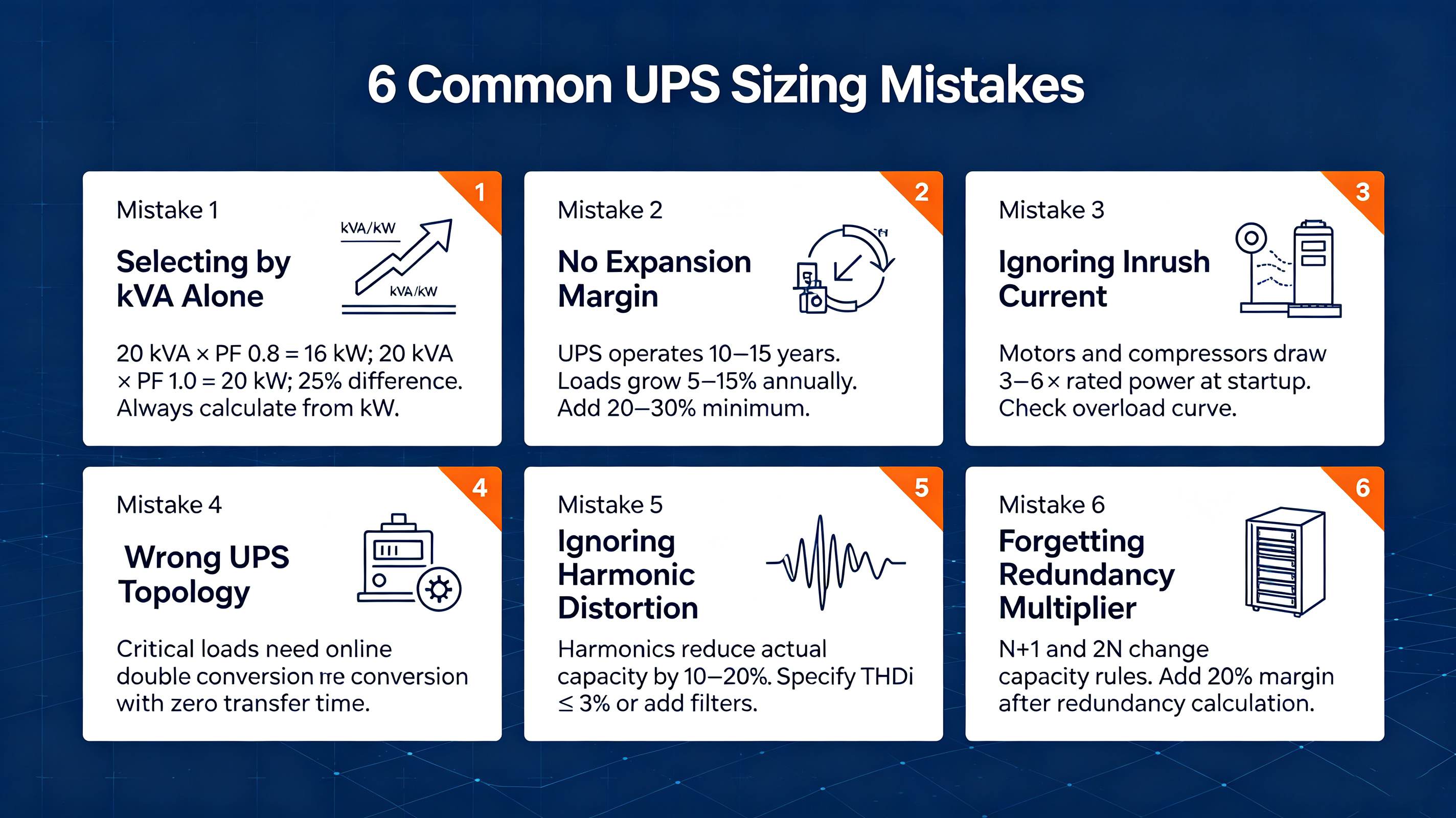

6 Common UPS Sizing Mistakes

Mistake 1: Selecting by kVA Alone

20 kVA × PF 0.8 = 16 kW. Same 20 kVA × PF 1.0 = 20 kW. That's 25% difference. Always calculate from kW.

Mistake 2: No Expansion Margin

UPS operates 10–15 years. Loads grow 5–15% annually. No margin = replacement in 2–3 years. Add 20–30% minimum.

Mistake 3: Ignoring Inrush Current

Motors and compressors draw 3–6× rated power at startup. A 5 kW motor may need 25 kVA headroom. Check overload curve.

Mistake 4: Wrong UPS Topology

Line interactive suits office PCs, not data centers or industrial control. Critical loads need online double conversion with zero transfer time.

Mistake 5: Ignoring Harmonic Distortion

Switch-mode power supplies generate harmonics that reduce actual capacity by 10–20%. Specify THDi ≤ 3% or add harmonic filters.

Mistake 6: Forgetting Redundancy Multiplier

N+1 = full load with one unit offline. 2N = total capacity is 2× load. Add 20% margin per unit AFTER redundancy calculation, not before.

UPS Sizing Checklist

Check Item Purpose

✅ Total equipment power calculated? Determines minimum load

✅ UPS power factor verified? Converts kW to kVA

✅ 20–30% margin included? Covers growth and aging

✅ Inrush current considered? Prevents nuisance tripping

✅ Battery runtime defined? Determines battery capacity

✅ Redundancy level specified? N, N+1, or 2N

✅ Harmonic distortion assessed? Prevents capacity derating

✅ UPS topology matched? Online vs line interactive

✅ Environmental conditions checked? Temperature, altitude

✅ Future expansion planned? Modular vs fixed

Conclusion

Proper UPS sizing follows a clear process: calculate total load (kW) → convert to kVA via power factor → add safety margin → account for inrush and redundancy → select topology.

The most common errors — ignoring power factor, skipping expansion margin, wrong topology — all have straightforward solutions using the formulas and checklists above.

A correctly sized UPS prevents downtime, protects equipment, and avoids wasted capital. When in doubt, consult your UPS manufacturer with your equipment list and runtime requirements.

→ Contact ShanPu's power engineering team for free UPS sizing consultation

Application	Typical Capacity	Recommended Type	Key Consideration
Single workstation	600 VA – 1.5 kVA	Standby / Line Interactive	Basic surge protection
5–10 office PCs	2–3 kVA	Line Interactive	10–15 min runtime
Small server room	5–10 kVA	Online Double Conversion	Zero transfer time
Medium server room	10–30 kVA	Online UPS (rack/tower)	N+1 redundancy
Data center (50+ devices)	40 kVA+	Modular Online UPS	2N for Tier III+
Telecom base station	3–20 kVA	Outdoor Online UPS	Wide input voltage
PLC / Industrial control	10–30 kVA	Industrial Online UPS	High inrush tolerance
Production line	50–200 kVA	Industrial Online UPS	3–6× startup margin
Medical imaging (CT/MRI)	30–100 kVA	Medical-grade Online UPS	Isolation transformer

Equipment	Power
Servers	12 kW
Storage Arrays	3 kW
Network Equipment	2 kW
Security & Monitoring	1 kW
Total	18 kW

Equipment	Load
PLC Controllers	5 kW
Control Panels	3 kW
Industrial Computers	2 kW
Communication Systems	1 kW
Total	11 kW

Application	Typical Runtime	Notes
Office computers	5–15 min	Safe shutdown
Server rooms	15–60 min	Bridge to generator
Telecom / Remote	1–8 hours	Often with solar/generator
Industrial critical	30 min – 2 hours	Prevent batch loss

Check Item	Purpose
✅ Total equipment power calculated?	Determines minimum load
✅ UPS power factor verified?	Converts kW to kVA
✅ 20–30% margin included?	Covers growth and aging
✅ Inrush current considered?	Prevents nuisance tripping
✅ Battery runtime defined?	Determines battery capacity
✅ Redundancy level specified?	N, N+1, or 2N
✅ Harmonic distortion assessed?	Prevents capacity derating
✅ UPS topology matched?	Online vs line interactive
✅ Environmental conditions checked?	Temperature, altitude
✅ Future expansion planned?	Modular vs fixed

FAQ

What size UPS do I need for my server room?

Calculate total equipment wattage, convert to kVA (÷ power factor, typically 0.9), add 20–30% margin. Example: 10-server room at 8 kW → 8 ÷ 0.9 = 8.9 kVA → × 1.25 = 11.1 kVA → select 12 kVA online double conversion UPS.

Is a bigger UPS always better?

No. Oversized UPS runs at low efficiency, wastes battery cost and floor space. Ideal sizing = current load + 20–30% headroom, rounded to the next standard size.

What's the difference between kVA and kW?

kVA = apparent power (total capacity). kW = real power (usable output). Related by: kW = kVA × PF. A 10 kVA UPS at PF 0.9 delivers 9 kW. Always check all three values.

How much capacity margin should I leave?

20–30% for commercial use. 30–50% for industrial with motors or planned expansion. For redundant systems, calculate redundancy first, then add 20% per unit.

Does higher UPS capacity mean longer backup time?

No. Backup time depends on battery Ah and load — not UPS power rating. A 10 kVA UPS with extended batteries outlasts a 20 kVA with standard batteries. Size UPS for load; size batteries for runtime.

Can I add battery packs later?

Most online UPS support external battery cabinets post-installation. But the charger must handle additional capacity. Plan target runtime upfront so charger specs match.

How do I size UPS for industrial motors?

Calculate running load, then add 50–100% inrush margin. A 5 kW motor may need 15–25 kVA during startup. Check manufacturer overload curve.
