Hospital UPS Systems: Complete Buyer's Guide for OR, ICU & Medical Imaging

Introduction: Why Hospital UPS Selection Matters

A power failure in a hospital is not an inconvenience. It is a life safety event.

According to the American Hospital Association (AHA), hospital IT downtime costs average $10,000-$15,000 per hour due to lost patient documentation, cancelled procedures, and operational disruption. But the true cost is measured in patient safety — not dollars.

A loss of power to a ventilator in the ICU, a surgical light in the operating room, or an imaging console in the diagnostic suite creates immediate clinical consequences. These are not theoretical risks. They are the primary reason why hospital UPS procurement has become a non-negotiable component of medical facility infrastructure.

This guide explains how procurement managers, facilities engineers, and clinical leadership select the right uninterruptible power supply for hospitals — with the technical rigor, regulatory compliance, and life safety focus that modern healthcare demands.

---

Hospital UPS 101: What You Need to Know

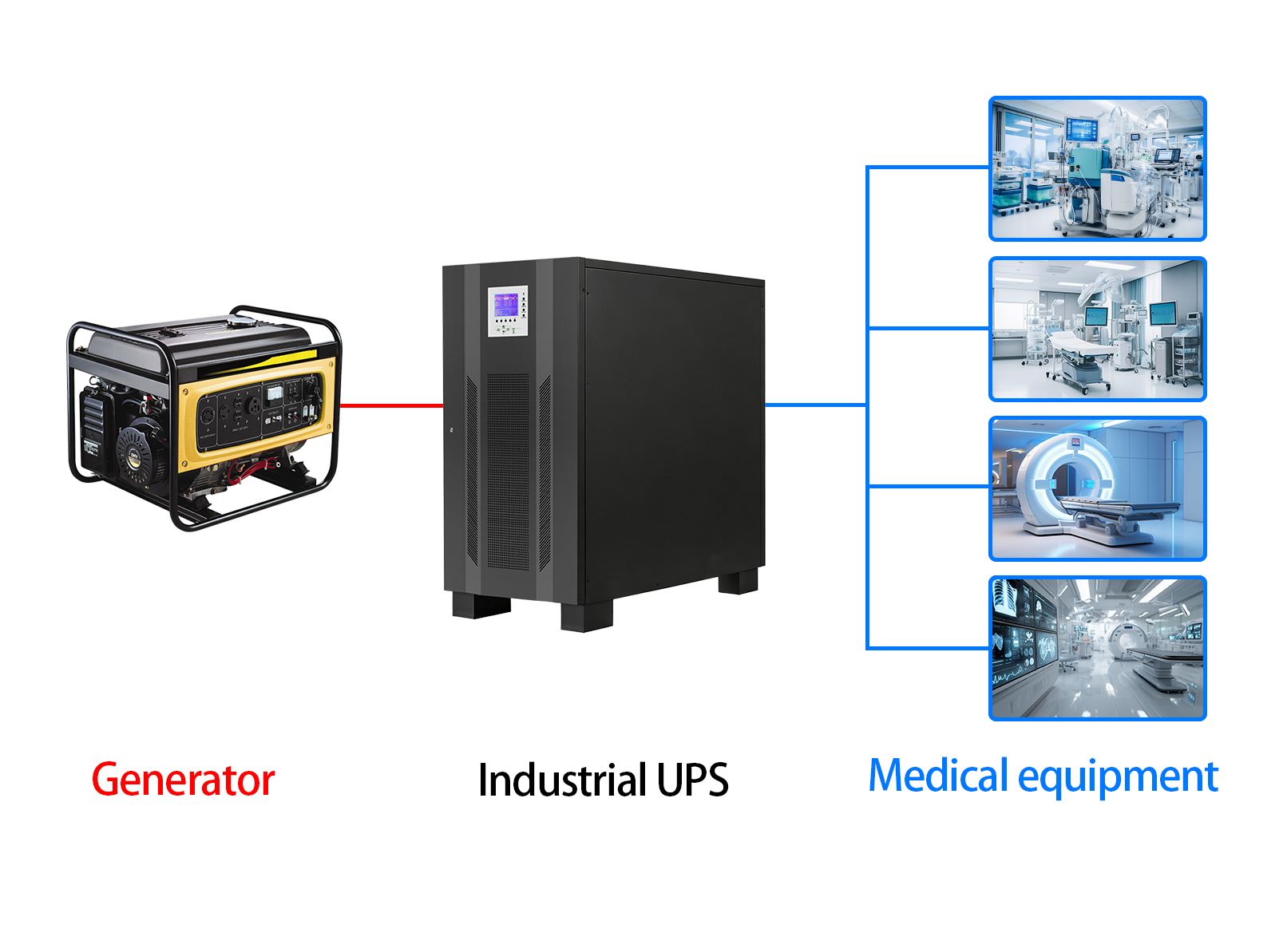

Hospital UPS vs Generator: Why You Need Both

This is one of the most frequently misunderstood aspects of hospital power infrastructure.

UPS (Uninterruptible Power Supply)

• · Response time: 0 milliseconds (instantaneous)
• · Runtime: 15 minutes to 4+ hours (depending on system and battery capacity)
• · Function: Bridges the critical gap between utility power loss and generator startup
• · Cost: $15,000-$100,000+ (depending on capacity)

Generator (Backup Power)

• · Response time: 10-30 seconds (automatic start delay)
• · Runtime: Hours to days (as long as fuel supply)
• · Function: Provides sustained power for extended outages
• · Cost: $50,000-$500,000+ (depending on capacity)

Why both are required: During the first 10-30 seconds of a power outage, the generator is starting up. Life-critical equipment cannot wait. Ventilators, patient monitors, and defibrillators need power in the first millisecond. Only a UPS provides this. The generator then sustains power while the UPS batteries recharge.

Per NFPA 99 (Standard for Health Care Facilities Code), hospitals must have automatic switching between utility power, UPS backup, and generator backup with zero transfer time for critical circuits.

Why Online Double-Conversion UPS is Non-Negotiable

Not all UPS topologies are created equal. For hospitals, only one topology is acceptable.

Standby UPS (Not acceptable for hospitals)

• · Transfer time: 4-20 milliseconds
• · Status: Equipment monitors utility power, switches to battery only when power fails
• · Risk: Even brief transfer delay causes patient monitor glitches, ventilator alarms, or diagnostic errors
• · Hospital use: Only for non-critical loads (hallway lighting, office equipment)

Line-Interactive UPS (Rarely acceptable)

• · Transfer time: 2-10 milliseconds
• · Status: Partial conditioning; switches to battery during voltage fluctuations
• · Risk: Still too slow for ICU and OR equipment
• · Hospital use: Limited to emergency lighting and non-critical systems

Online Double-Conversion UPS (Hospital standard)

• · Transfer time: 0 milliseconds (zero switching)
• · Status: Continuously powered by battery; simultaneously charged by utility power
• · Design: Equipment always runs through the battery-inverter circuit, never directly from utility
• · Benefit: Equipment experiences zero interruption even during instantaneous power loss
• · Cost: 20-30% higher than standby UPS, but non-negotiable for critical care

According to the ECRI Institute, a leading independent authority on medical device safety: "Standby and line-interactive UPS systems are not suitable for critical care environments due to transfer time limitations that exceed patient safety thresholds established by equipment manufacturers and regulatory bodies."

Online double-conversion topology is the standard for all hospitals accredited by The Joint Commission, CMS, or state health departments.

Hospital UPS Standards & Compliance Requirements

Hospital UPS procurement is heavily regulated. Understanding these standards is essential for bidding compliance and patient safety.

NFPA 99: Standard for Health Care Facilities Code

• · Developed by the National Fire Protection Association
• · Requires all critical circuits to have UPS with automatic switching and zero transfer time
• · Mandates N+1 redundancy (backup capacity) for life-safety loads
• · Specifies battery testing intervals and maintenance protocols
• · Most state health departments adopt NFPA 99 as legal minimum

IEC 60601-1: Medical Device Safety Standard

• · International standard for electrical equipment used in medical settings
• · Establishes power quality thresholds that medical equipment manufacturers design to
• · Requires pure sine wave output (not PWM modulation)
• · Sets harmonic distortion limits that protect sensitive imaging and monitoring equipment
• · Cited in hospital procurement RFPs globally

IEC 62040: UPS Power Systems Standard

• · International standard for UPS equipment itself
• · Defines efficiency, power factor, overload capability
• · Sets battery aging and replacement protocols
• · Required for CE marking (European hospitals) and compliance in most developed markets

UL 1778: UPS Product Safety Standard

• · U.S. standard for UPS safety and performance
• · Establishes battery containment, thermal limits, and fault protection
• · Required for hospital equipment sold in North America
• · Often specified in U.S. hospital procurement documents

Hospital procurement officers increasingly require suppliers to certify compliance with all four standards. Shanpu UPS systems meet NFPA 99, IEC 60601-1, IEC 62040, and UL 1778 requirements.

---

Department-by-Department UPS Requirements

Hospitals are not monolithic from a power perspective. Different clinical departments have radically different UPS needs. A single undersized system can leave critical areas unprotected.

Table 1: Hospital Department UPS Requirements

Why the differences?

• · Life-critical equipment (ICU, OR) requires 0ms transfer time
• · Non-critical systems can tolerate <4 ms switching delay
• · Runtime varies: procedures need 30-60 minutes; IT systems need hours to allow generator startup and recovery

---

Hospital UPS Architecture: How It All Works Together

The following diagram shows a typical hospital critical power architecture:

Utility Power Input (120 kV from grid)
        ↓
[Step-down Transformer] (13.8 kV → 480 V)
        ↓
        ├─→ [ATS: Automatic Transfer Switch]
        │         ↓
        │   [Online Double-Conversion UPS]
        │    (0ms switching, zero transfer time)
        │         ↓
        │   [Hospital Battery Backup]
        │    (30 min - 4 hours runtime)
        │         ↓
    [Critical Loads Distribution]
        │    ├─ Operating Rooms
        │    ├─ ICU / CCU
        │    ├─ Emergency Department
        │    ├─ Imaging Department
        │    └─ IT Infrastructure
        │
        └─→ [Automatic Generator Transfer Switch]
                   ↓
            [Diesel Generator]
           (10-30 sec startup)
                   ↓
            [Extended Runtime]
           (hours to days)

How power flows during an outage:

1. 1. Second 0 (Utility fails): UPS detects voltage loss and switches critical circuits to battery. Zero interruption.
2. 2. Seconds 1-10: Battery sustains all critical equipment while staff executes emergency protocols.
3. 3. Seconds 10-30: Automatic generator start sequence initiates.
4. 4. Second 30+: Generator comes online, accepts load from UPS. The battery begins recharging.
5. 5. Next outage recovery: UPS batteries fully charged, ready for the next event.

---

Key Technical Parameters for Hospital UPS Selection

1. Transfer Time: 0 milliseconds (Critical)

Life-support equipment cannot tolerate even momentary power interruption. Ventilator backup batteries, cardiac monitors, and defibrillators are all designed with zero-tolerance thresholds. Only online (double-conversion) UPS achieves true zero transfer time.

2. UPS Topology: Online Double-Conversion (Mandatory)

Standby or line-interactive UPSs have 4-20ms transfer times. This violates NFPA 99 and IEC 60601-1 requirements for critical circuits. Online topology means the UPS continuously powers critical equipment through an inverter circuit, never relying on switching speed.

3. Output Waveform: Pure Sine Wave (Mandatory)

Surgical lights, electrosurgical units, anesthesia workstations, and imaging equipment require true sine wave output. PWM (pulse-width modulation) output can cause:

• · False alarms on patient monitors
• · Electrosurgical unit malfunction or "return pad error" failures
• · Diagnostic imaging artifacts or equipment restart loops
• · Infusion pump accuracy drift (older models)

4. Battery Runtime:

• · Operating Rooms: 45-60 minutes (allows safe conclusion of procedures or patient transfer)
• · ICU/Critical Care: 30-45 minutes (enables safe patient repositioning and transport)
• · Emergency Department: 30-45 minutes (supports resuscitation protocols)
• · IT Infrastructure: 4-8 hours minimum (allows full generator startup, testing, and system stabilization)

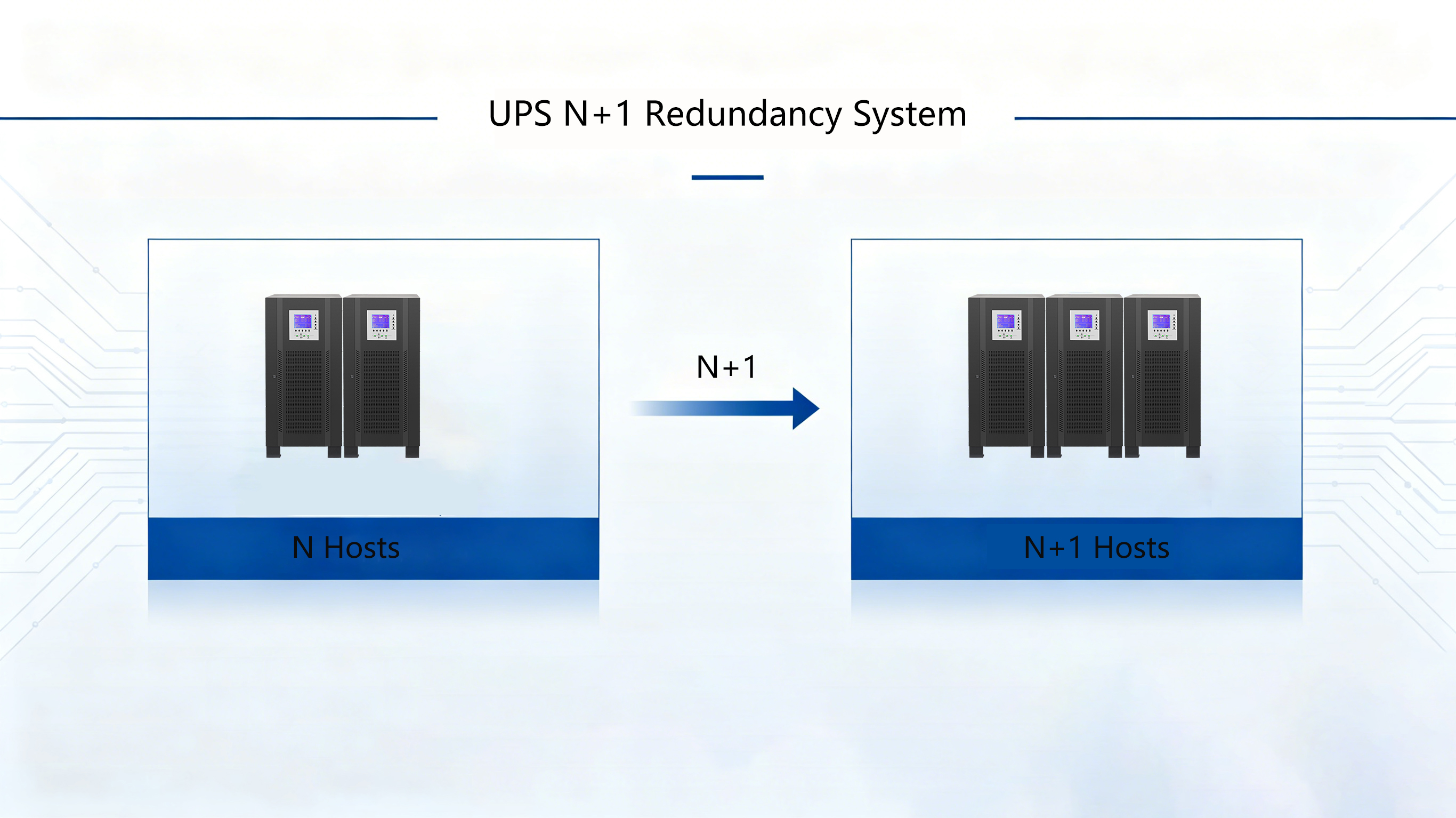

5. Scalability & Redundancy:

• · Modular systems allow capacity expansion without replacing the entire UPS
• · N+1 redundancy (discussed below) is standard for hospitals
• · Hot-swappable modules prevent downtime during battery or component replacement

6. Power Factor Correction: 0.9 or Higher

Reduces harmonic distortion and protects sensitive equipment. Required by IEC 62040 and virtually all hospital power quality standards.

7. Cooling Capability: Online UPS systems generate heat. The UPS room must have adequate cooling, especially for MRI and CT installations which place sustained high loads on UPS systems. Inadequate cooling is a common cause of unexpected UPS shutdown during extended outages.

---

Hospital UPS Capacity Calculation: Three Examples

Example 1: Small Hospital Surgical Suite (3 ORs)

Equipment per OR:

• · Surgical light: 3 kW
• · Anesthesia workstation: 2 kW
• · Electrosurgical unit (ESU): 2 kW
• · Patient monitor: 0.5 kW
• · Suction system: 1 kW
• · Total per OR: 8.5 kW

Calculation:

• · 3 ORs × 8.5 kW = 25.5 kW total load
• · Account for power factor (typically 0.8): 25.5 kW ÷ 0.8 = 31.9 kVA
• · Round to standard UPS size: 40 kVA online UPS
• · Battery runtime: 45 minutes (allows safe procedure conclusion)
• · Estimated cost: $50,000-$70,000

Example 2: Regional Hospital ICU (16-bed unit)

Equipment per bed:

• · Mechanical ventilator: 1 kW
• · Patient monitor (cardiac + vital signs): 0.5 kW
• · Infusion pump system: 0.5 kW
• · Dialysis machine (if applicable): 2 kW (some beds)
• · Average per bed: 2 kW

Calculation:

• · 16 beds × 2 kW = 32 kW + IT systems (5 kW) = 37 kW total
• · Account for power factor: 37 kW ÷ 0.8 = 46 kVA
• · Standard size: 60 kVA online UPS
• · Battery runtime: 30 minutes minimum
• · N+1 redundancy recommended: Two 60 kVA units (one active, one backup)
• · Estimated cost: $80,000-$120,000

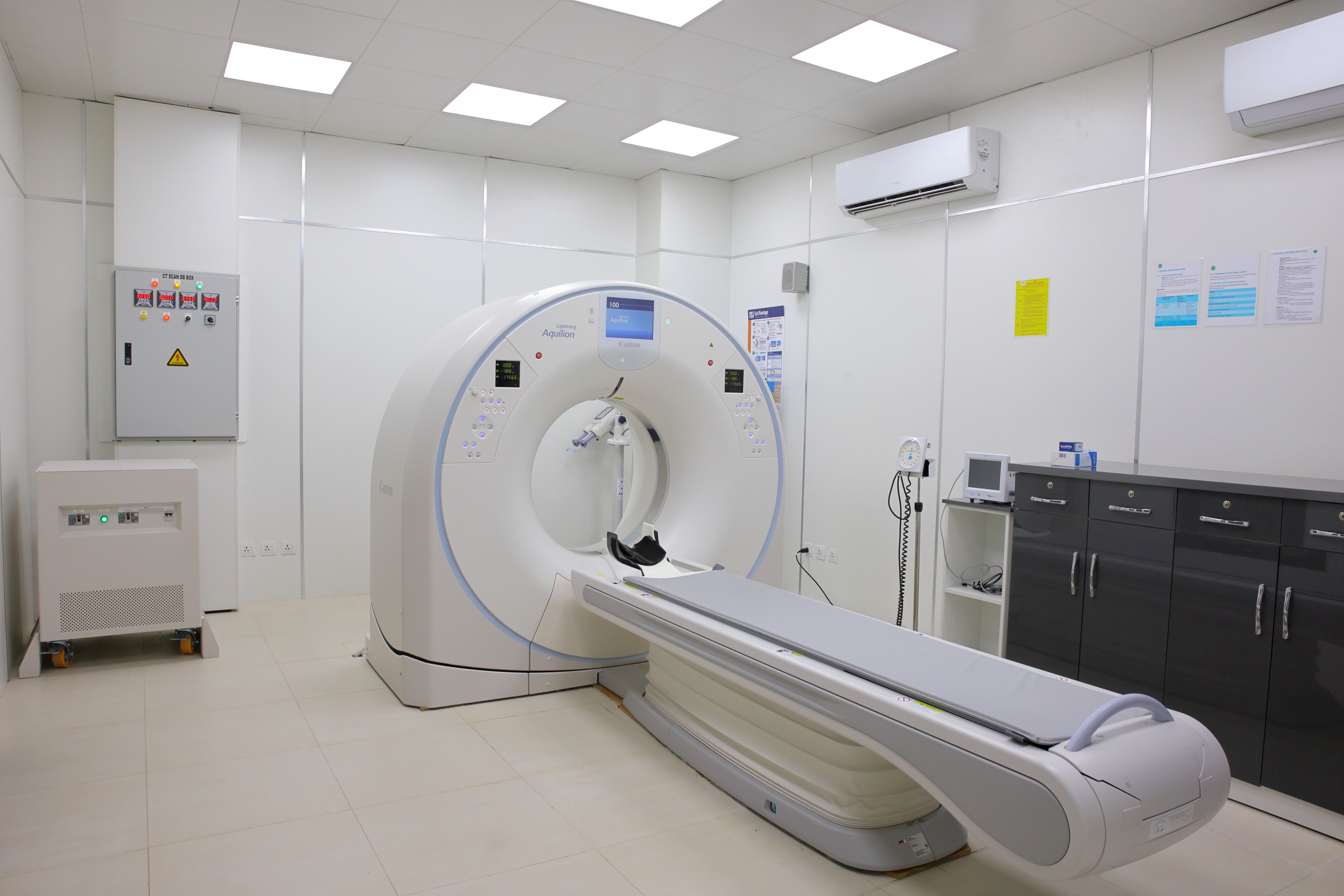

Example 3: Medical Imaging Department (CT + MRI)

Equipment:

• · CT imaging console: 15 kW (variable load)
• · MRI cooling system: 10 kW (continuous, high power draw)
• · PACS archival system: 3 kW
• · Workstations (4×): 2 kW total
• · Total: 30 kW average + 20 kW peak (during imaging)

Calculation:

• · Peak load: 50 kW ÷ 0.85 (imaging equipment power factor) = 59 kVA
• · Standard size: 80 kVA online UPS (accounts for peak imaging load)
• · Battery runtime: 30 minutes minimum
• · Special consideration: MRI cooling CANNOT be interrupted (magnet quench risk)
• · Estimated cost: $100,000-$150,000

---

Table 2: Hospital UPS Sizing by Facility Size

---

Medical Device Compatibility: Critical Testing Checklist

Not all medical equipment operates identically on UPS battery power. Comprehensive compatibility testing is essential before system deployment.

Pre-deployment testing checklist:

✓ Anesthesia workstations — Test backup battery mode. Confirm monitor displays remain bright and responsive. Verify oxygen flow indicators function without artifact. Some older workstations may experience display flicker on certain UPS brands.

✓ Ventilators — Confirm model-specific battery runtime matches your required runtime (many ventilators have limited internal battery). Test that backup battery alarms do not trigger false warnings. Verify that alarm audible/visual cues remain functional during battery operation.

✓ Infusion pumps — Confirm flow rate accuracy on battery power. Some older peristaltic pumps drift by 5-10% on non-pure-sine sources. Test both main unit and battery backup circuits.

✓ Electrosurgical units (ESUs) — Verify no "return pad error" messages during power switch to UPS. Some ESU models are sensitive to power harmonics. Test both cutting and coagulation modes.

✓ Patient monitors — Observe during simulated power-loss event. Confirm waveforms display without glitch. Verify alarms trigger at correct thresholds. Test across all monitoring modes (cardiac, SpO2, EtCO2).

✓ Defibrillators — Test charging circuits on UPS power. Measure actual joules delivered vs. setting. Some defibrillators charge more slowly on battery power (acceptable if confirmed safe).

✓ Imaging systems (CT, MRI, X-ray) — Run full self-diagnostics after simulated power event. Confirm no latent errors in diagnostic data. For MRI, verify cooling system does not interrupt (magnet quench is catastrophic).

✓ Laboratory analyzers — Test specimen integrity on UPS power. Some analyzers have temperature-sensitive reagents that may degrade if analyzer loses power during analysis cycle.

Best practice: Conduct compatibility testing during a scheduled low-census period with clinical engineering and biomedical staff present. Document all findings and maintain compatibility log for future reference.

---

Hospital UPS Failure Scenarios & Prevention

Understanding common UPS failure modes helps procurement teams specify preventive maintenance and redundancy requirements.

Scenario 1: Battery Aging (Most Common)

What happens: Hospital UPS batteries (lead-acid or lithium) degrade over 3-7 years. Capacity decreases, internal resistance increases. During actual outage, battery cannot sustain rated runtime.

Real-world example: 40 kVA UPS specified for 45-minute runtime. After 5 years of operation, battery can only sustain 15 minutes before voltage sag triggers critical load shutdown.

Prevention:

• · Replace batteries on 5-year cycle (industry standard for hospitals)
• · Budget 15-25% of original UPS cost for battery replacement
• · Conduct annual load testing to measure actual runtime capacity
• · Implement quarterly float-charge voltage monitoring

Cost of failure: If runtime insufficient during actual outage, critical equipment shuts down. Single operating room shutdown costs $2,000-$5,000 per hour in cancelled procedures.

Scenario 2: Cooling System Failure

What happens: Online UPS systems generate internal heat. MRI and CT imaging places sustained high loads on UPS systems (15-50 kW continuous). If cooling system fails, UPS internal temperature rises. At critical threshold (typically 65°C), UPS shuts down to prevent component damage.

Real-world example: MRI department runs extended diagnostic session. UPS cooling system fails silently. MRI cooling load continues unabated. After 2 hours, UPS reaches thermal shutdown. Imaging stops; patient in MRI tunnel must be safely withdrawn.

Prevention:

• · Install redundant cooling in UPS room (primary AC + backup cooling)
• · For imaging departments, verify UPS cooling capacity matches peak imaging loads
• · Monthly cooling system inspection during maintenance visits
• · Temperature monitoring with alarming (alert if UPS room exceeds 22°C)

Cost of failure: MRI interruption = emergency room loss ($1,000+/hour), plus emergency maintenance call (nights/weekends = $2,000-$5,000 premium labor).

Scenario 3: Overload During Peak Demand

What happens: Hospital adds new equipment (additional ventilators, dialysis machines, OR lights). Load increases beyond UPS rated capacity. UPS is now running at 95-105% of capacity. During actual power outage, overload causes UPS to shut down instead of sustaining load.

Real-world example: Hospital adds 4 new ventilators to ICU without UPS capacity assessment. Total ICU load increases from 25 kW to 35 kW. Existing 40 kVA UPS is now at 103% rated capacity. During next power outage, UPS cannot sustain load and shuts down.

Prevention:

• · Conduct annual load audits whenever new equipment is added
• · Maintain capacity headroom: target 70-80% utilization (not 95%+)
• · Modular UPS systems allow capacity addition without replacement
• · Implement equipment procurement workflow: IT/Engineering approval before clinical equipment addition

Cost of failure: Critical care outage during actual power event (unrecoverable if no generator) = patient safety incident, potential fatality, regulatory investigation, legal liability.

Scenario 4: Maintenance Neglect

What happens: Scheduled maintenance is deferred or skipped. Battery fluid levels drop, terminals corrode, cooling filters clog. UPS operates in degraded state for months or years without detection.

Real-world example: Hospital budget cuts lead to reduced biomedical maintenance. UPS battery water level not checked for 8 months. Battery cells dry out, internal resistance spikes. During outage, battery provides only 5 minutes of runtime instead of 45 minutes.

Prevention:

• · Establish mandatory maintenance contract with automatic visit scheduling
• · Quarterly battery water level inspection (lead-acid)
• · Monthly cooling filter replacement
• · Semi-annual load testing (verify actual runtime)
• · Annual battery impedance testing (detects aging before failure)

Cost of failure: Unplanned replacement under emergency conditions = $50,000+ premium installation cost + patient care disruption.

Scenario 5: Firmware/Software Vulnerability

What happens: UPS internal software has undiscovered bug or security vulnerability. During actual outage, UPS exhibits unexpected behavior (incorrect voltage regulation, spontaneous restart, incorrect load sharing in redundant systems).

Real-world example: Hospital deploys dual N+1 UPS system. UPS firmware contains timing bug affecting redundancy switchover. During simulated failure test, standby UPS does not properly assume load. Undetected for months.

Prevention:

• · Firmware updates on scheduled maintenance cycle (quarterly or semi-annual)
• · Full commissioning test with failure simulation before deployment
• · Redundant system testing every 6 months (simulate module failure, verify switchover)
• · Vendor security bulletins monitored (request automatic notification)

---

Table 3: Hospital UPS vs. Other Backup Power Solutions

Conclusion: Hospitals must deploy both UPS and Generator. UPS bridges the critical gap during generator startup; Generator sustains extended outages. Neither alone is sufficient.

---

Understanding N+1 Redundancy (Featured Snippet Candidate)

N+1 redundancy is increasingly required in hospital UPS specifications. Understanding this concept is essential for procurement and budgeting.

What N+1 means:

• · "N" = the actual capacity required to sustain all critical loads
• · "+1" = one additional identical UPS module for backup
• · Total installed capacity = 2× the required capacity

Example:

• · Critical load = 40 kW
• · N = 40 kVA UPS
• · N + 1 = Two 40 kVA UPS modules (total 80 kVA installed)
• · Normal operation: Both modules share 50% of load each
• · If one module fails: Remaining module sustains 100% of load

Why hospitals use N+1:

• · If primary UPS fails, secondary UPS maintains power without battery rundown
• · Allows planned maintenance without shutting down critical systems
• · Single point of failure eliminated: if one UPS goes offline, hospital operation is unaffected

Cost impact:

• · N+1 system costs approximately 1.8-2.0× single UPS cost (not 2.0×, due to shared infrastructure)
• · Example: A single 40 kVA UPS = $60,000. N+1 system (two 40 kVA) = $110,000-$120,000
• · Essential tradeoff for mission-critical healthcare applications

Modular vs. Parallel:

• · Modular UPS: Separate modules can be added or removed without stopping operation
• · Parallel UPS: Modules synchronized to share load. Failure of one module = remaining module accepts full load instantly
• · Both architectures support N+1 redundancy

Most modern hospital UPS deployments use N+1 modular architecture to balance cost, redundancy, and operational flexibility.

---

Hospital UPS Procurement Timeline & Compliance Roadmap

Understanding the procurement timeline is essential for facilities planning.

Phase 1: Planning & Assessment (2-3 months)

• · Identify all critical departments and equipment
• · Audit existing power infrastructure (utility feeds, generator, cabling)
• · Calculate total critical load profile
• · Define runtime requirements per department
• · Determine budget and N+1 vs. single UPS decision
• · Engage biomedical engineering and clinical department heads for input
• · Many hospitals require hospital administration board approval before proceeding

Phase 2: Specification Writing (2-4 weeks)

• · Document formal equipment specification with mandatory technical parameters:
  •     · Online double-conversion topology (not standby)
  •     · Zero transfer time (0 ms) switching
  •     · Pure sine wave output
  •     · Battery runtime requirements
  •     · NFPA 99 / IEC 60601-1 / IEC 62040 compliance
  •     · N+1 redundancy configuration (if required)
  •     · Modular vs. parallel architecture decision
  •     · Medical device compatibility certification required

Phase 3: Bidding & Competitive Evaluation (4-8 weeks)

• · Issue formal Request for Proposal (RFP) to 3-5 qualified vendors
• · RFPs typically require:
  •      · Detailed technical specifications
  •      · References from similar hospital installations
  •      · Product liability insurance documentation (increasingly required)
  •      · Service & support SLA (24/7 emergency response)
  •      · Warranty terms and battery replacement cost estimates
  •      · Training and commissioning plan
• · Evaluate bids on technical compliance + price + vendor experience
• · Shortlist top 2-3 vendors for final presentations

Phase 4: Installation & Commissioning (2-4 weeks)

• · Coordinate with hospital IT, clinical engineering, and facilities staff
• · Physical installation of UPS and battery cabinets
• · Electrical integration with existing power infrastructure
• · Configuration of automatic transfer switches and generator integration
• · Full load testing to verify specified runtime
• · Battery conditioning (initial charge/discharge cycle for new batteries)
• · Integration testing with hospital generator and switchover systems
• · Clinical staff training on UPS operation and emergency procedures
• · Documentation and handoff of operations manual

Phase 5: Ongoing Compliance & Maintenance (Annual)

• · Quarterly battery maintenance (water levels, float-charge voltage)
• · Semi-annual load testing (verify actual runtime capability)
• · Annual battery impedance testing
• · Annual full-system commissioning test (simulate failure scenarios)
• · Firmware updates from vendor (quarterly or as released)
• · Budget for battery replacement every 5-7 years

---

Why Hospitals Choose Shanpu UPS

Shanpu specializes in critical power solutions for hospitals, medical imaging centers, surgical facilities, and healthcare infrastructure.

Shanpu UPS Advantages for Hospitals:

1. Online Double-Conversion Architecture

All Shanpu hospital UPS systems use true online double-conversion topology with 0ms transfer time switching. Exceeds NFPA 99 and IEC 60601-1 requirements for life-critical circuits.

2. Modular N+1 Design Modular architecture allows hospitals to:

• · Add capacity without replacing entire system as facility grows
• · Deploy N+1 redundancy: one module online + one as active backup
• · Perform maintenance on individual modules without shutting down critical power

3. Medical Device Certified

Shanpu systems are tested and certified compatible with:

• · Anesthesia workstations (major brands)
• · Mechanical ventilators (all standard models)
• · Patient monitors and cardiac equipment
• · Electrosurgical units
• · Imaging systems (CT, MRI, X-ray)
• · Laboratory analyzers

4. PICC Product Liability Insurance

Shanpu carries RMB 10 million product liability insurance underwritten by PICC (People's Insurance Company of China), one of China's largest insurance institutions. This directly fulfills hospital procurement compliance requirements for large bidding projects and public facility systems.

If UPS equipment causes property damage or equipment failure, PICC insurance covers losses. Hospital is not liable. This is increasingly a requirement in:

• · Government hospital tenders
• · Large public facility bidding
• · Risk management department procurement policies

5. 24/7 Medical Facility Support

Dedicated support team with experience in hospital environments. Emergency response (nights, weekends, and holidays) is included with the maintenance contract. Field-trained technicians understand medical facility critical nature.

6. Hospital Experience

Shanpu has delivered critical power solutions to hospitals, medical imaging centers, surgical facilities, and healthcare networks across Asia and internationally. Portfolio includes:

• · 500+ bed medical centers
• · Surgical suites (OR, imaging, ED)
• · ICU and critical care installations
• · Pharmaceutical manufacturing (GMP compliance)
• · Diagnostic imaging (CT, MRI, interventional radiology)

---

Hospital UPS: Final Checklist for Procurement Managers

Use this checklist before issuing RFP:

✓ Critical load assessment completed (all departments surveyed)

✓ Required runtime per department documented (OR: 45 min, ICU: 30 min, IT: 4+ hr)

✓ NFPA 99, IEC 60601-1, IEC 62040 compliance requirements documented

✓ N+1 redundancy decision made (single vs. dual module configuration)

✓ Budget approved (UPS cost + 5-year battery replacement cycle)

✓ Maintenance plan established (quarterly service, annual testing)

✓ Medical device compatibility list prepared

✓ Generator integration plan documented

✓ Product liability insurance requirement added to RFP (if applicable to facility)

✓ Vendor selection criteria defined (price, experience, support, compliance)

---

Get a Hospital UPS Assessment for Your Facility

Shanpu specializes in critical power solutions for hospitals, imaging centers, surgical facilities, and healthcare networks. We provide:

• Department-by-department load assessment: We survey all critical areas to determine exact UPS requirements
• Compliance-ready specifications: All documentation meets NFPA 99, IEC 60601-1, IEC 62040, and UL 1778 standards
• N+1 modular design options: Scalable systems that grow with your facility
• PICC-insured equipment: Fulfills public facility bidding requirements
• 24/7 medical facility support: Dedicated team for hospitals and healthcare infrastructure

FAQ

Can we use standby UPS instead of online UPS to save cost?

No. A standby UPS has a 4-20 ms transfer time. This violates NFPA 99 requirements for critical circuits and exceeds safe thresholds for ICU/OR equipment. Using a standby UPS in critical care areas exposes the hospital to the following: · Patient safety liability · Regulatory noncompliance · Joint Commission accreditation risk · Inability to pass state health department audits Savings from cheaper UPS (typically $10K-$20K) is far outweighed by compliance and liability risk.

How do we test compatibility with our medical equipment before deployment?

Conduct field testing during low-census periods with biomedical engineering present. Methods: · Simulate power loss during non-critical patient care periods · Observe equipment behavior on UPS battery power · Monitor patient monitors, ventilators, and other equipment for glitches · Run equipment self-diagnostics after power event · Document findings in compatibility log · Request vendor certification if equipment manufacturer has specific requirements Most modern medical equipment works seamlessly on online UPS; however, some older models may exhibit quirks that only field testing reveals.

What is the typical cost of replacing hospital UPS batteries?

Lead-acid battery replacement typically costs 15-25% of the original UPS price. Examples: · 40 kVA UPS: Original cost $60,000 → Battery replacement $9,000-$15,000 · 100 kVA UPS: Original cost $120,000 → Battery replacement $18,000-$30,000 · 200 kVA UPS: Original cost: $250,000 → Battery replacement: $37,500-$62,500 Lithium-ion batteries cost more but last longer (7-10 years vs. 5-7 years for lead-acid). Plan battery replacement in 5-year facility budget cycles.

Can we run the entire hospital on one large UPS?

No. Modern hospitals use distributed UPS architecture: · Separate systems for Operating Rooms · Separate systems for ICU/CCU · Separate systems for the emergency department · Separate systems for Imaging Department · Separate systems for IT infrastructure This approach provides redundancy: if one UPS fails, only that department is affected. A single massive UPS represents a catastrophic single point of failure. Additionally, different departments have different power quality and runtime requirements.

How long does a complete hospital UPS installation take?

Full implementation timeline: · Planning: 2-3 months · Specification: 2-4 weeks · Bidding: 4-8 weeks · Installation: 2-4 weeks · Total: 4-6 months from planning to commissioning Plan accordingly if UPS replacement is needed. Some hospitals schedule installation during planned facility maintenance windows to minimize disruption.

Is PICC product liability insurance required for hospital UPS?

Increasingly yes. Large public hospital systems and government facility bidding now require suppliers to carry product liability insurance from recognized institutions. This is standard in: · Government hospital procurement RFPs · Public facility system tenders · Large medical center capital equipment budgeting · Risk management department requirements Private hospitals may not explicitly require insurance, but competitive bidding often favors suppliers with insurance certification, as it demonstrates commitment to quality and risk management.

What happens if the UPS battery runs out during an actual power outage?

This is why generator backup is essential. UPS provides 30-60 minutes of runtime during an outage. The generator starts within 10-30 seconds and sustains indefinite power. Proper procedure: 1. Power loss detected → UPS activates battery (0ms switching) 2. The hospital executes emergency protocol → Pages generator duty team 3. Generator startup sequence begins → Automatic startup completed within 10-30 seconds 4. Generator load tested and synchronized with UPS 5. UPS batteries begin recharge from generator while sustaining critical loads 6. After 4-6 hours (or utility power restoration), the battery is fully recharged If the generator fails to start or utility restoration is delayed, the hospital has contingency plans: patient transfer protocol, emergency resuscitation equipment, and manual ventilation capability.
