High-Altitude Theater UPS Project: 2×600kVA Modular UPS at 3,650m
A critical-power project engineered for an extreme-elevation theater, where UPS derating, thermal management, redundancy and uninterrupted performance power had to be considered as one integrated system.
Power Protection for a Theater at Extreme Elevation
A theater at 3,650 meters above sea level presents a fundamentally different UPS design challenge from a conventional low-altitude commercial installation. The engineering question is not simply how much nameplate capacity to install, but how much usable capacity remains after altitude conditions, thermal performance, redundancy and real critical-load demand are considered together.
For this project, a 2×600kVA modular UPS architecture was selected to provide a high-capacity and serviceable power platform for performance-critical systems. The design approach focused on stable online power protection and sufficient operating margin under high-altitude conditions.
Why 3,650m Changes Modular UPS Design
As elevation increases, air density decreases. For forced-air-cooled power electronics, thinner air can reduce heat-transfer effectiveness and change the usable operating envelope of the UPS.
ShanPu's 100–1200kVA modular UPS platform specifies a standard operating altitude below 1,500m and requires reduced-rating operation above that level. At 3,650m, system selection therefore has to be based on site-specific usable capacity rather than nominal kVA alone.
Key design principle: altitude, ambient temperature, ventilation, actual load, reserve capacity and redundancy target must be evaluated together before final UPS sizing.
Four Factors That Defined the High-Altitude UPS Architecture
Altitude Derating
Usable continuous-load capability must be evaluated after applying the manufacturer's high-altitude operating requirements rather than assuming full sea-level capacity.
Thermal Management
Equipment-room temperature, ventilation, cabinet airflow and heat rejection become more important because lower air density reduces cooling effectiveness.
Redundancy
A live-performance venue benefits from an architecture that reduces single points of failure and preserves operating continuity during equipment faults or service.
Critical-Load Separation
Performance-critical systems should be separated from non-critical building loads so available UPS capacity is reserved for equipment that cannot tolerate interruption.
Maintenance Access
Modular power stages support more manageable service planning compared with a single monolithic power block.
Future Capacity
The modular architecture creates a more flexible path for future changes in stage lighting, video, control and other performance-related loads.

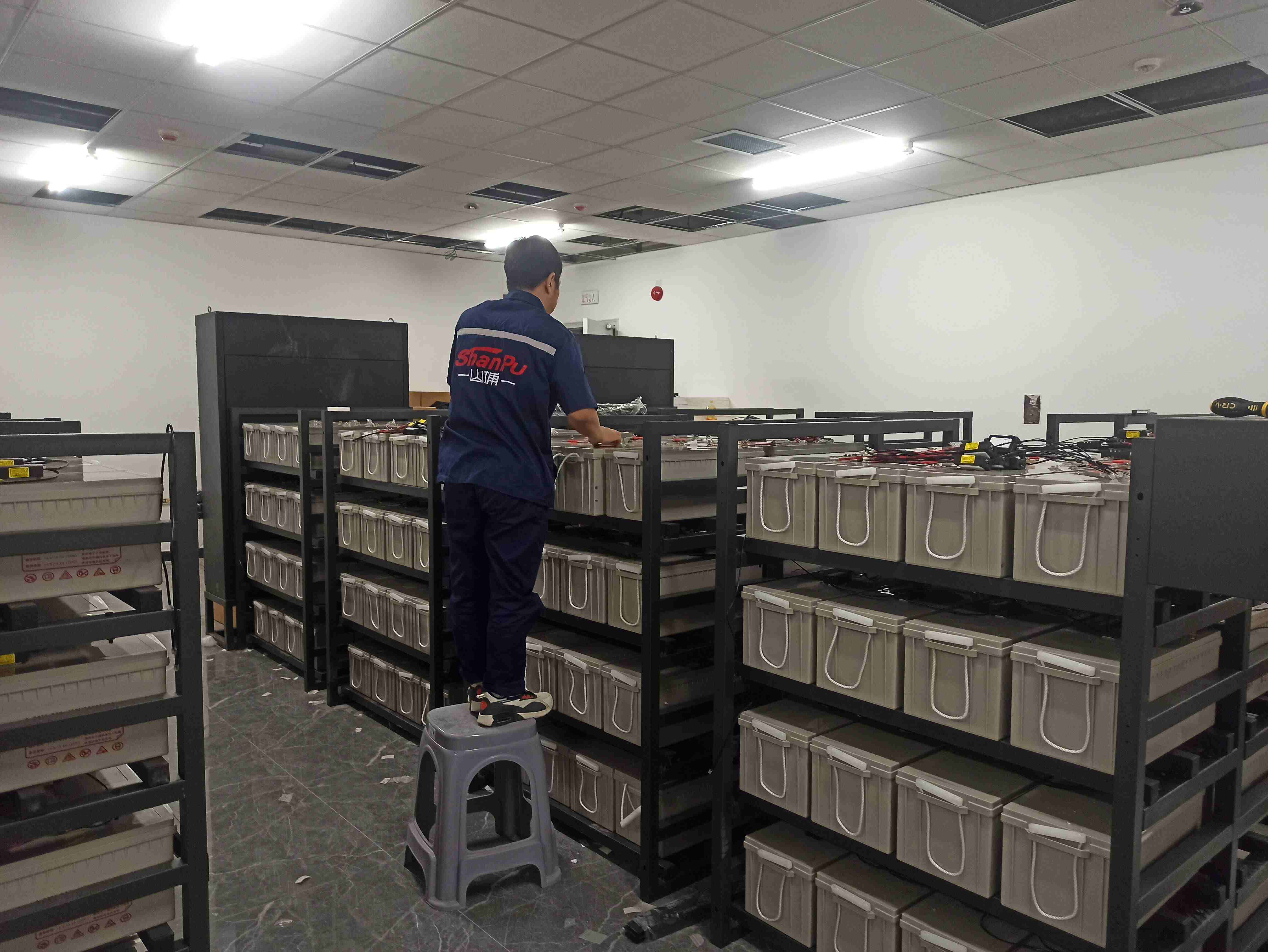

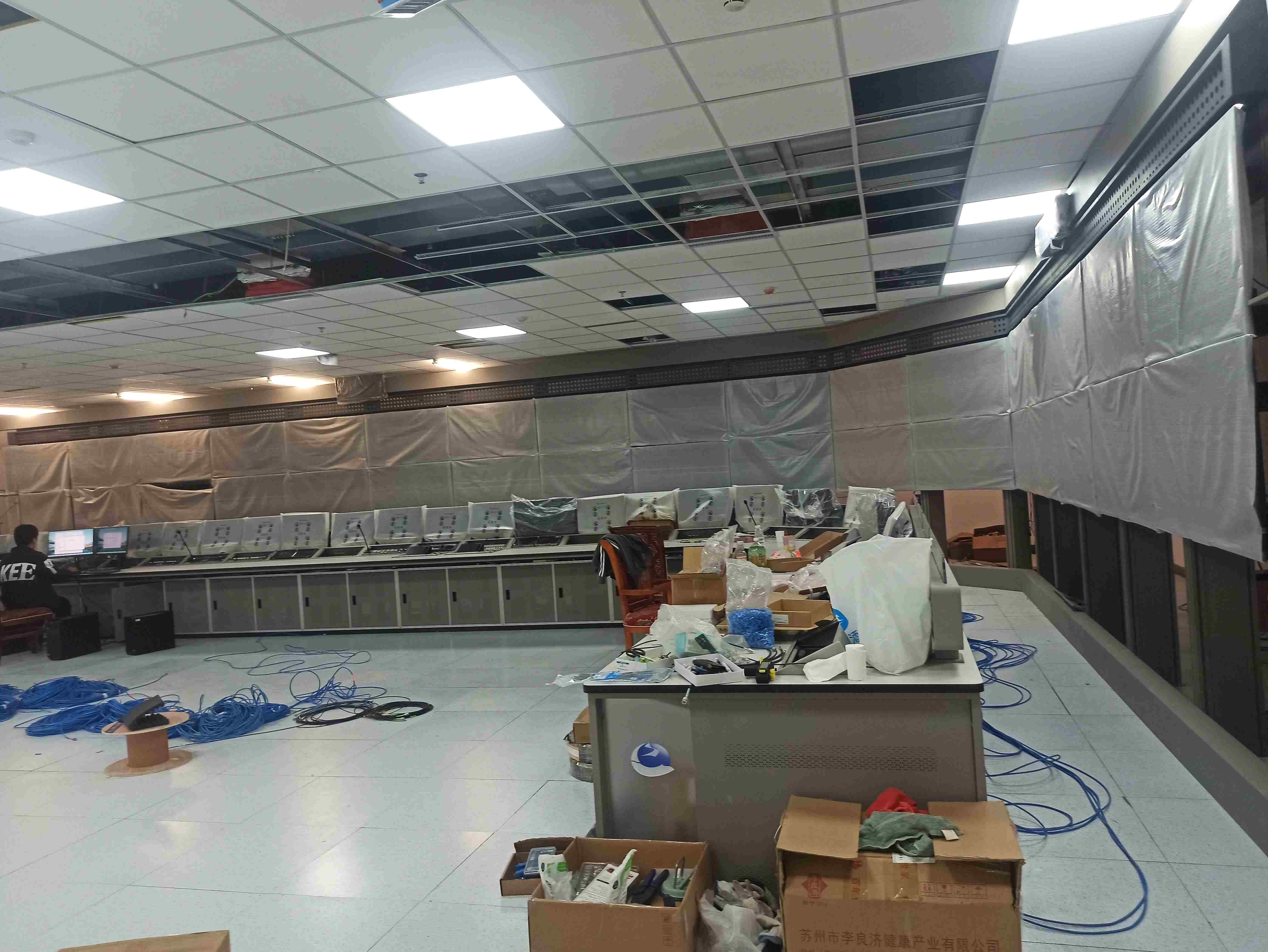

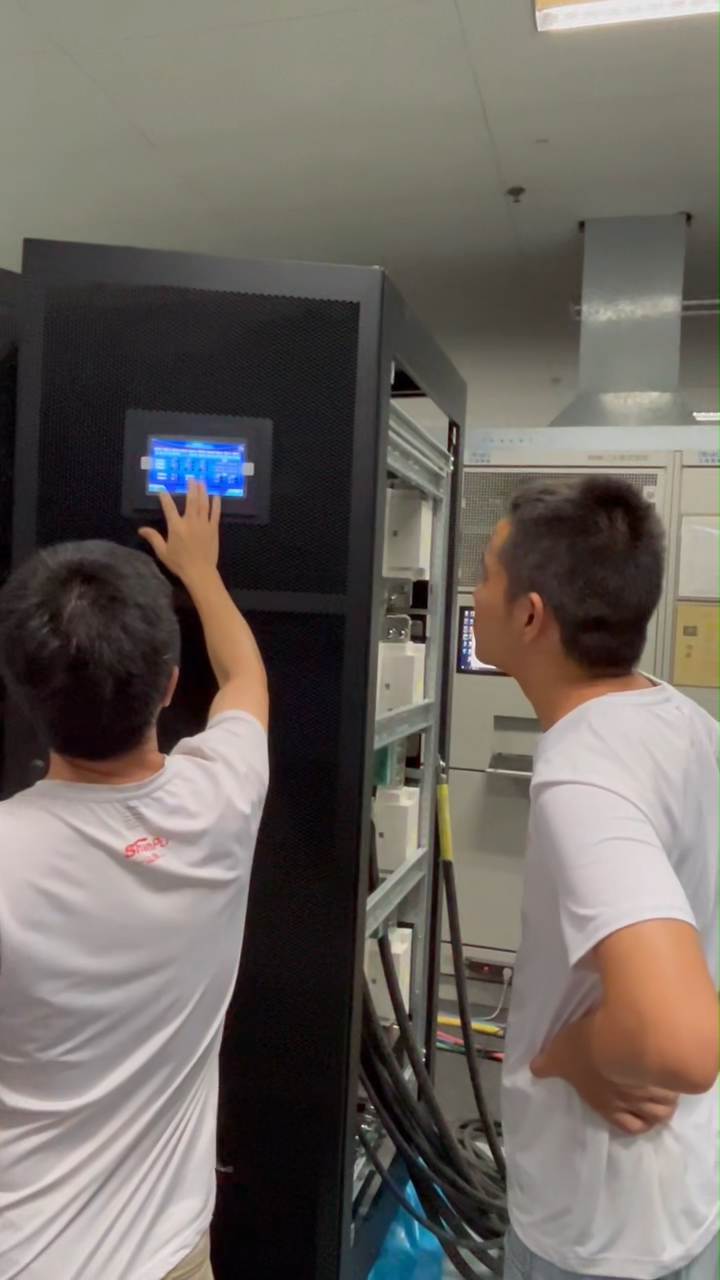

Installation and Equipment Views
Real project imagery strengthens the technical credibility of the case and helps buyers connect the engineering narrative with the actual installation environment.
A Modular Architecture Built Around Capacity Margin and Continuity
The project used two 600kVA modular UPS systems rather than relying on a single fixed-capacity unit. This creates more flexibility when balancing high-altitude derating, load distribution, redundancy and service requirements.
ShanPu's 100–1200kVA modular UPS family uses modular power architecture and supports N+X redundancy. For a venue where an unexpected interruption can affect lighting, sound, video and stage-control systems simultaneously, modular redundancy is an important part of the overall critical-power strategy.
Conceptual Critical-Power Path
How the High-Altitude Conditions Affected System Planning
| Design Area | Why It Matters at 3,650m | Engineering Response |
|---|---|---|
| Usable UPS Capacity | Altitude-related derating can reduce continuous usable capacity compared with low-altitude operation. | Size the system using the derated operating condition, actual critical load and required reserve margin. |
| Redundancy | Live performance environments cannot depend on one unprotected power-conversion path. | Use modular and system-level redundancy planning appropriate to the actual load and operating policy. |
| Cooling & Ventilation | Lower air density can reduce forced-air cooling effectiveness. | Check room temperature, airflow clearance, ventilation and cabinet heat rejection during installation design. |
| Load Prioritization | Not every theater load has the same consequence of interruption. | Separate performance-critical loads from loads that can tolerate shutdown or restart. |
| Monitoring & Maintenance | Unexpected service can be difficult when operational windows are limited. | Include UPS alarms, battery status, load monitoring and planned module maintenance in the operating strategy. |
Why Theater Power Is Different from Ordinary Commercial Loads
During a performance, multiple technical systems operate simultaneously and are often closely synchronized. A brief power disturbance may affect stage-control equipment, audio processing, lighting controls, LED or video infrastructure, control servers and communications equipment.
The UPS design therefore begins with a critical-load map: identify which systems cannot tolerate interruption, which systems can tolerate a controlled restart, and which non-critical loads should remain outside the UPS.
This approach is especially important at high altitude because every unit of usable capacity needs to be evaluated against derating, redundancy and reserve margin.
What the 2×600kVA Architecture Was Designed to Achieve
The completed design established a high-capacity modular UPS platform for a theater operating at 3,650m, with altitude conditions, usable UPS capacity, thermal management and redundancy treated as primary engineering inputs rather than secondary specifications.
The project demonstrates an important principle for high-altitude facilities: UPS systems should not be selected by nominal kVA alone. Installation altitude, actual critical load, ambient conditions, battery requirement, reserve margin and redundancy target all influence the final architecture.
- 2×600kVA modular UPS architecture
- Designed around high-altitude derating requirements
- Redundancy-focused critical-power configuration
- Modular platform for serviceability and expansion
- Online power protection for performance-critical systems
Explore Modular UPS Systems for Critical Facilities
Use the case page to guide engineering buyers toward the commercial pages most closely related to the project.
Planning a UPS System for a High-Altitude Facility?
Before selecting a UPS configuration, confirm the installation altitude, ambient temperature, input and output voltage, actual critical load, future load allowance, required battery autonomy, redundancy target, upstream generator characteristics and equipment-room ventilation.
Providing these inputs allows the UPS configuration to be evaluated around real site conditions rather than nominal product capacity alone.
Get a Site-Specific High-Altitude UPS Recommendation
Send ShanPu your installation altitude, critical-load capacity, voltage, required backup time and redundancy target. Our team can evaluate the project requirements and recommend an appropriate modular UPS configuration.
FAQ
What should be considered when installing a UPS at high altitude?
Three things: ① reserve derating and calibration margin — thin air reduces cooling and component parameters drift, so a sea-level design cannot simply be copied (IEC 62040-3 requires derating above ~1,000–2,000m); ② use crews with high-altitude experience to avoid hypoxia safety and efficiency risks; ③ build schedule and manpower buffers — physical work is much slower at altitude.
Why must theaters and performance venues use a UPS?
Stage lighting, audio, LED walls, ticketing gates and security systems cannot stop for even a second. Grid fluctuation, momentary outages, or voltage sags take all of them down at once. A UPS switches to battery with 0ms transfer during grid anomalies — it is the critical infrastructure for show continuity.
What is a battery electronic monitor? Why monitor UPS batteries cell by cell?
It samples internal resistance, voltage, temperature and health for every cell of a battery bank. Most UPS failures trace back to a single degraded cell, and manual per-cell inspection is slow and error-prone. Per-cell monitoring locates the bad cell in real time — moving operations from reactive repair to proactive warning. It is the standard for high-power, high-reliability sites.
Does UPS power need derating at 3,650m? How was this project sized?
Yes. At altitude, cooling degrades and usable power must be derated. This project used 2 × 600kVA modular UPS + 1 × 250kVA online UPS running independently (not parallel) — meeting the load while leaving expansion headroom; batteries were configured at 32 cells/group, 352 cells total for long backup runtime.
What is ShanPu's UPS transfer time? How is 0ms achieved?
ShanPu UPS uses online double-conversion topology: during grid anomalies the inverter keeps powering the load continuously, so the transfer never interrupts the load (the industry commonly describes this seamless switch as 0ms). Combined with per-cell monitoring's proactive warning, the risk of "voltage sag causes downtime" is minimized.
What are ShanPu's manufacturing and service capabilities?
ShanPu is a power-industry manufacturer with 16 years of experience, an annual production capacity of 100,000+ units, and deployments spanning factories, cultural venues, healthcare, government, and high-altitude/remote regions. From plateau to island, ShanPu turns "no downtime" into a committed capability.
Why should cable and accessories be budgeted separately for high-power UPS projects?
High-power projects use large cable sizes and long runs, plus busbars, breakers, and lugs — a cost item easily missed. ShanPu recommends listing cables and accessories as a separate budget line and helps clients verify it before shipping, so delivery is never blocked by budget shortfalls.
How harmful is voltage sag to performance venues, and how does a UPS prevent it?
Voltage sag (momentary dip or short interruption) is the most common power hazard for venues — and more frequent on high-altitude grids. One sag can kill stage lights, pop the audio, and black out LED walls, stopping the show. ShanPu's online UPS uses double conversion, so the inverter seamlessly takes over with 0ms transfer — eliminating sag impact on the performance. Meanwhile, per-cell monitoring guarantees the batteries can take over instantly when a sag hits — no "UPS wants to ride through but the battery fails" scenarios.
